Deif AGC-4 Mk II Designers Handbook

Running feedback

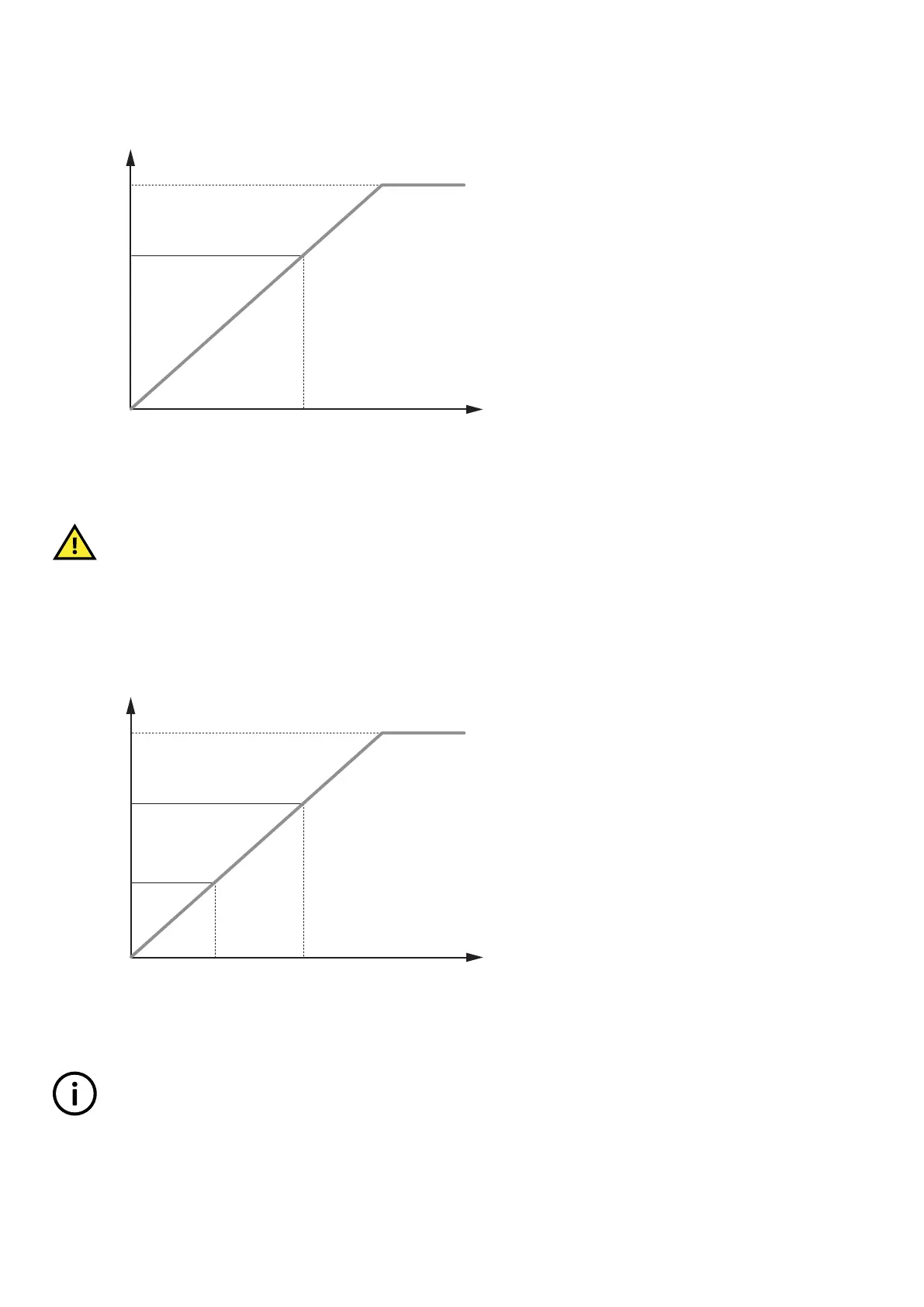

The diagram below shows how the running feedback is detected at the firing speed level. The factory setting is 1000 RPM (6170
Running detect.).
t
RPM
Firing speed
RPM
NOM
Running
feedback
menu 6173
RPM
CAUTION
Notice that the factory setting of 1000 RPM is higher than the RPM level of starter motors of typical design. Adjust this
value to a lower value to avoid damage of the starter motor.
Remove starter input
The drawing below shows how the set point of the remove starter is detected at the firing speed level. The factory setting is 400
RPM (6170 Running detect.).
t
RPM
Firing speed
Running
RPM
NOM
Running
feedback
menu 6173
Remove
starter
menu 6174
RPM
INFO
The number of teeth on the flywheel must be adjusted in menu 6170 when the MPU input is used.
DESIGNER'S HANDBOOK 4189341275A EN Page 101 of 196
