RUN
Run. feedback
Alarms active
INFO
The timer is ignored if digital running feedback is used.
6.24 Event log
6.24.1 Logs
The logging of data is divided in three different groups:
• Event log containing 500 entries.
• Alarm log containing 500 entries.
• Battery test log containing 52 entries.
The logs can be viewed in the display or in the PC utility software. When the individual logs are full, each new event will overwrite
the oldest event, using the "first in - first out" principle.
6.24.2 Display

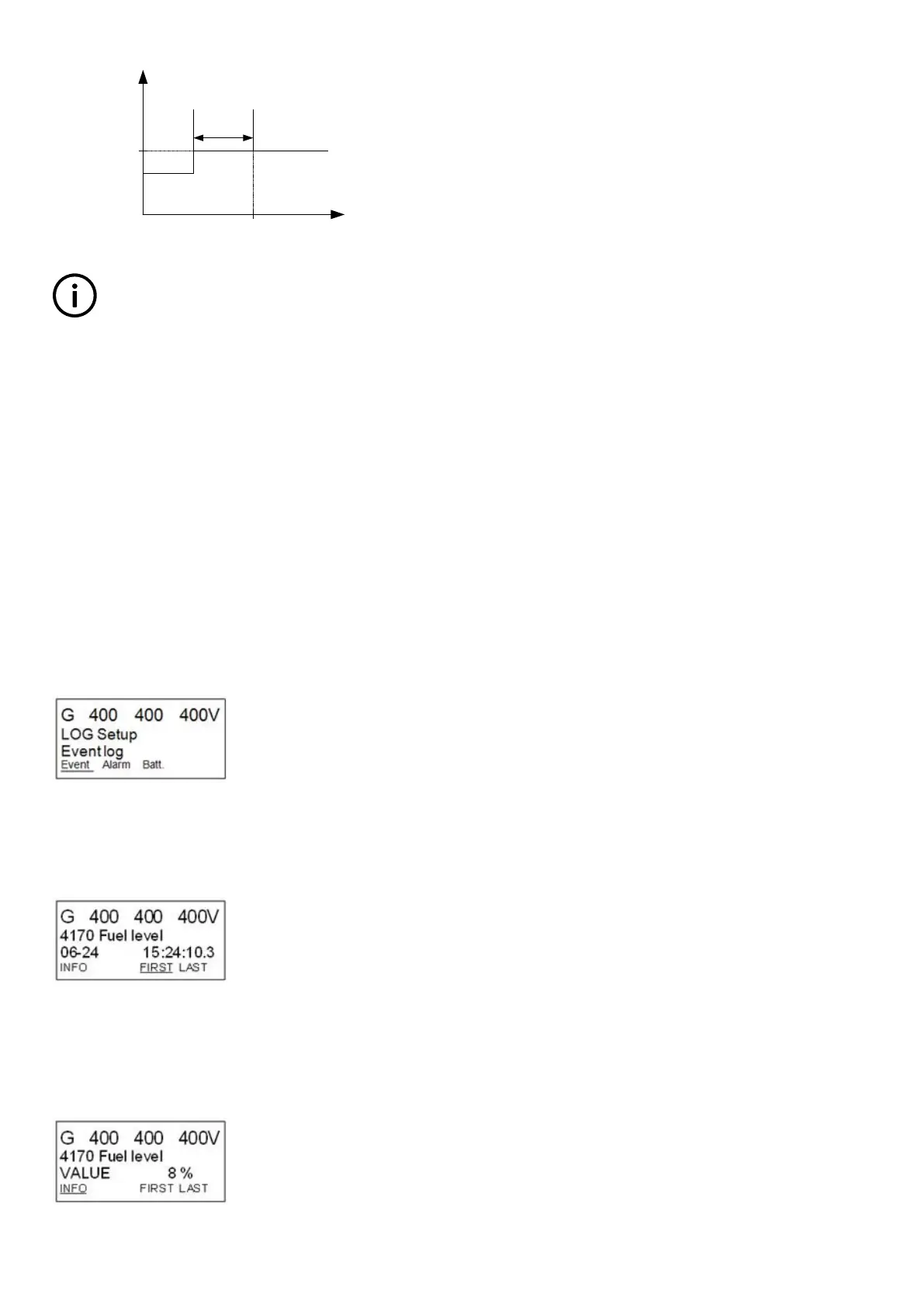

In the display it looks like this when the "LOG" push-button is pressed:
Now it is possible to select one of the three logs.
If the "Event" is selected, the log could look like this:
The specific alarm or event is shown in the second line. In the example above the fuel level alarm has occurred. The third line shows
the time stamp.
If the cursor is moved to "INFO", the actual value can be read when pressing "SEL":
