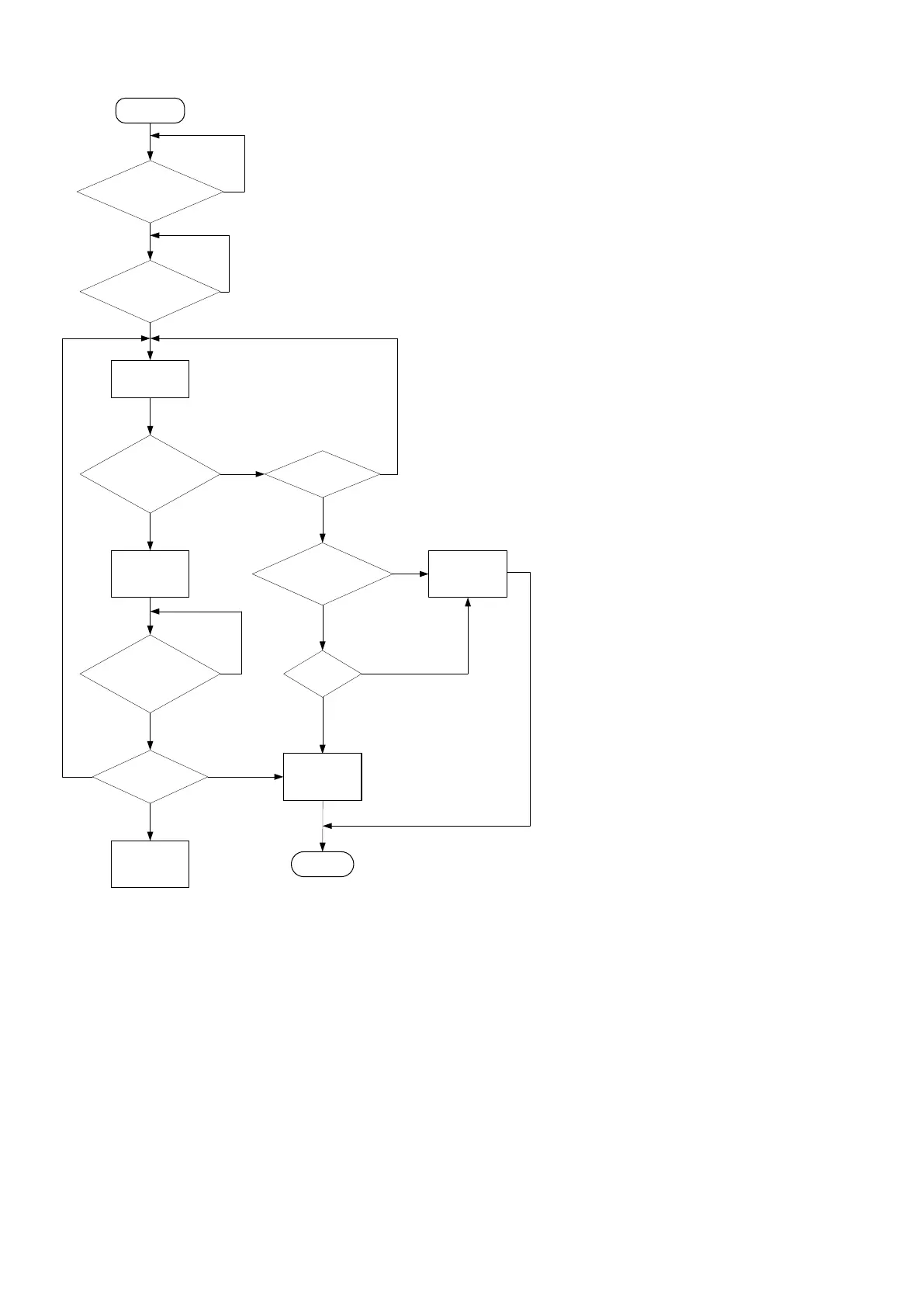

2.8.5 Start sequence
Start
Start prepare
timer
Stop relay timer
timed out
Off relay
ON
End
No
No
Yes
Start condition
OK
No
Yes
Max start
attempts
Ready to
close GB
Yes
No
Yes
Start relay timer
timeout
Yes
No
Start relay
ON
Start failure
alarm
Alarm
F/U OK
Run feedback
detected
Genset started
No
Yes
No
No
Yes
Yes
DESIGNER'S HANDBOOK 4189341275A EN
