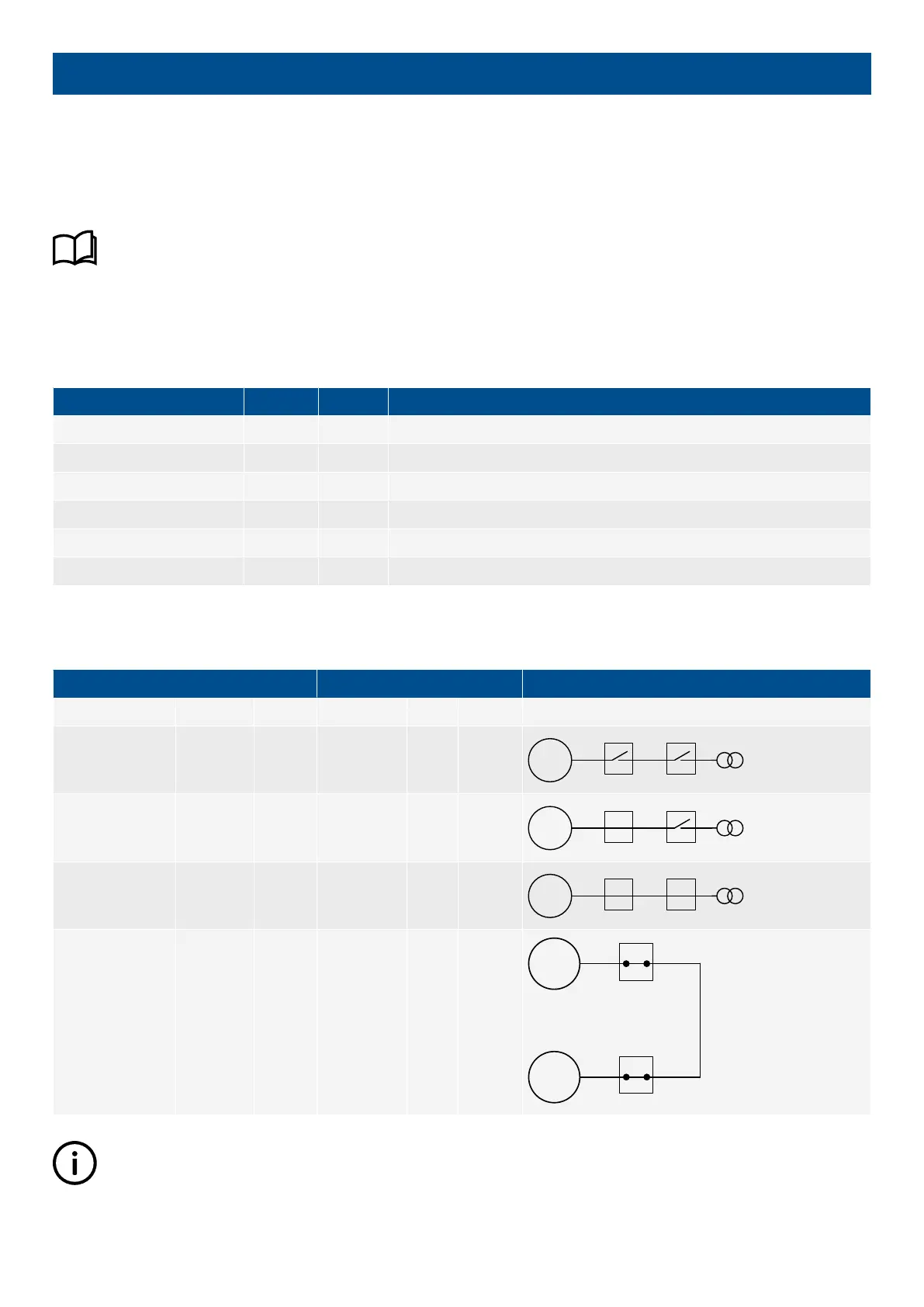

4. PID regulator for governor and AVR
4.1 Description of PID controller
The AGC includes a PID controller for governor and AVR regulation. It consists of a proportional regulator, an integral regulator and
a derivative regulator. The PID controller is able to eliminate the regulation deviation and can easily be tuned in.
More information
See General Guidelines for Commissioning.
4.2 Controllers
There are three controllers for the governor control and three controllers for the AVR control.
Controller
GOV AVR Comment
Frequency X Controls the frequency
Power X Controls the power
P load sharing X Controls the active power load sharing
Voltage X Controls the voltage
VAr X Controls the power factor
Q load sharing X X Controls the reactive power load sharing
The table below indicates when each of the controllers is active. This means that the controllers can be tuned in when the shown
running situations are present.
Governor
AVR Schematic
Frequency Power P LS Voltage VAr Q LS
X X
X X
X X
X X
INFO
The load sharing mode depends on option G5 (power management) and whether hardware option M12 is installed (for
analogue load sharing).
DESIGNER'S HANDBOOK 4189341275A EN Page 75 of 196
