6.6.4 Fan output

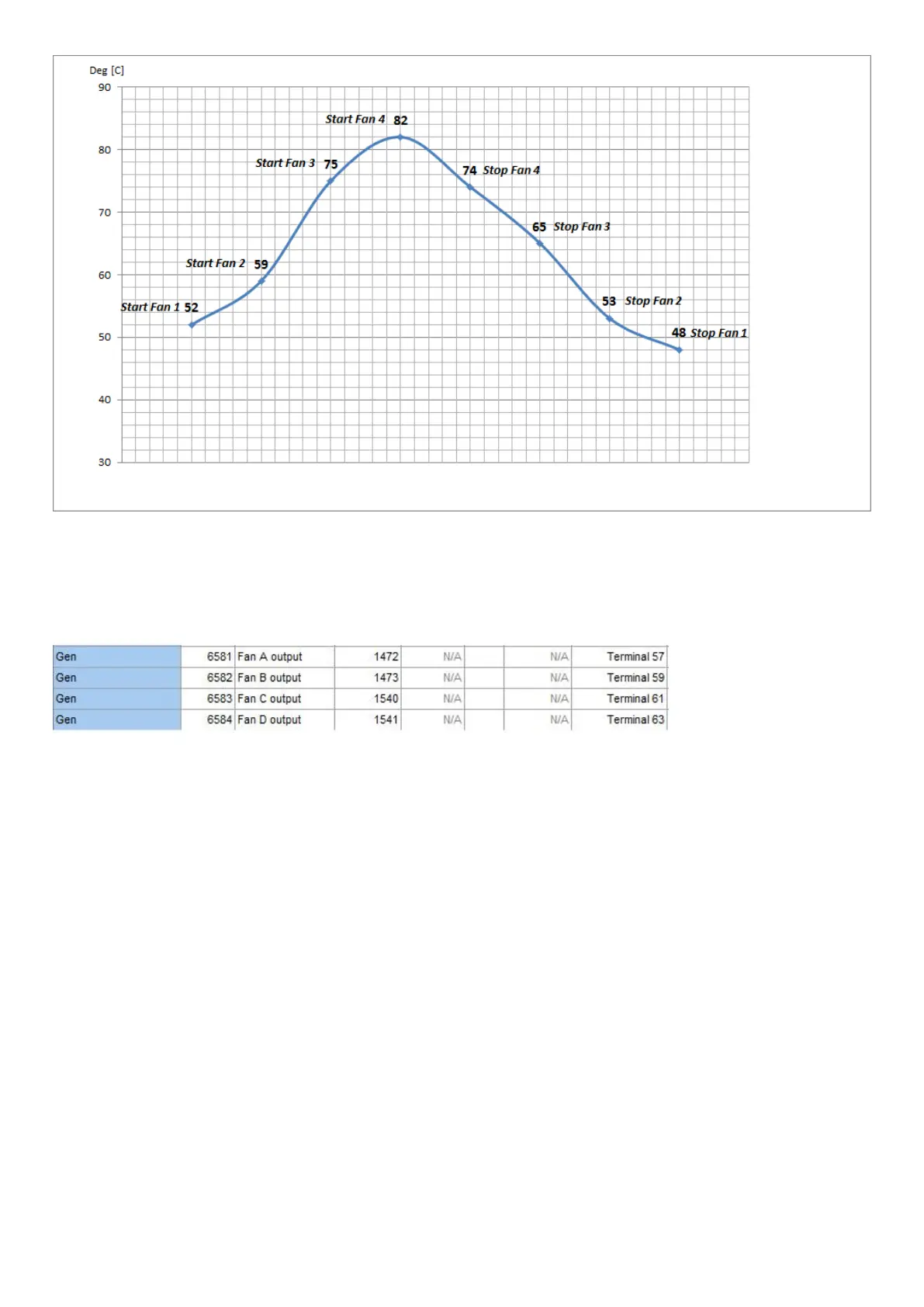

At parameter 6581 to 6584, the output relays for fans A to D are selected. The purpose of these relays is to issue a signal to the fan
starter cabinet. The relay must be energised for the fan to run.
6.6.5 Fan start delay
If two or more fans are requested to be started at the same time, it is possible to add a start delay between each fan start. The
reason for this is to limit the peak start current, so all fans will not contribute with a start current at the same time. This delay is
adjusted in the menu 6586.
DESIGNER'S HANDBOOK 4189341275A EN Page 119 of 196
