Deif AGC-4 Mk II Designers Handbook

6.1.3 Oil pressure
The multi-inputs on terminals 102, 105 and 108 can be used for the detection of running feedback. The terminal in question must be
configured as a RMI input for oil pressure measurement.
When the oil pressure increases above the adjusted value (6175 Pressure level) then the running feedback is detected and the start
sequence is ended.
Running feedback
t
RPM/Oil pressure
Firing speed
RPM
NOM
Run. detection
Oil pressure
menu 6175
RPM
Remove starter input

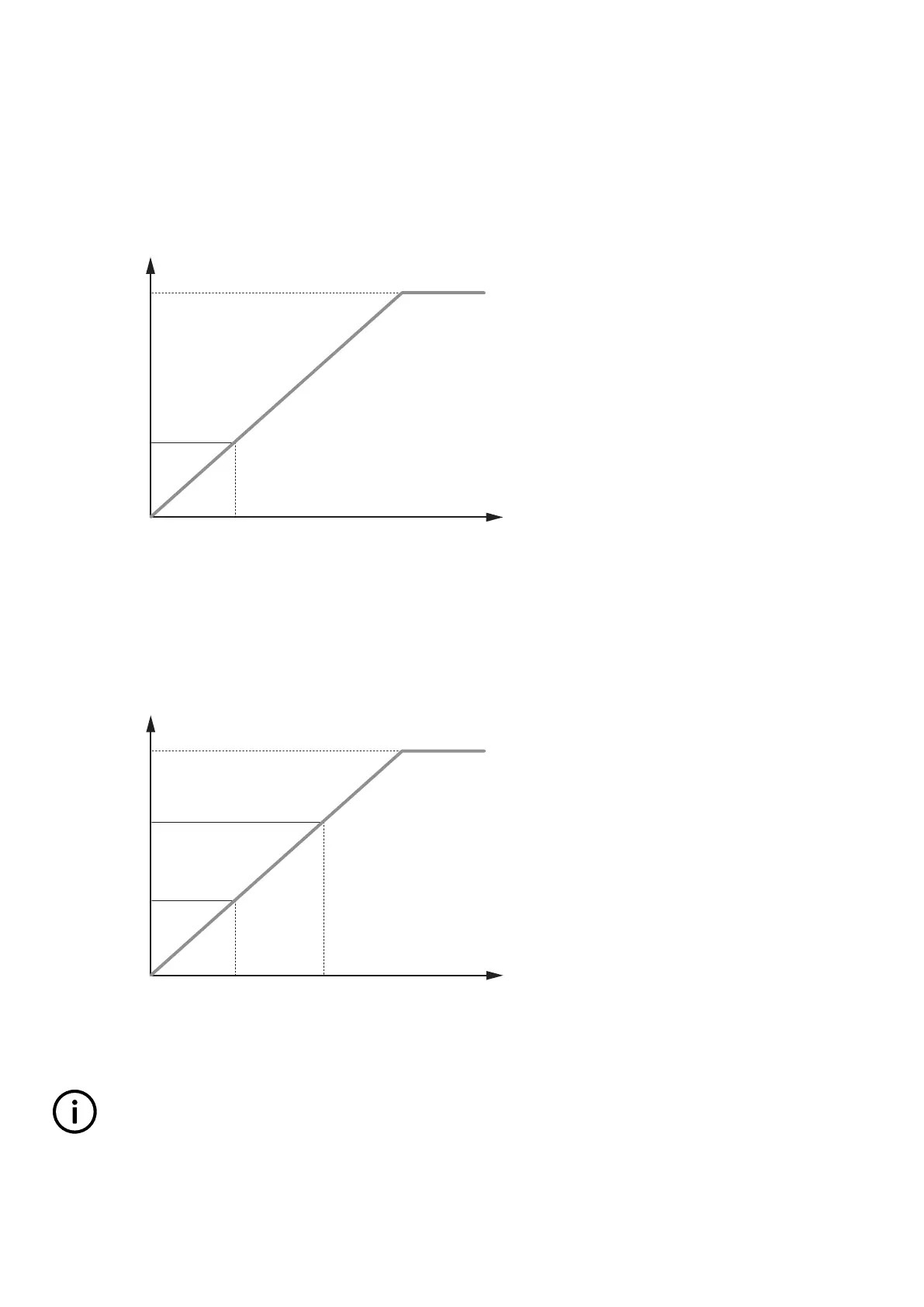

The drawing below shows how the set point of the "remove starter input" is detected at the firing speed level. The factory setting is
400 RPM (6170 Running detect.).
t
RPM/Oil pressure
Firing speed
Running
RPM
NOM
Remove
starter
menu 6174
RPM
Run. detection
Oil pressure
menu 6175
INFO
The remove starter function can use the MPU or a digital input.
DESIGNER'S HANDBOOK 4189341275A EN Page 102 of 196
