Battery test
Start failure alarm
1 2
3
X + Start Sequence
Start Prepare
(3 start attempts)
Start relay
Stop coil relay

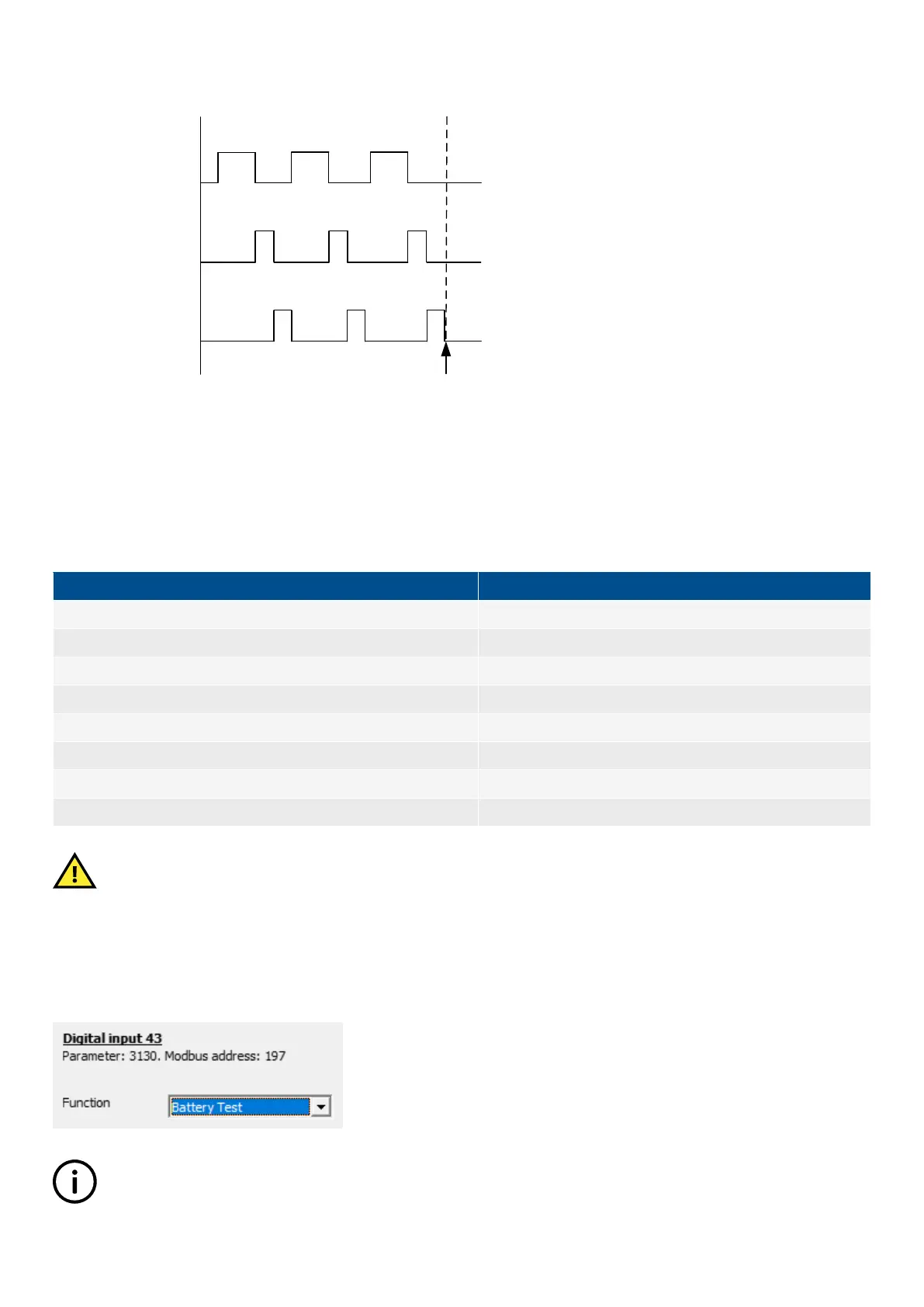

A battery test configured as X + Start sequence, as shown in the above example, will use: Start prepare timer, Start on time and
Start off time. In this example, the genset will crank three times with Start prepare and Start off time delay in between each crank.
When the test has finished, a start failure alarm will be present.
If at any point the battery voltage is lower than the set point Battery test (parameter 6411), the test will be cancelled.
Description
Comments
Battery test (parameter 6411) Minimum voltage level
Battery test (parameter 6413) Set point: X + Start sequence
Battery test (parameter 6415) Enable/disable
Battery test (parameter 6416) Fail class
Start Prepare (parameter 6181) Timer before crank
Start on Time (parameter 6183) Start relay ON timer
Start off Time (parameter 6184) Stop coil relay ON timer
Start attempts (parameter 6190) Number of start attempts
CAUTION
For normal operation, the start failure alarm must be acknowledged after the test has ended.
6.34.1 Input configuration
If this function is to be used, it is necessary to configure a digital input that initiates the function. This is done in the dialogue box
below.
INFO
If AUTO mode is selected, the mains failure sequence will be initiated if a mains failure occurs during the battery test.
DESIGNER'S HANDBOOK 4189341275A EN Page 154 of 196
