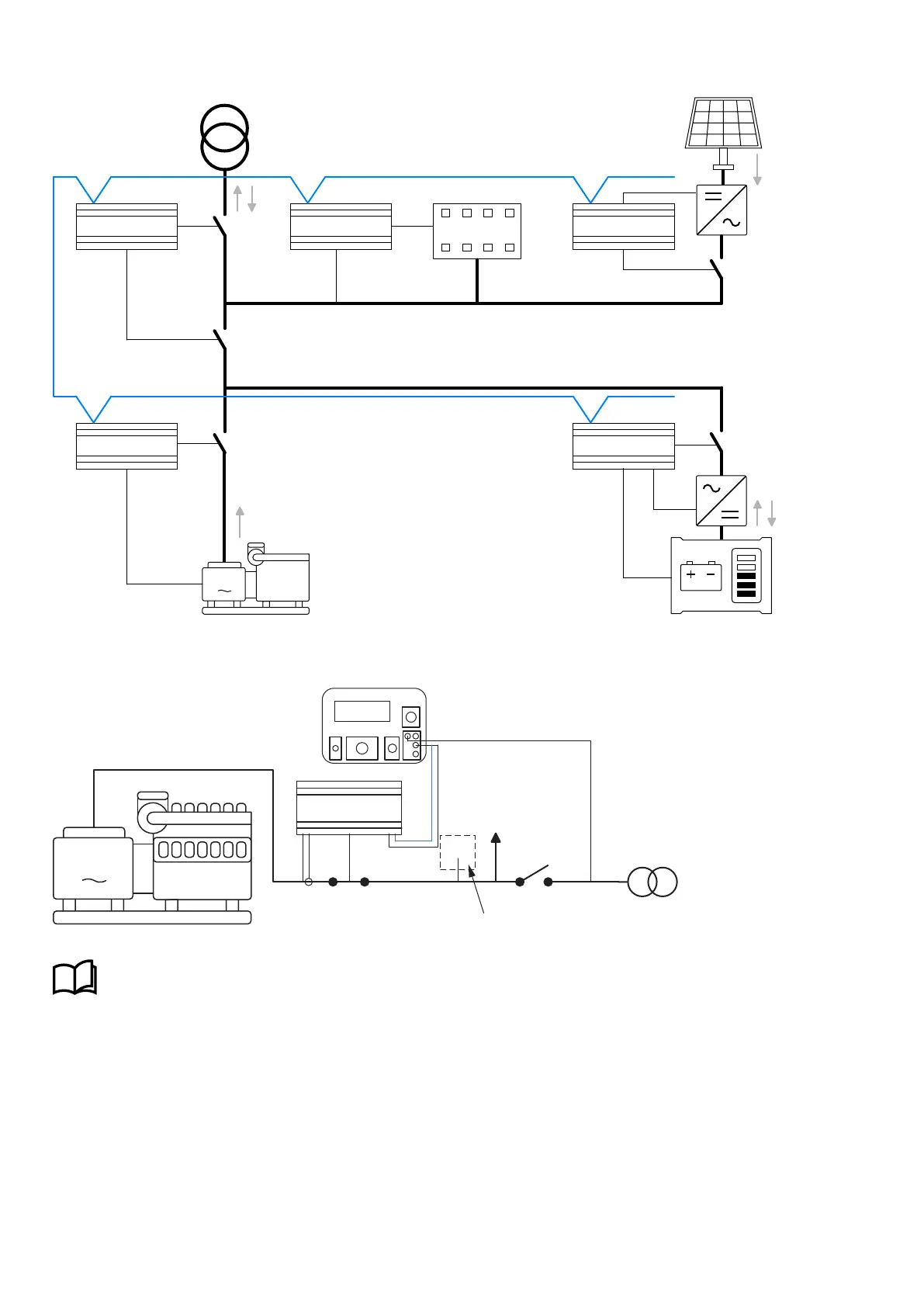

2.7.5 Energy management system
G
ASC Battery
ASC Solar
AGC Genset
CAN bus
AGC Mains
ALC
1
2
3
4
5
6
7
8
2.7.6 Remote maintenance
G
Load
AGC Genset
Relay
More information
See the
Operator
’
s manual
of the remote maintenance box for more information.
2.8 Flow
char
ts
Using flowcharts, the principles of the most important functions will be illustrated in the next sections. The functions included are:
•
Mode shift
•
MB open sequence
•
GB open sequence
•
Stop sequence
•
Start sequence
DESIGNER'S HANDBOOK 4189341275A EN
Page 37 of 196
36
38
