Deif AGC-4 Mk II Designers Handbook

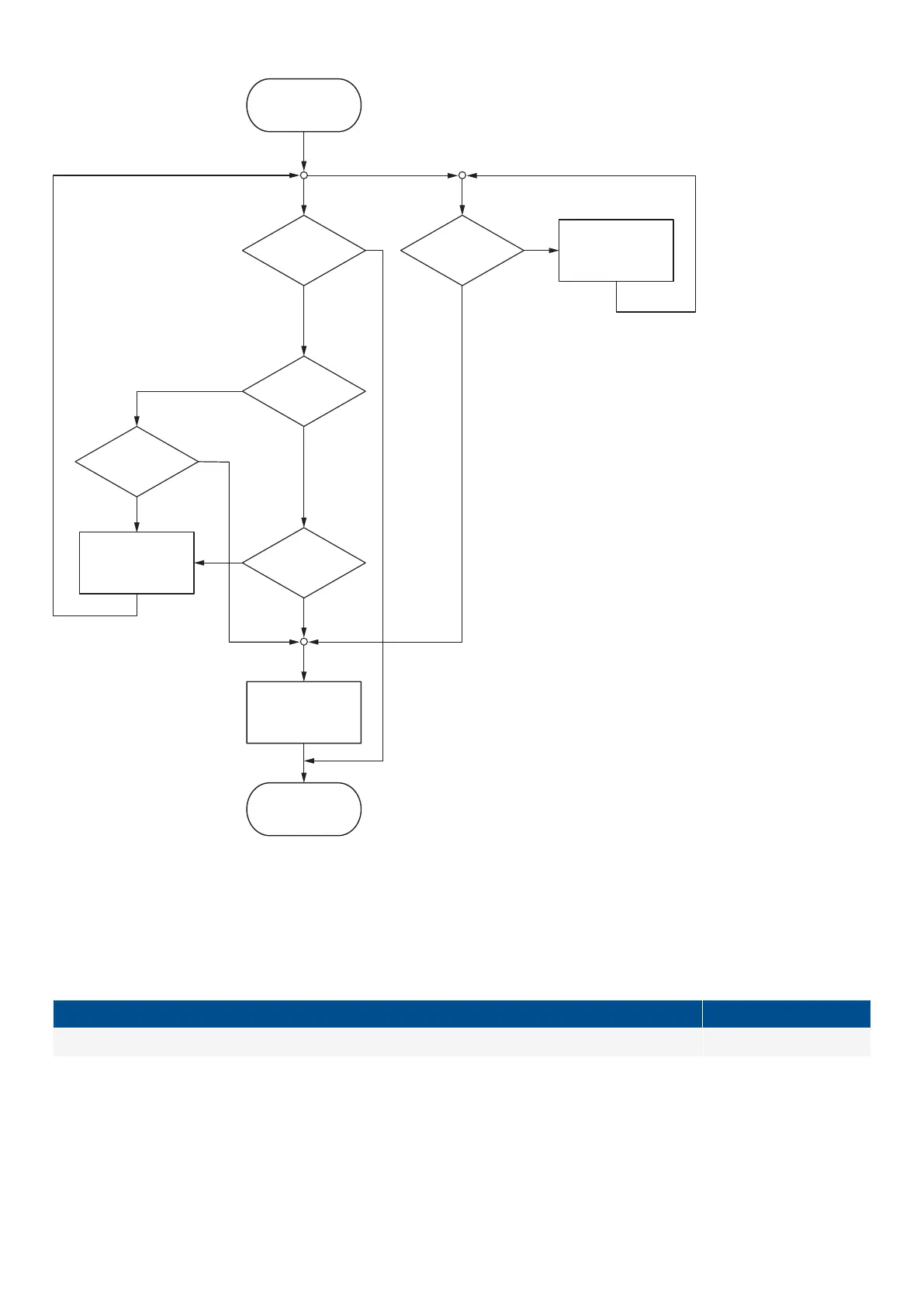

Stop
Start
End
No
Idle timer on
Low speed
ON
Yes
No
Yes
No
Temp.
control
OFF
Auto
start/stop
OFF
Genset running
at Nom. speed
No
No
Yes
Idle timer
expired
Yes
Yes
Genset stop
sequence
Genset running
at idle speed
6.4 Analogue load sharing
If hardware option M12 is installed, the controller can use analogue load sharing lines to share the load equally (as a percentage of
the nominal power). Analogue load sharing can be used for both the active and/or the reactive load.
ANSI number
Function
ANSI no.
Analogue load sharing between gensets 90
When is analogue load sharing active?
Analogue load sharing is active automatically when:
• The mains breaker is open and the genset breaker is closed. That is, the connected genset is not parallel to the mains (island
operation).
◦ You can use M-Logic to disable analogue load sharing.
DESIGNER'S HANDBOOK 4189341275A EN Page 110 of 196
