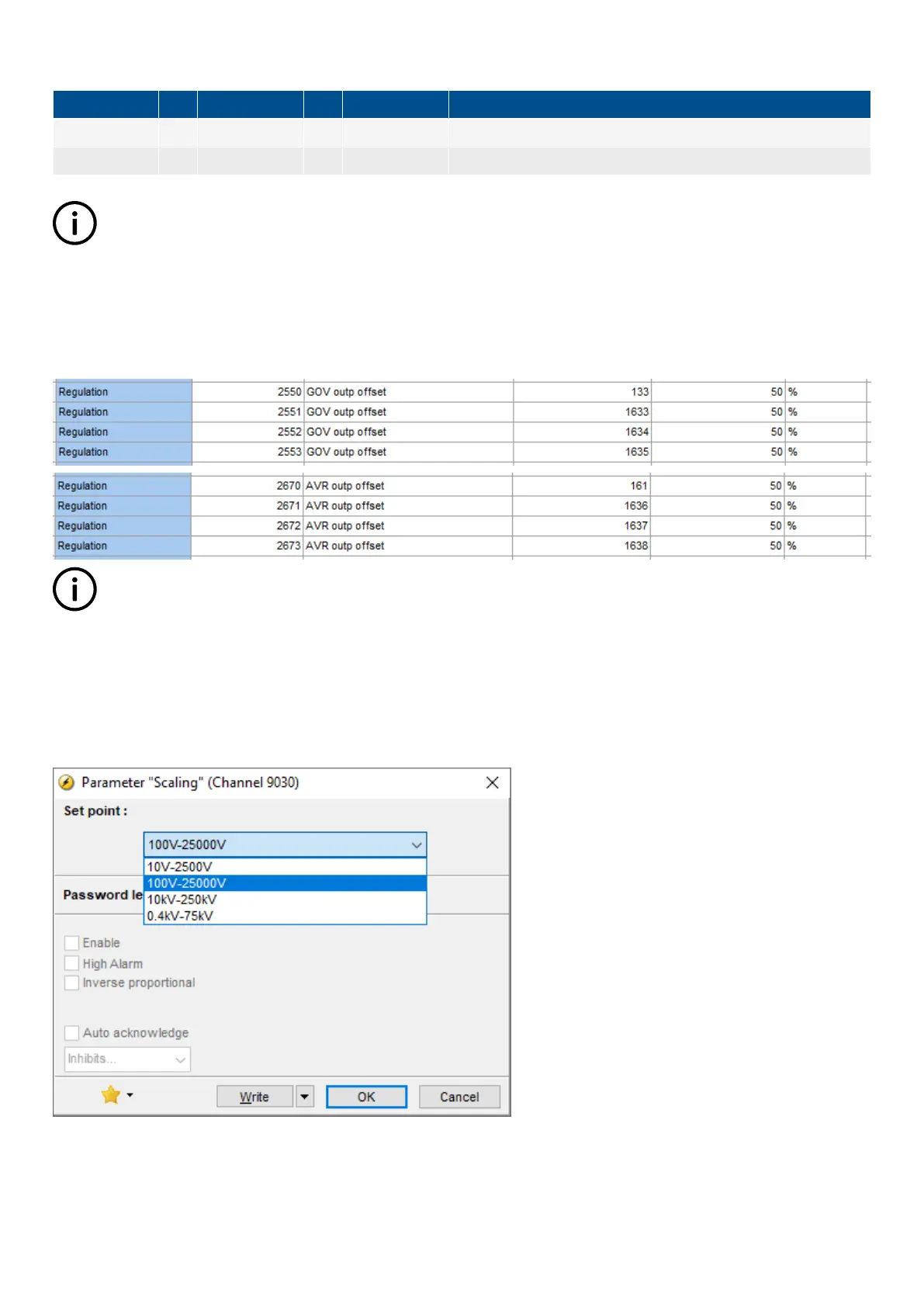

Table 2.2 AOP example
Event A Event B Event C Output
Button07 or Not used or Not used Command Parameter set, Set parameter 1
Button08 or Not used or Not used Command Parameter set, Set parameter 2
INFO
See the Help file in the PC utility software for details.
Four nominal settings of GOV/AVR offsets
Use menu 6006 to select the required set of nominal settings (1 to 4 ). The nominal setting of GOV/AVR offset follows the setting in
6006, meaning: nominal setting 1 (6001 to 6005) follows the GOV/AVR offset in 2550.
INFO
Switching between the two BB nominal settings (6050 and 6060) is done in the same way as explained above (channel
6054).
2.3.2 Scaling
The default voltage scaling is 100 V to 25000 V (parameter 9030). To handle applications above 25000 V or below 100 V, adjust the
input range so it matches the actual value of the primary voltage transformer. Master password level access is required to change
this parameter.
Changing the voltage scaling changes the ranges for voltage, power and transducer output parameters.
