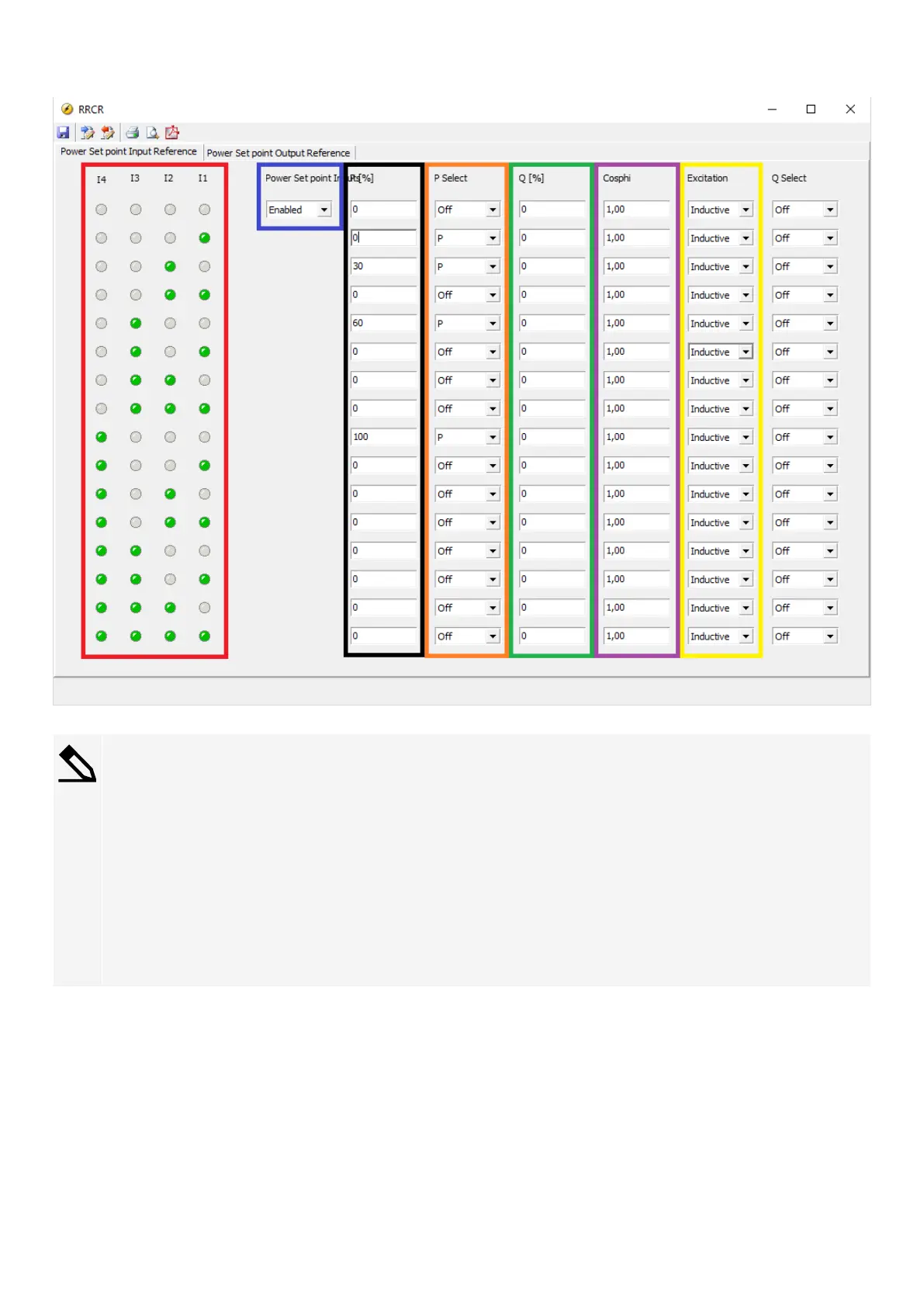

Figure 6.3 Example of RRCR for power set point inputs
RRCR Power set point inputs example
As the figure shows, the power set point inputs for RRCR are enabled.
When only input 1 is activated, the controller power set point is 0 %.
When only input 2 is activated, the controller power set point is 30 %.
When only input 3 is activated, the controller power set point is 60 %.
When only input 4 is activated, the controller power set point is 100 %.
For all other RRCR input combinations, the controller power set point is 0 %.
The RRCR inputs do not control the Q or cosphi set point.
The 16 input combinations are shown on the left of the window (red box). You cannot change these.
RRCR is Enabled (Disabled by default) using Power Set point Inputs (blue box).
For each input combination, under P [%] (black box), choose the required power set point.
Under P Select (orange box), select P for the controller to use P [%] as the set point for regulation. If P Select is Off, that RRCR
input combination cannot be used for the power set point.
DESIGNER'S HANDBOOK 4189341275A EN Page 139 of 196
