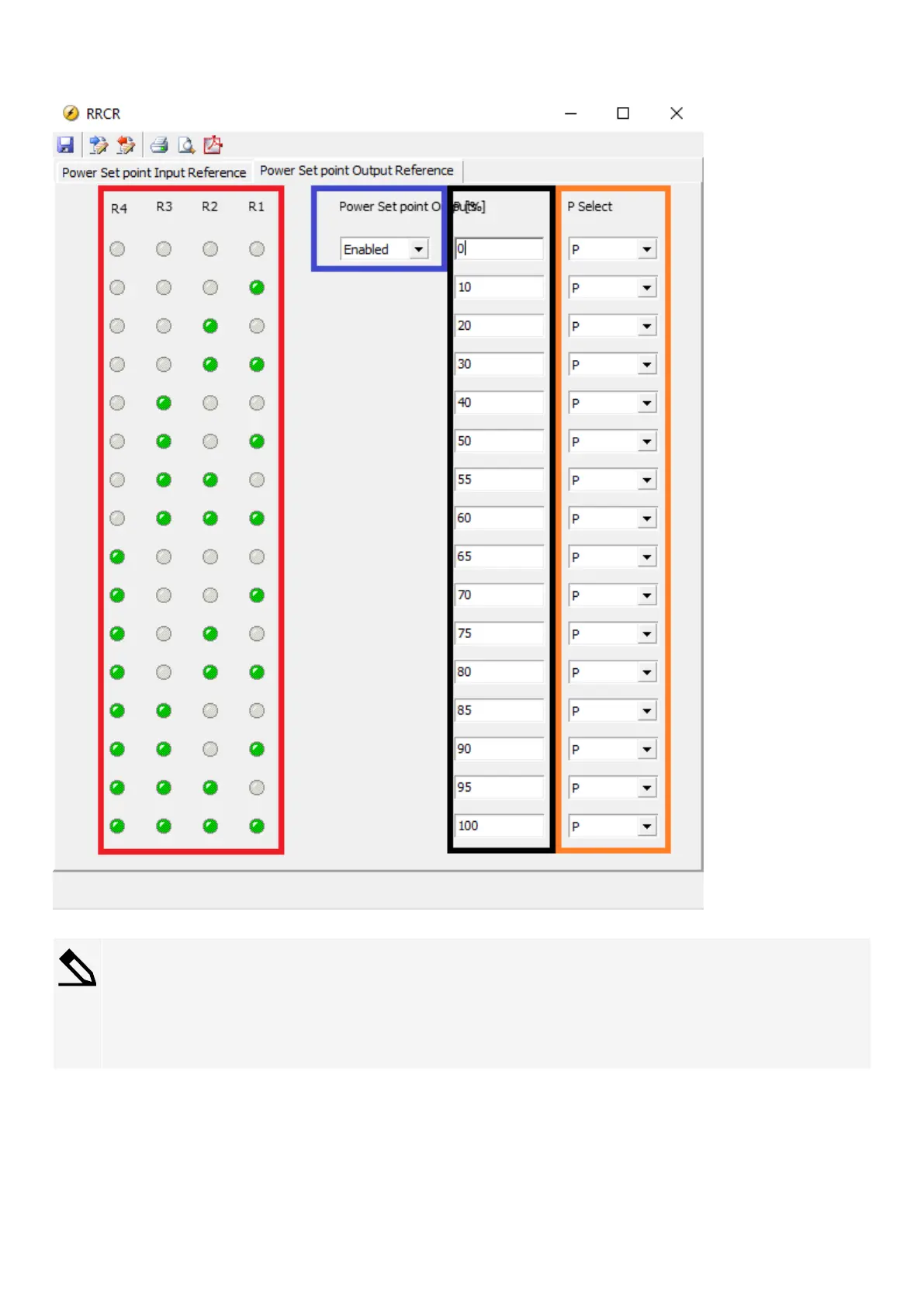

Figure 6.5 Example of power set point outputs for RRCR
RRCR Power set point output example
As the figure shows, the power set point output for RRCR is enabled.
If the controller power set point is 30 to 39 %, R1 and R2 are activated.
If the controller power set point is 40 to 49 %, R3 is activated.
On the left, the 16 output combinations are shown (red box). You cannot change these.
RRCR is Enabled (Disabled by default) using Power Set point outputs (blue box).
For each output combination, under P [%] (black box), select the power set point.
DESIGNER'S HANDBOOK 4189341275A EN Page 141 of 196
