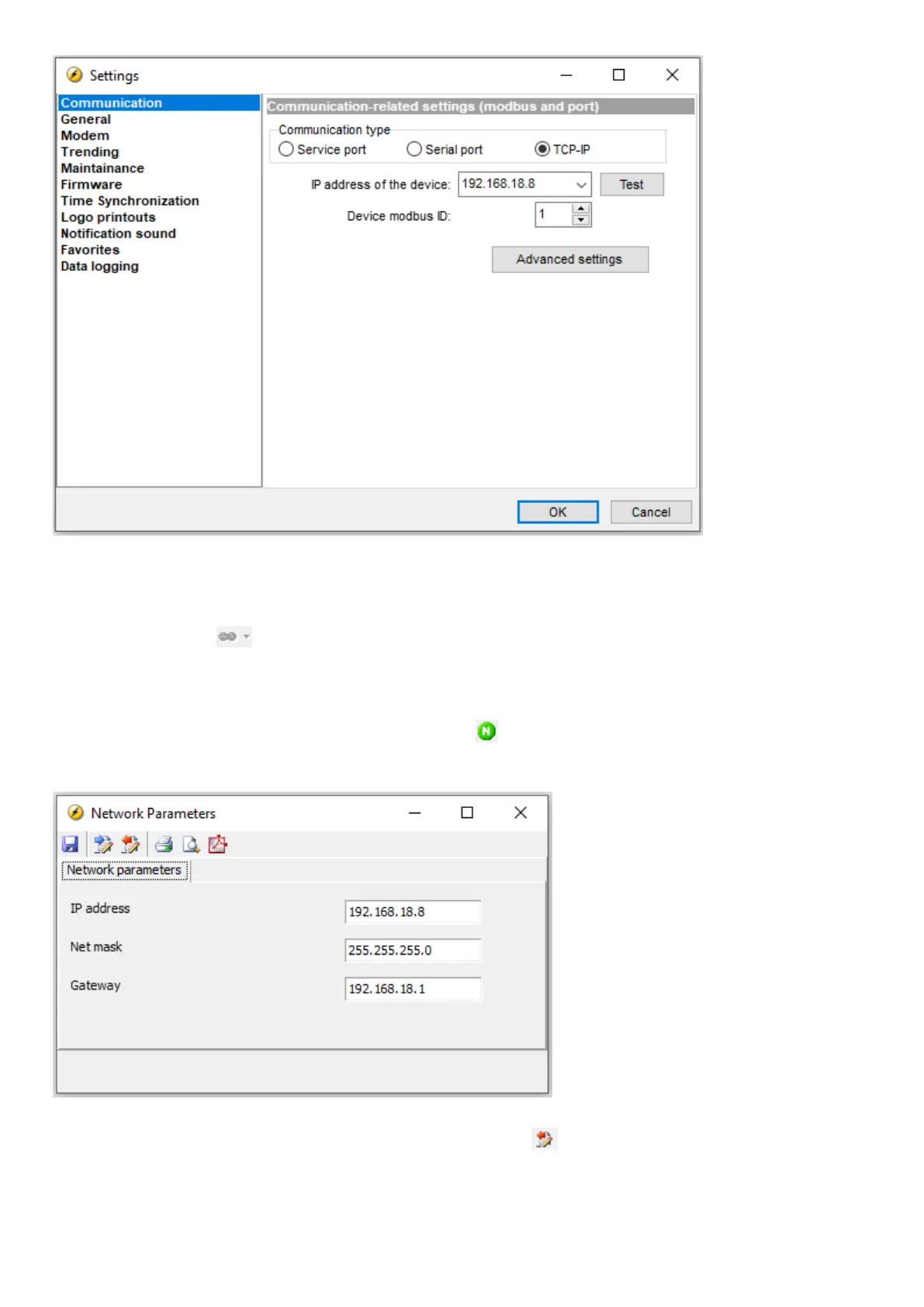

Select the TCP-IP button to enter the IP address. Press the Test button to check if the connection is successful, then press the OK
button.
Press the Communication
button in the top toolbar to connect to the controller via TCP-IP.
Enter the controller password to be able to change the parameters.
To change the network parameters, press the Option N configuration button. A window appears, where the network parameters
can be entered:
When the network parameters have been changed, press the Write to device button in the top of the window. The controller
receives the new network parameters and reboots the network hardware. Be aware, when trying to connect to the controller again
that the new IP address has to be used, with a suitable static IP address for the PC.
DESIGNER'S HANDBOOK 4189341275A EN Page 149 of 196
