Input type Standard
Option
M15
Option
M16
Notes
Pt100 •
The controller uses the standard Pt100 curve. You can use the Engineering
units parameter to change the units from °C to °F.
Pt1000 • •
The controller uses the standard Pt1000 curve. You can use the
Engineering units parameter to change the units from °C to °F.
RMI oil pressure •
Use RMI type to select one of the standard curves or a configurable curve.
You can use the Engineering units parameter to change the units from bar
to psi.
If the RMI input is used as a level switch, then be aware that voltage must
not be connected to the input. If any voltage is applied to the RMI input, it
will be damaged. See the Application Notes for more wiring information.
RMI water
temperature
•
Use RMI type to select one of the standard curves or a configurable curve.
You can use the Engineering units parameter to change the units from °C to
°F.
If the RMI input is used as a level switch, then be aware that voltage must
not be connected to the input. If any voltage is applied to the RMI input, it
will be damaged. See the Application Notes for more wiring information.
RMI fuel level •
Use RMI type to select one of the standard curves or a configurable curve.
If the RMI input is used as a level switch, then be aware that voltage must
not be connected to the input. If any voltage is applied to the RMI input, it
will be damaged. See the Application Notes for more wiring information.
Digital •
If the input type is Binary, you can select a digital input function for the
multi-input.

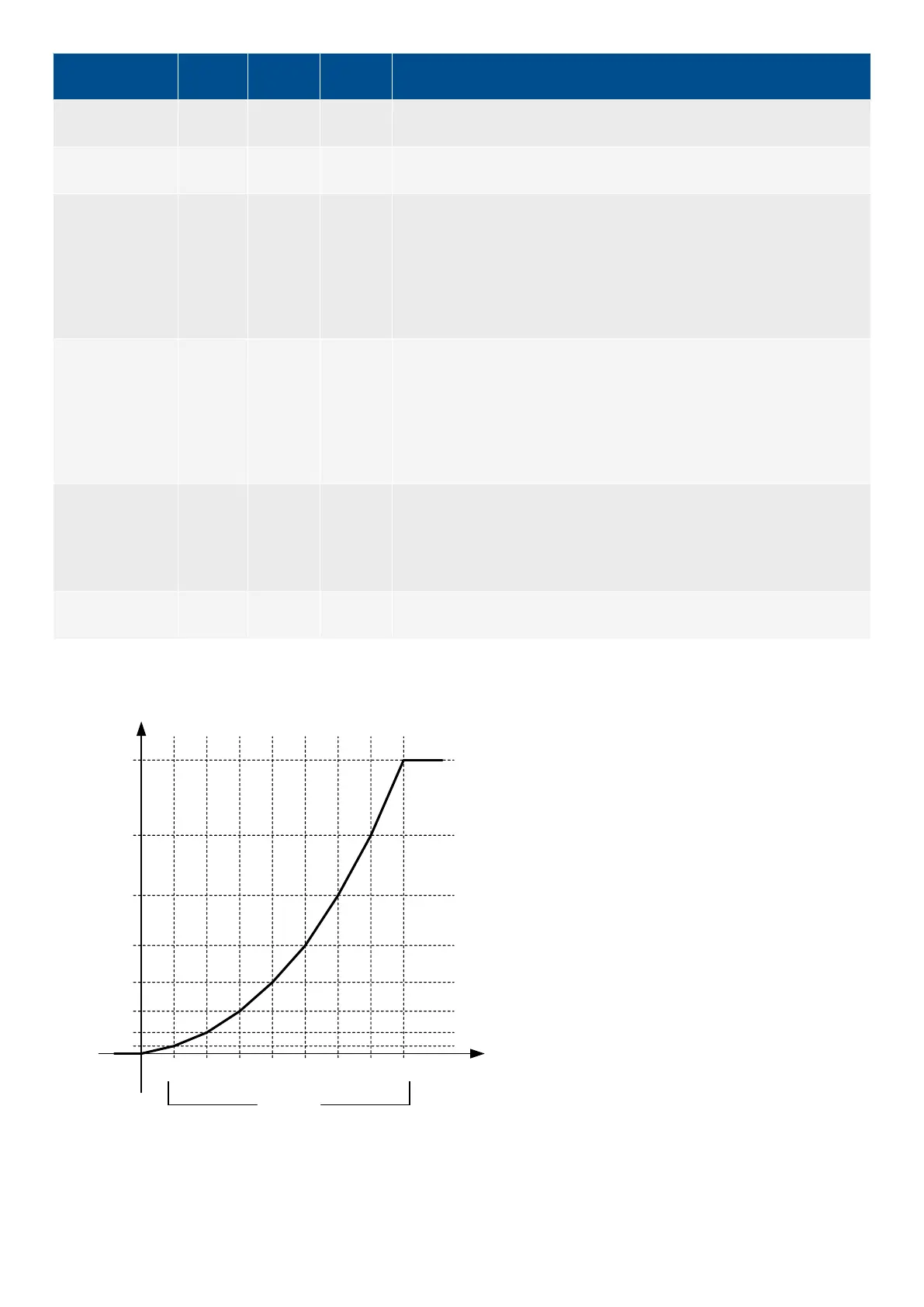

Configurable RMI curve example
Setpoints
Setpoint 1
Setpoint 2
Setpoint 3
Setpoint 4
Setpoint 5
Setpoint 6
Setpoint 7
8 7 6 54 3 2 1
Value
(bar, °C or %)
Resistance
(Ω)
Setpoint 8
