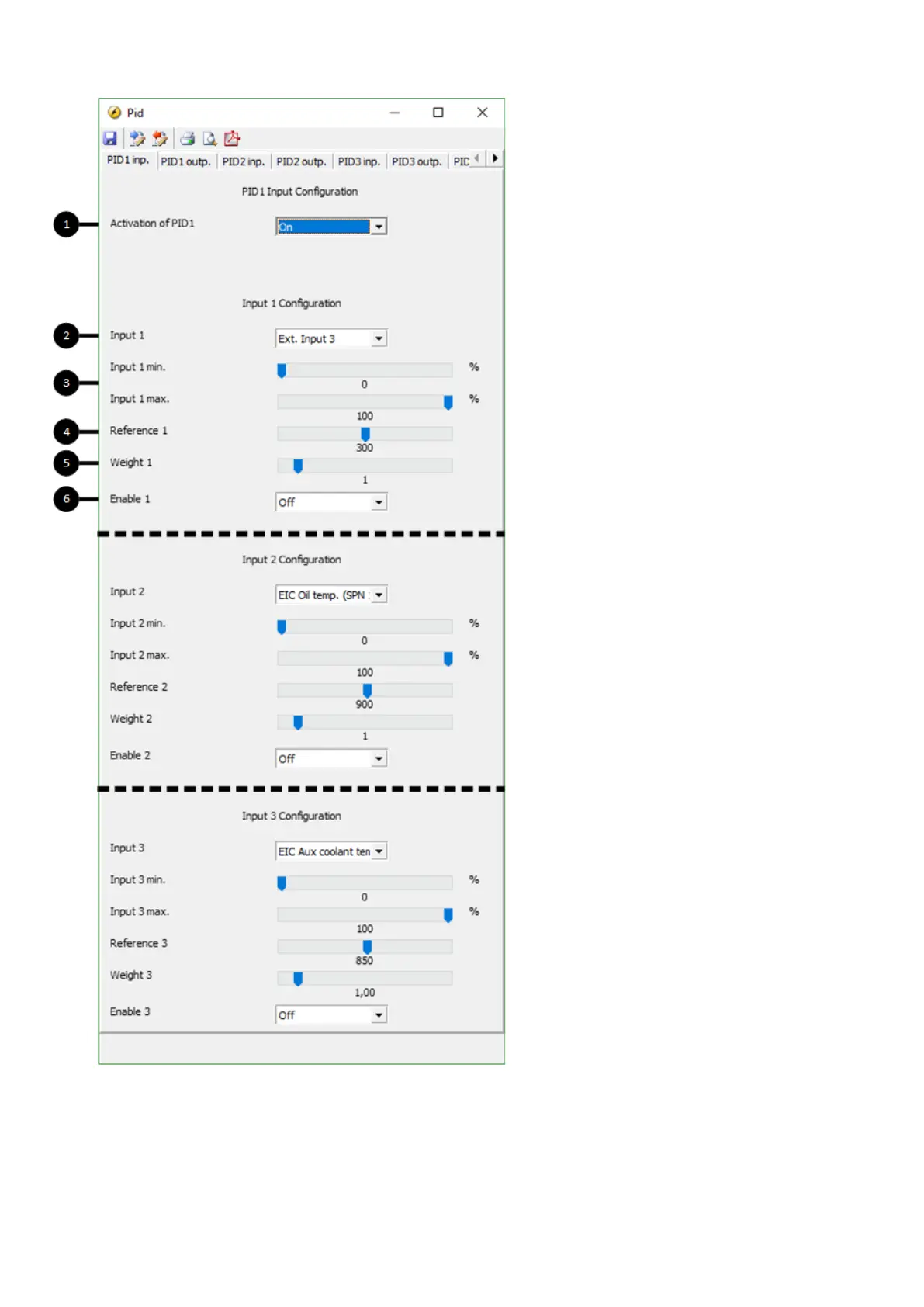

Explanation of GP PID settings
1.
Activation drop-down
: Enables the PID or allows it to be enabled from M-Logic.
2.
T
op drop-down
: The source of this input is chosen here.
3.
“Input 1 min.” and “Input 1 max.”
: Defines the scale of the input value evaluated.
4.
“Reference 1”
: The set point for this particular input (30 °C).
5.
“Weight 1”
: The weight factor is multiplied by the input value.
DESIGNER'S HANDBOOK 4189341275A EN
Page 184 of 196
183
