EIC Intercool temp. is selected as input 1, and EIC Cooling water temp. as input 2. Min. and max. values are configured for full
range. Input 1 reference set point is set at 500 to achieve a temperature set point of 50.0 °C for intercooler coolant. Input 2 has a
reference set point set at 900 to achieve a set point of 90.0 °C jacket water coolant. To achieve equal weighting of the inputs when
calculating the output, both weight factors are set to a value of 1. Both desired inputs are activated, leaving input 3 to be
deactivated.
In this application, it is desired to ensure that none of the temperatures permanently exceed their set points. This is achieved by
selecting maximum output as priority for the dynamic input selection.

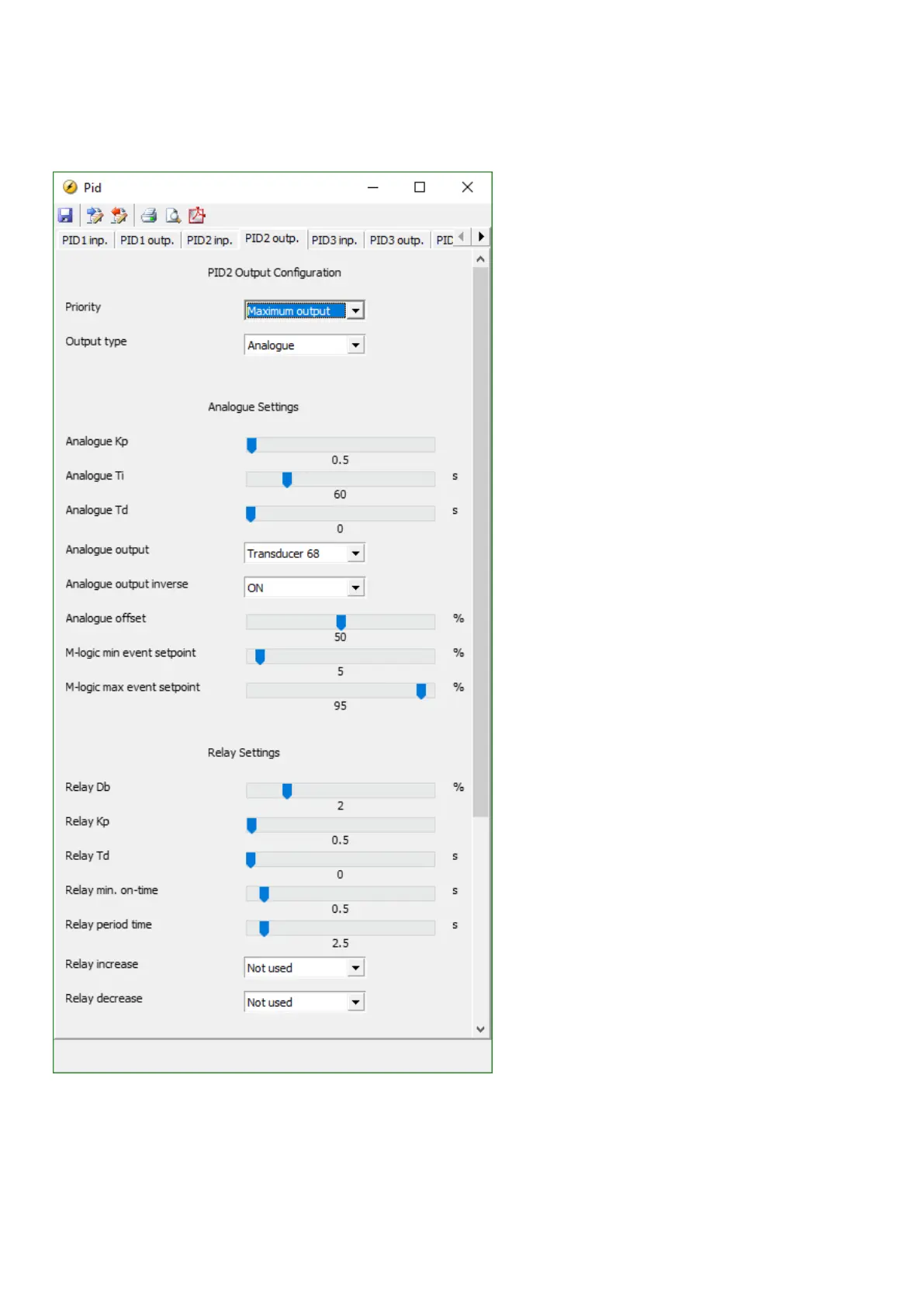

In this example, “Analogue” is selected as output type, and the physical output is selected to be “transducer 68”. Inverse output is
activated to obtain a rise in analogue output to the fan when the temperature rises.
DESIGNER'S HANDBOOK 4189341275A EN Page 195 of 196
