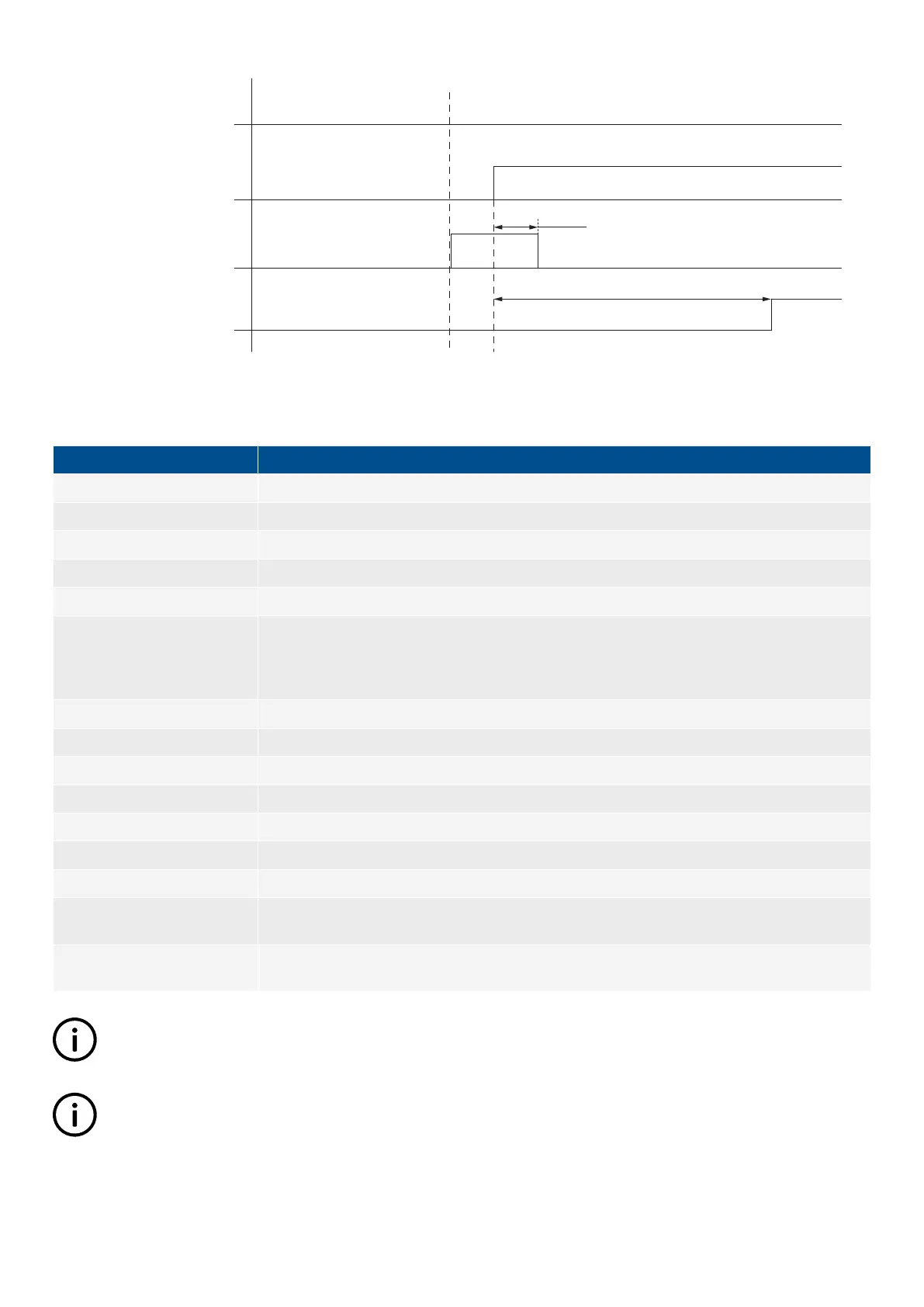

Running feedback failure
Primary running feedback
Secondary running feedback
Start relay (crank)
Alarm
t
ALARM
1 sec.
Running feedback failure
Interruption of start sequence
The start sequence is interrupted in the following situations:
Event
Comment
Stop signal
Start failure
Remove starter feedback Tacho set point.
Running feedback Digital input.
Running feedback Tacho set point.
Running feedback
Frequency measurement above 32 Hz.
The frequency measurement requires a voltage measurement of 30 % of U
NOM
.
The running detection based on the frequency measurement can replace the running feedback
based on tacho or digital input or engine communication.
Running feedback Oil pressure set point (menu 6175).
Running feedback EIC (engine communication) (option H12).
Emergency stop
Alarm Alarms with shutdown or trip and stop fail class.
Stop push-button on display Only in semi-auto or manual mode.
Modbus stop command Semi-auto or manual mode.
Binary stop input Semi-auto or manual mode.
Deactivate the "auto start/stop"
Auto mode in the following genset modes:
Island operation, fixed power, load takeover or mains power export mode.
Running mode
Activating BLOCK while running will work in the same way as pushing the emergency stop, but it
will also prevent the genset from starting afterwards.
INFO
If the MPU input is to be used to remove the starter, it must be set up in menu 6174.
INFO
The only protections that can stop the genset/interrupt the start sequence when the shutdown override input is activated,
are the digital input emergency stop (menu 3490), the alarm overspeed 2 (menu 4520) and the alarm EIC RPM overspeed
(menu 7600). All must have the fail class shut down.
DESIGNER'S HANDBOOK 4189341275A EN Page 55 of 196
