t
COOL
t
stop
Run coil

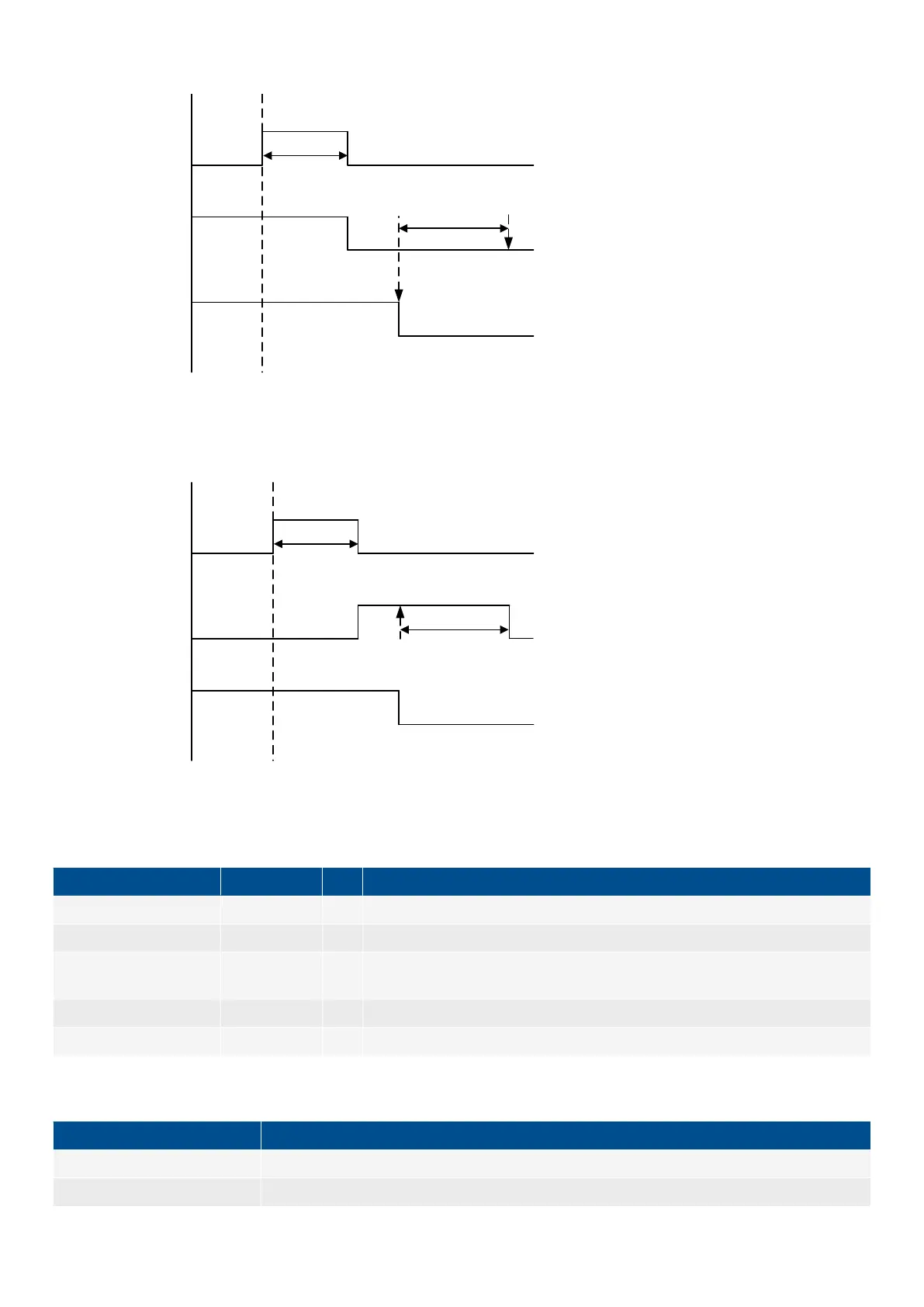

Stop sequence
Cooling down time
Run coil
Running feedback
Sequence initiated
t
COOL
t
stop
Stop coil
Stop sequence
Cooling down time
Stop coil
Running feedback
Sequence initiated
The stop sequence will be activated if a stop command is given. The stop sequence includes the cooling down time if the stop is a
normal or controlled stop.
Description
Cooling down Stop Comment
Auto mode stop X X
Trip and stop alarm X X
Stop button on display (X) X
Semi-auto or manual. Cooling down is interrupted if the stop button is activated
twice.
Remove "auto start/stop" X X Auto mode: Island operation, fixed power, load takeover, mains power export.
Emergency stop X Engine shuts down and GB opens.
The stop sequence can only be interrupted during the cooling down period. Interruptions can occur in these situations:
Event
Comment
Mains failure AMF mode selected (or mode shift selected ON) and auto mode selected.
Start button is pressed Semi-auto mode: Engine will run in idle speed.
DESIGNER'S HANDBOOK 4189341275A EN Page 59 of 196
