Deif AGC-4 Mk II Designers Handbook

Timer Description Menu number
t
FOD
Mains failure OK delay
7072 f mains failure
7062 U mains failure
t
GBC
GB ON delay 6231 GB control
t
MBC
MB ON delay 7082 MB control
The timer t
MBC
is only active if back synchronisation is deactivated.

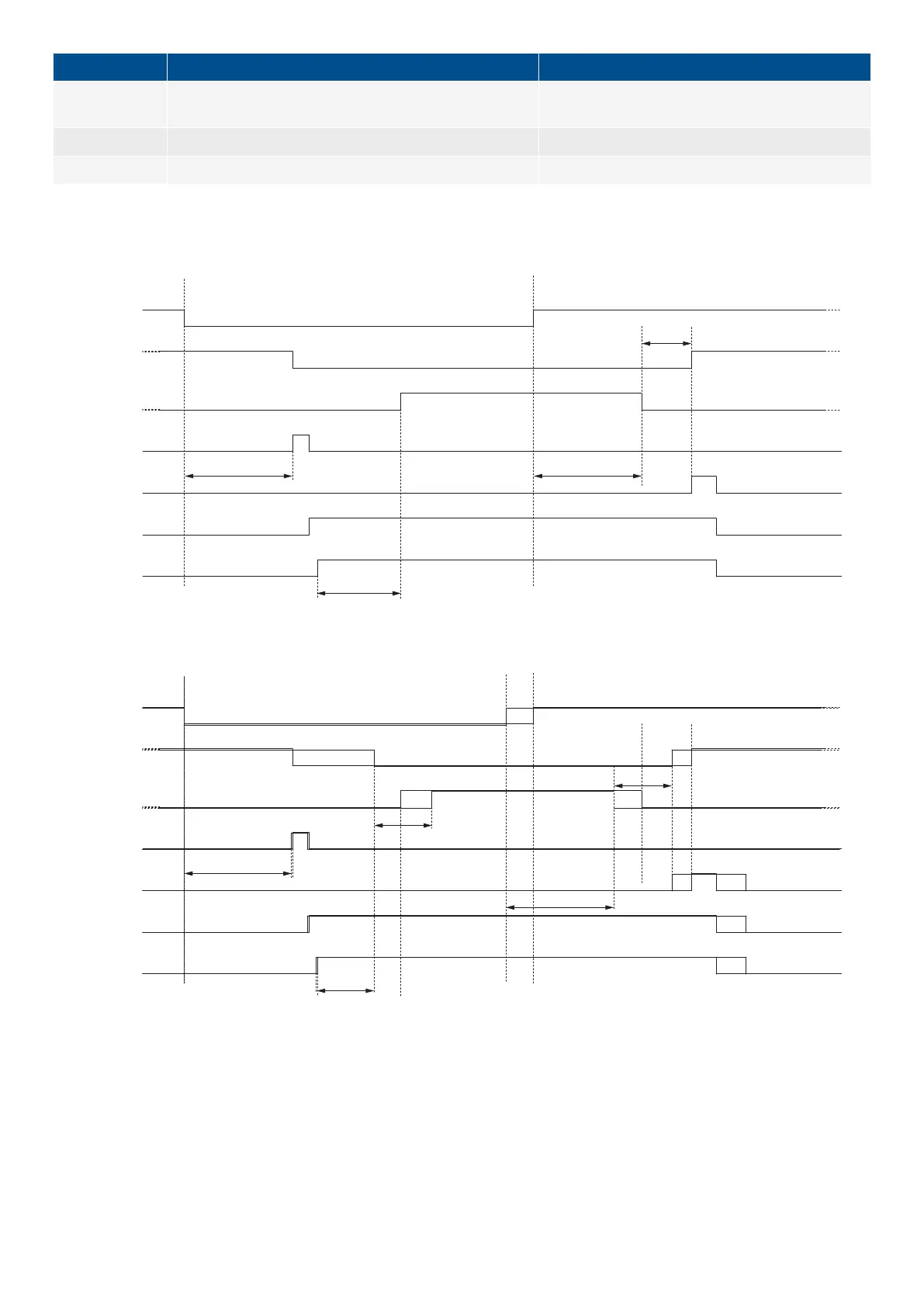

Example 1: 7065 Mains fail control: Start engine and open MB
Mains OK
MB On
GB On
Gen start seq
Gen stop seq
Gen running
Gen f/U OK
Mains failure
detected
Mains OK
t
FU
t
FD
t
FOD
t
MBC
Example 2: 7065 Mains fail control: Start engine
Mains OK
MB On
GB On
Gen start seq
Gen stop seq
Gen running
Gen f/U OK
Mains failure
detected
Mains OK
t
FU
t
FD
t
GBC
t
FOD
t
MBC
Set points for the AMF sequence
The timers must have some set points to indicate when they are to start. The AGC has different set points for the different situations.
The limits that the mains voltage must be within before the failure timer starts, are set in parameters 7063 and 7064. There is a low
(7063) and a high (7064) limit. Furthermore, the AGC has limits for the frequency. This also has a low limit (7073) and a high limit
(7074). If the mains voltage or frequency has exceeded one of these limits and the relevant fail timer has expired, the AMF
sequence will be started.
DESIGNER'S HANDBOOK 4189341275A EN Page 62 of 196
