Pag 28 / 154
Manuale Lyra 600 sx elettr eng

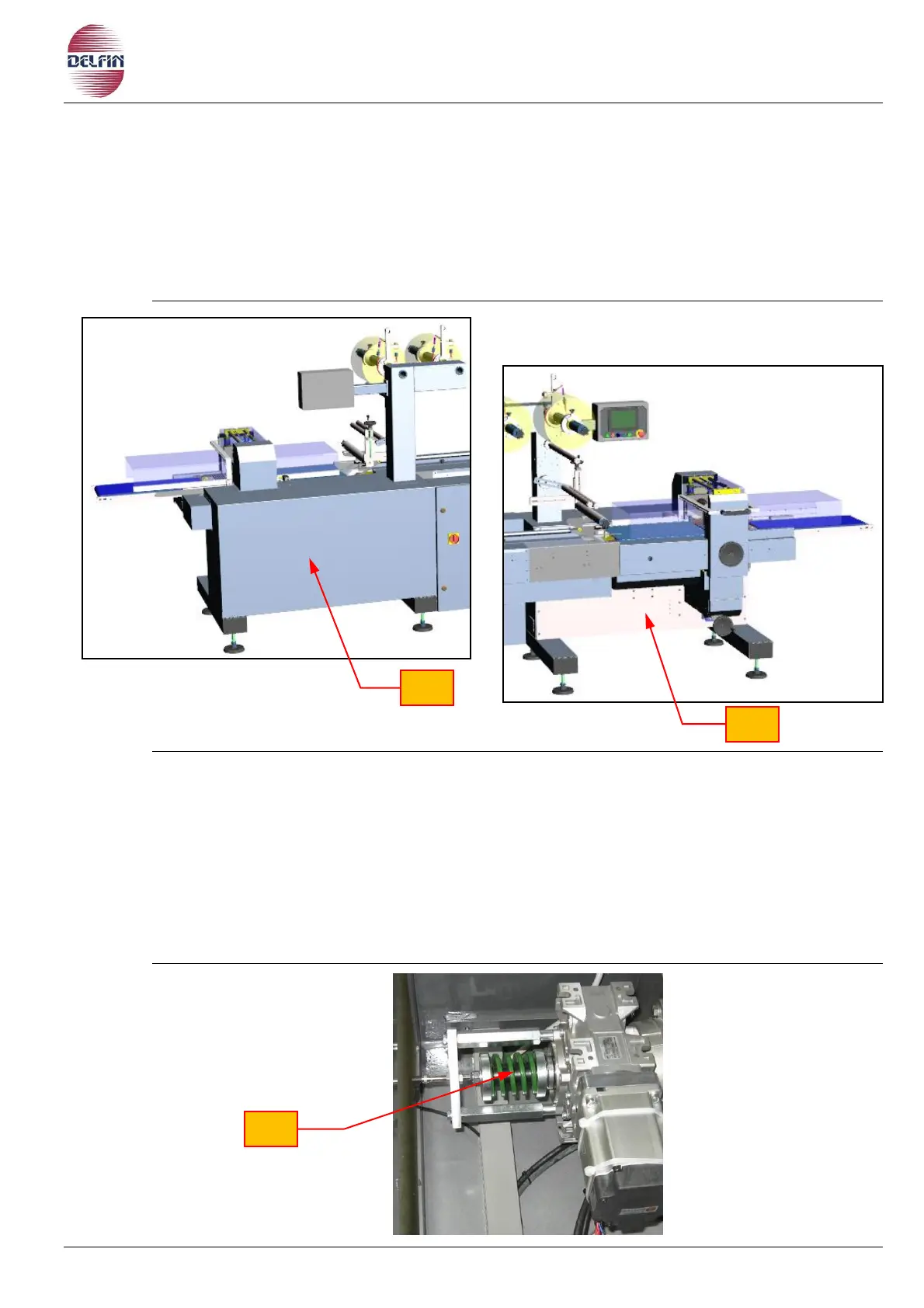

2 fixed guards for the transmission cabinet (1-2 fig. 2.6.1.1F), one encloses the rear
end of the cabinet, while the other, on the front side of the slot on the machine
shoulder. The guards are placed to protect the transmission parts found in the
cabinet. The guard position 1 is made of stainless steel, however the guard position 2
is made of aluminum. Both the guards are fixed with screws to the machine structure
and do not remain in place once the screws are removed. The resistance of the
guards is adequate to resist strains from normal functioning, or due to cleaning,
maintenance, and other eventual bumps caused by the operator.
Fig. 2.6.1.1F Guards – transmission cabinet
1 tear-cut protective device (only for mechanical clutch/torque limiter) (1 fig.
2.6.1.1G) the function of which is to stop the machine when a product remains
entangled between the sealing rods, so as to avoid damaging the cutter head and
the transmission organs. The device is controlled by a switch that triggers an
emergency stop; to restart the machine after restoring the transmission with the
handwheel (2 fig. 2.6.1.1G) you need to press the <RESET> button (3 fig.
2.6.1.1G) on the control panel.
Fig. 2.6.1.1G Tear-cut protection device
