Delfin LYRA - Page 30

Pag 30 / 154
Manuale Lyra 600 sx elettr eng
1 maneuvering element for the general switch of the power feed line (1 fig. 2.6.1.1I),
positioned on the door of the electric panel, cuts out the power feed to the machine.
Furthermore the electric panel is equipped with a power socket and once the plug is
unplugged the panel is totally cut off.
1 electric panel (2 fig. 2.6.1.1I), with a protection grade of IP 55 and is found at the
rear end of the machine. Inside the panel are the activation items and all the
command and control devices, the power device, inverter, and the safety module.
The panel’s door is locked with a key (3 fig. 2.6.1.1I) and the general switch (4 fig.
2.6.1.1I) is equipped with a door-lock device (5 fig. 2.6.1.1I). The power feed to the
panel is achieved through a plug/socket combination (6 fig. 2.6.1.1I).
Safety circuit; the part of the command circuit related to safety (SRP/CS) is equipped
with a safety module (7 fig. 2.6.1.1I). The safety module is controlled by the
following protective devices:
-Intra-locking moveable guards;
-Emergency stop button;
-Flexible coupling;
-circuit breakers of motors

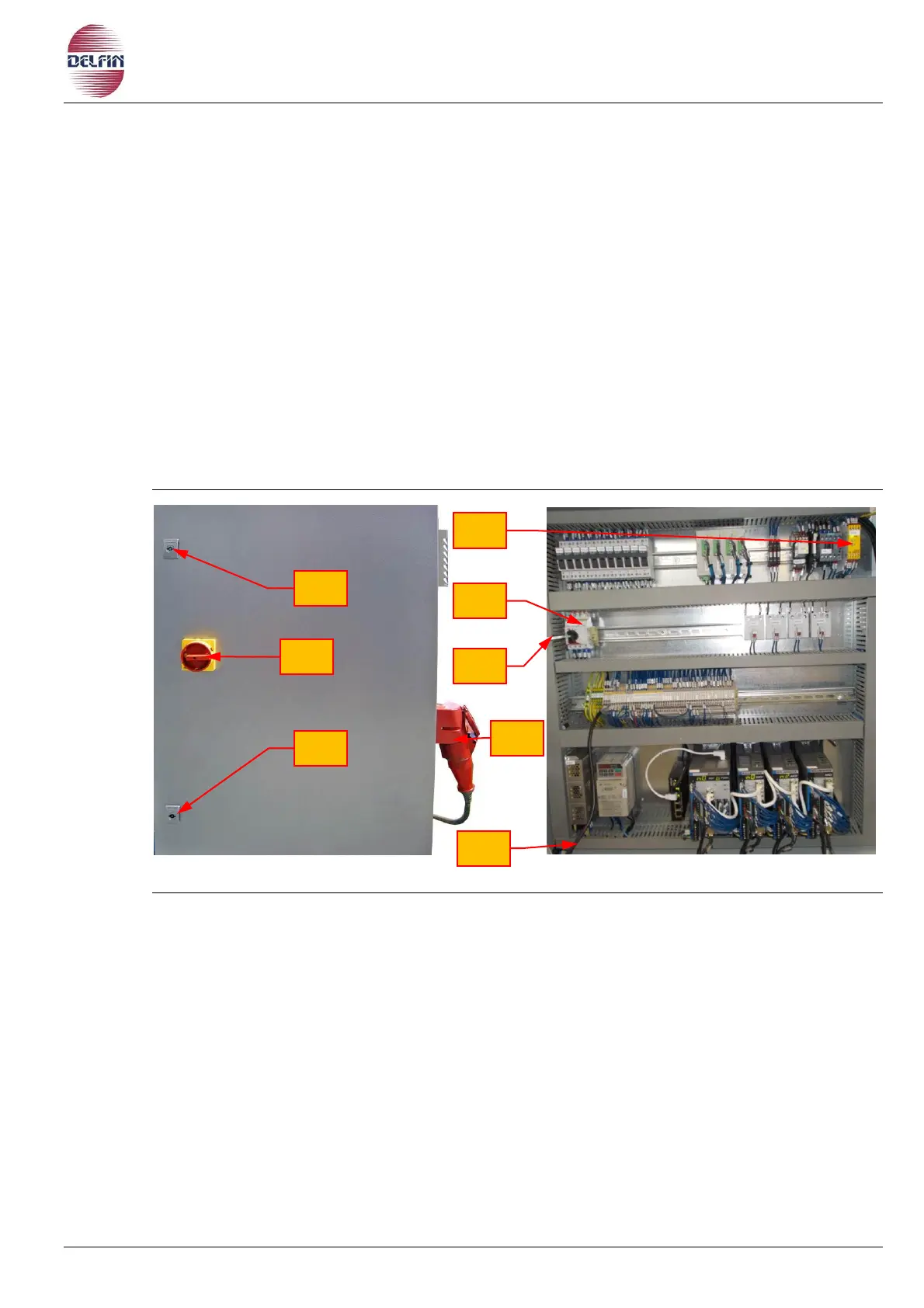

Fig. 2.6.1.1I Protective devices – electrical system
6
2
3
3
4
5
7
1
