Delta AS Series User Manual

4.3 Installation
4.3.1 Installing Modules in a Control Box
A PLC has to be installed in a closed control box. In order to ensure that the PLC radiates heat normally, the
space between the PLC and the control box must be larger than 50 millimeters.

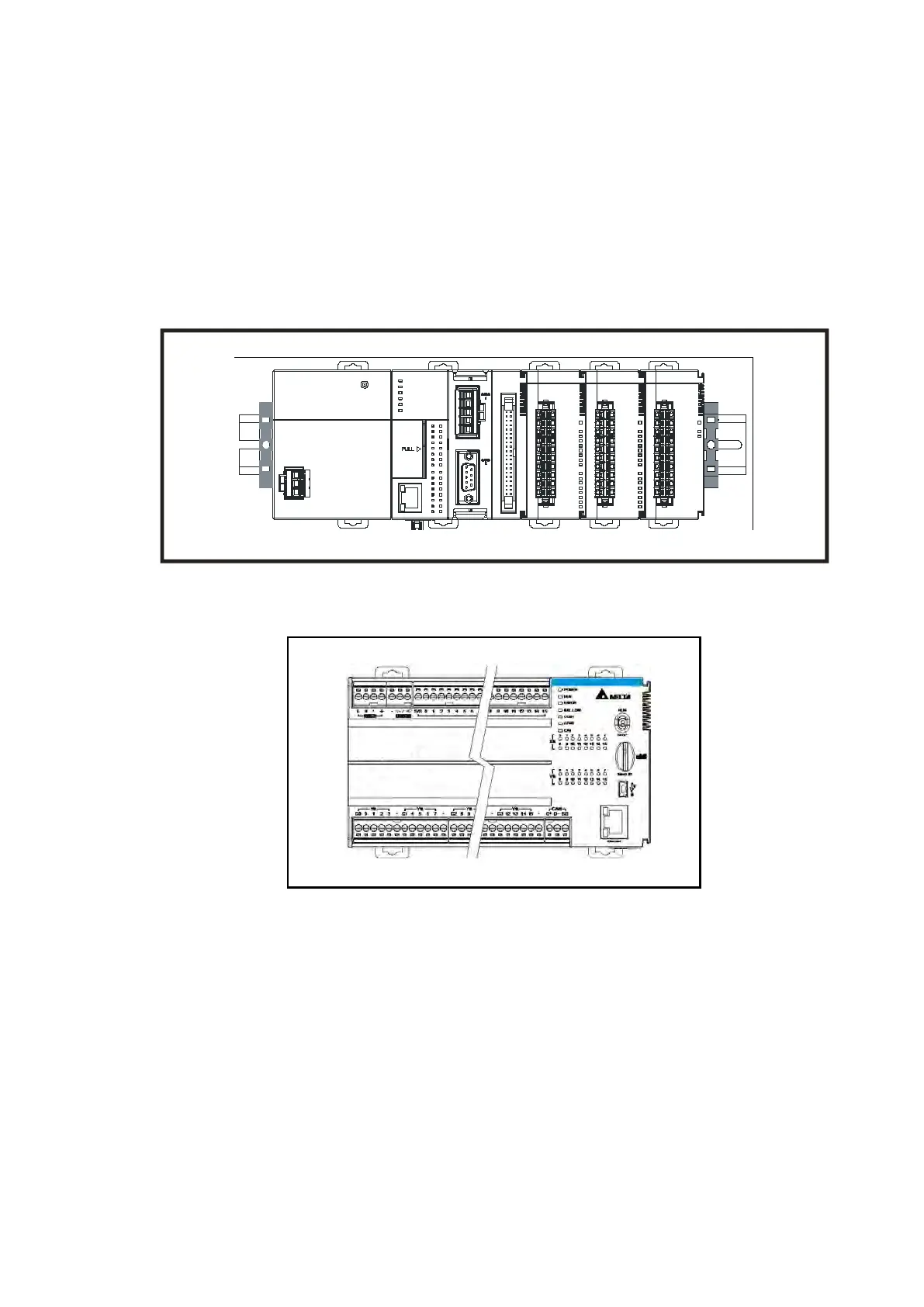

 AS200 / AS300
50mm＞
50mm＞
50mm＞
50mm＞
 AS100
>50mm
>50mm
>50mm
>50mm
 Keep the PLC away from high-voltage equipment, high-voltage wires, and high-voltage motors.
 In order to prevent the PLC from overheating, please do not install the PLC vertically on the bottom or top
of the control box.
 Please install the PLC horizontally in the control box, as shown above.
 If you intend to increase the number of modules, you must leave some space for installing the modules in
the control box.
