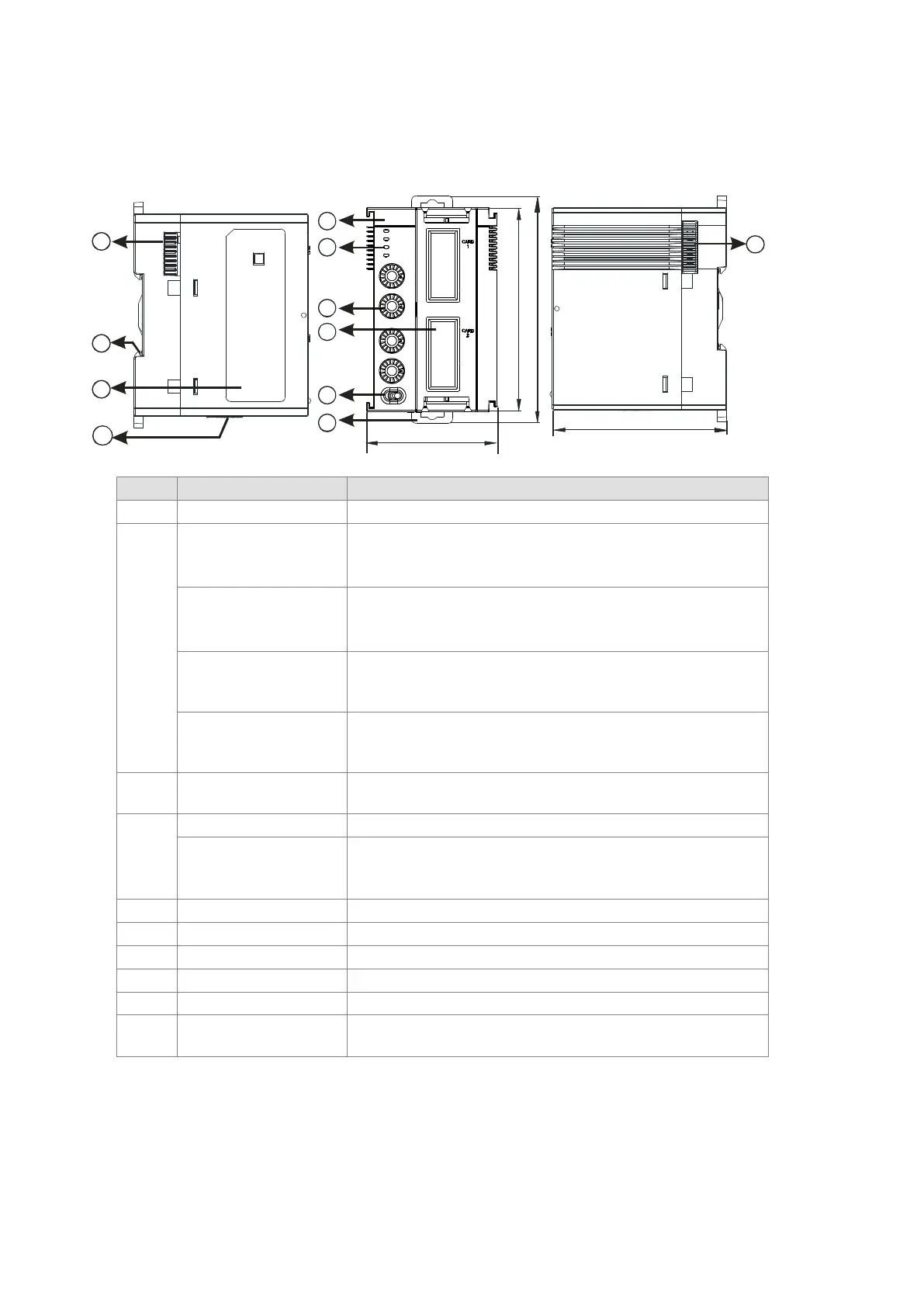

2.8.2 Network Module Profiles
 AS00SCM-A
1
4
5
2
6
75
98 .3
88
56
3
7
8
9
7
10
SCM
POWER
CA RD 1
CA RD 2
ER RO R
F OR MA T 2
C OM . RTU
ID 2
FOR M AT 1
ID 1
Unit: mm
Number
Name
Description
1 Model name Model name of the module
2
POWER LED indicator
Indicates the status of the power supply
ON: The power is on
OFF: No power or the power is low
ERROR LED indicator
Error status of the module
OFF: The module is normal.
Blinking: Error occurs now or error had occurred before
Extension card 1
indicator
(orange)
Blinking: Communication is taking place in card 1
OFF: No communication in card 1
Extension card 2
indicator
(orange)
Blinking: Communication is taking place in card 2
OFF: No communication in card 2
3
Address and function
setting knobs
2 sets for setting up the address and function in card 1 and 2
4
Slot of function card 1 COM mode: Available for AS-F232, AS-F422, AS-F485
Slot of function card 2
COM mode: Available for AS-F232, AS-F422, AS-F485,
AS-FCOPM
RTU mode: AS-FCOPM, AS-FEN02, AS-FPFN02
5 Mode switch COM: Serial communication mode; RTU: remote module mode
6 DIN rail clip Secures the module onto the DIN rail
7 Module connecting set Connects the modules
8
Ground clip
9
Label
Nameplate
10
Input for supplying power
to remote modules
Power supply for the remote module (NOT for COM mode)
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
