Delta AS Series - Wiring AS132 R-A;AS148 R-A;AS164 R-A

4.6.12 Wiring AS132R-A/AS148R-A/AS164R-A
Input form
Direct current (sinking or sourcing)
Input current/voltage
24 VDC, 5 mA
Output form
Relay
Output
current/voltage
240VAC/24VDC, 2A/output, 5A/COM

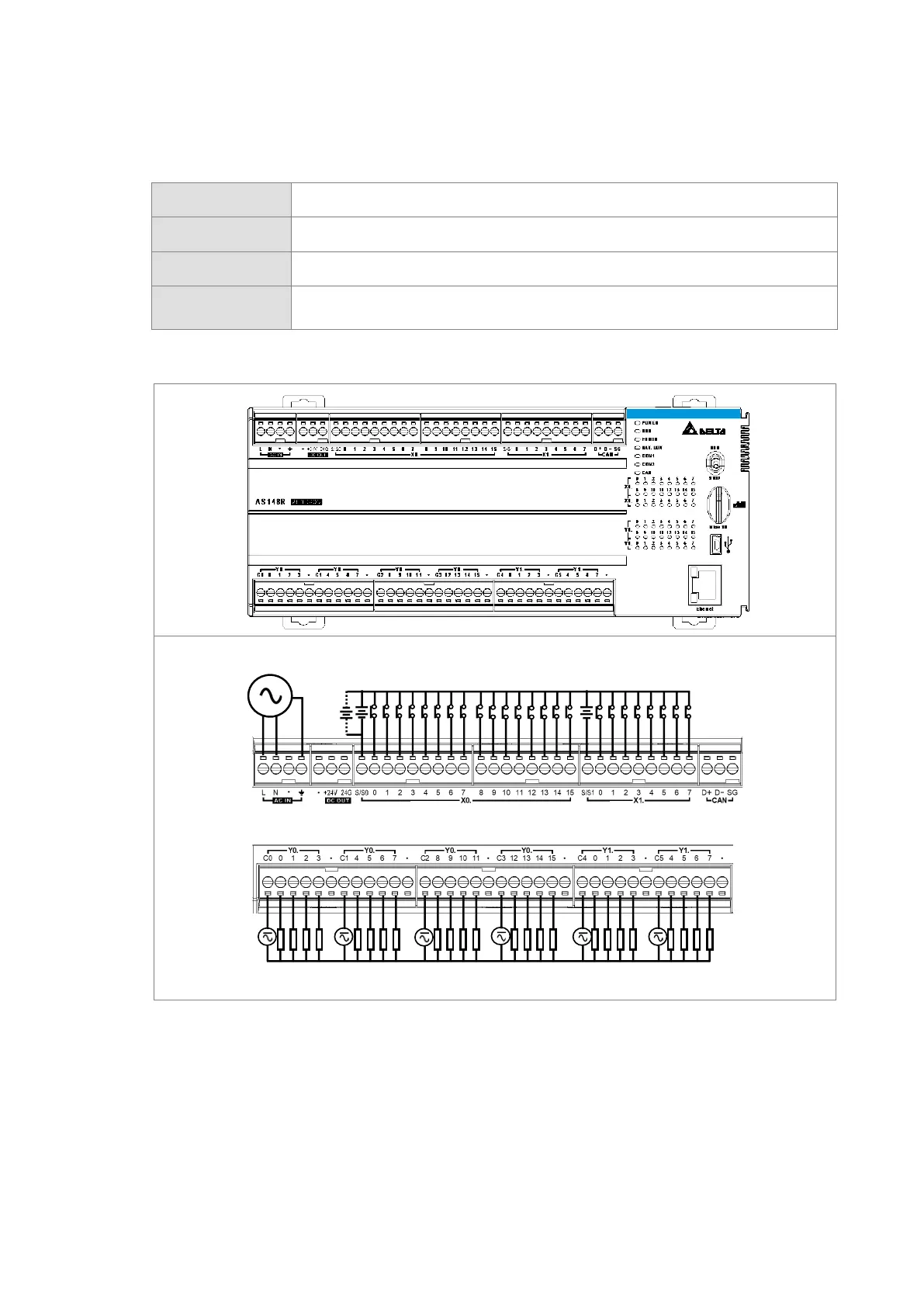

The following illustrations uses AS148R-A as an example. The wiring method is similar to AS132R-A and
AS164R-A.
