Delta AS Series User Manual

5.4.3 Starting Addresses for Temperature Measurement Modules

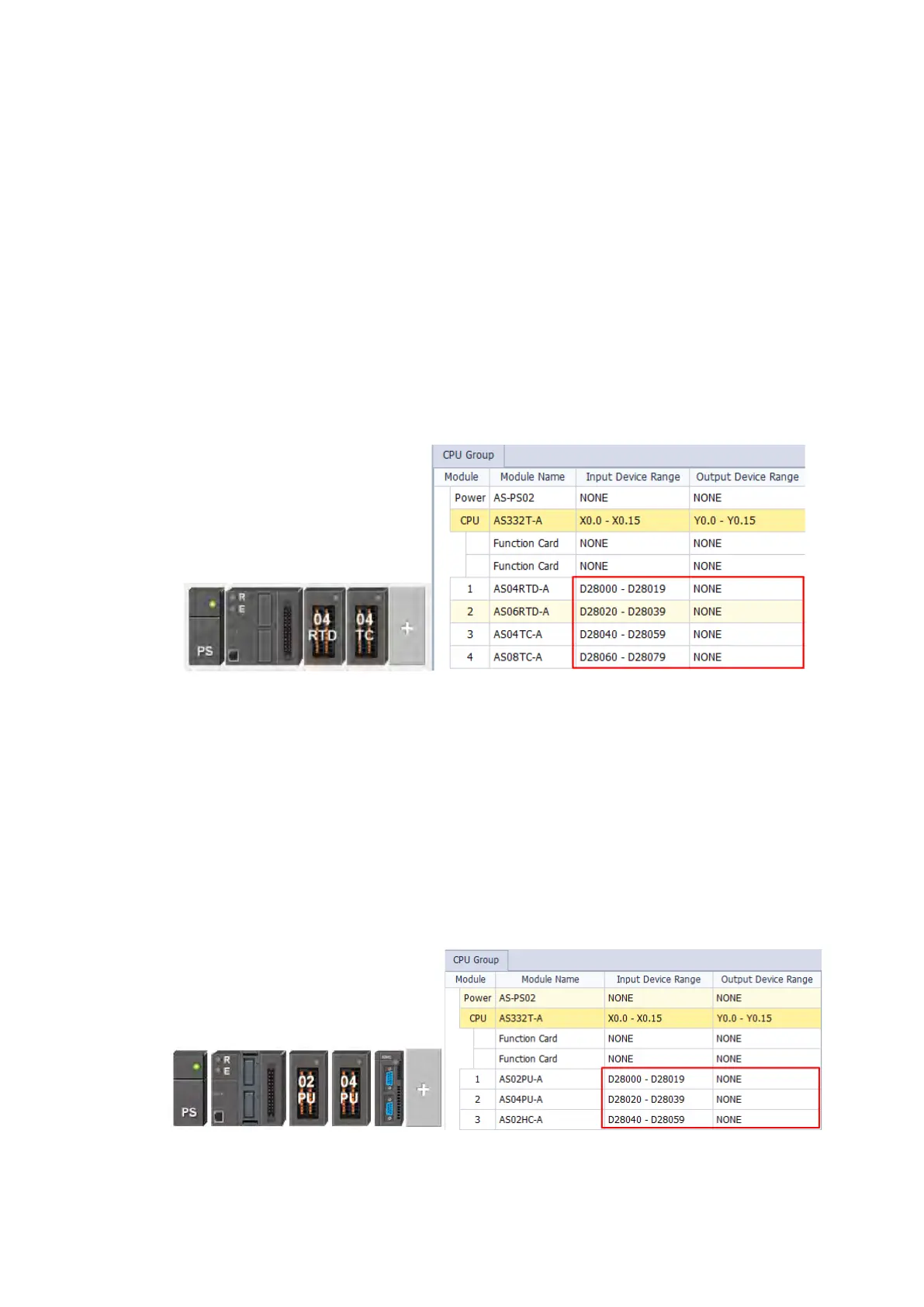

HWCONFIG automatically assigns consecutive input and output data registers starting from D28000 to a
temperature measurement module in ISPSoft according to the number of registers defined for the temperature
measurement module.
1. 04RTD: There are four input channels. The input device range occupies 20 data registers.
2. 06RTD: There are six input channels. The input device range occupies 20 data registers.
3. 04TC: There are four input channels. The input device range occupies 20 data registers.
4. 08TC: There are eight input channels. The input device range occupies 20 data registers.
5.4.4 Starting Addresses for Positioning/Counter Modules
HWCONFIG automatically assigns consecutive input and output data registers starting from D28000 to a
network module in ISPSoft according to the number of registers defined for the network module.
1. 02PU: The input device range occupies 20 data registers.
2. 04PU: The input device range occupies 20 data registers.
3. 02HC: The input device range occupies 20 data registers.
