4.6.11 Wiring AS132P-A/AS148P-A/AS164P-A
Input form
Direct current (sinking or sourcing)
Input current/voltage
24 VDC, 5 mA
Output form
Transistor-P (sourcing) (PNP)
Output
current/voltage
5 to 30 VDC, 0.5A/output, 2A/COM

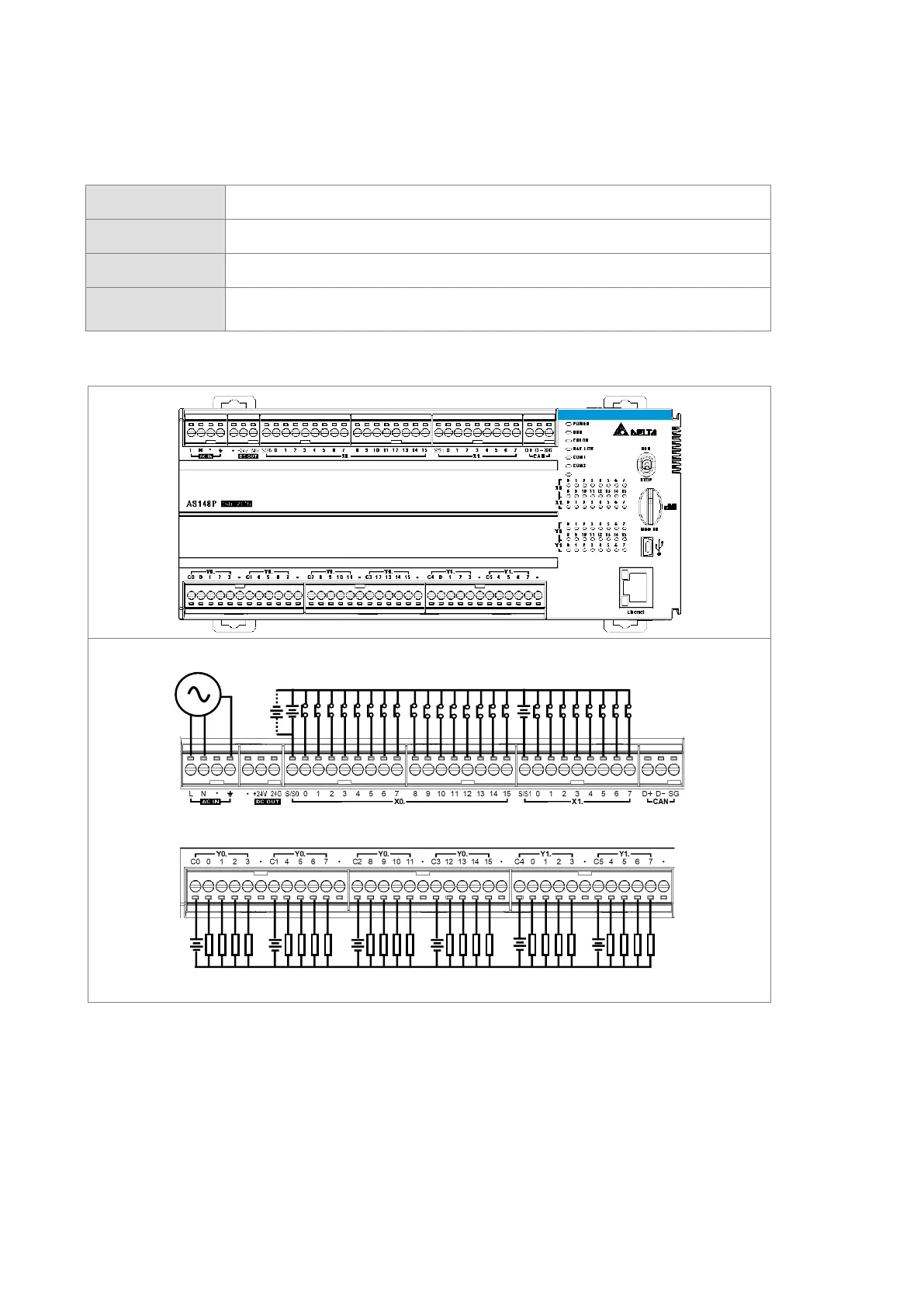

The following illustrations uses AS148P-A as an example. The wiring method is similar to AS132P-A and
AS164P-A.
