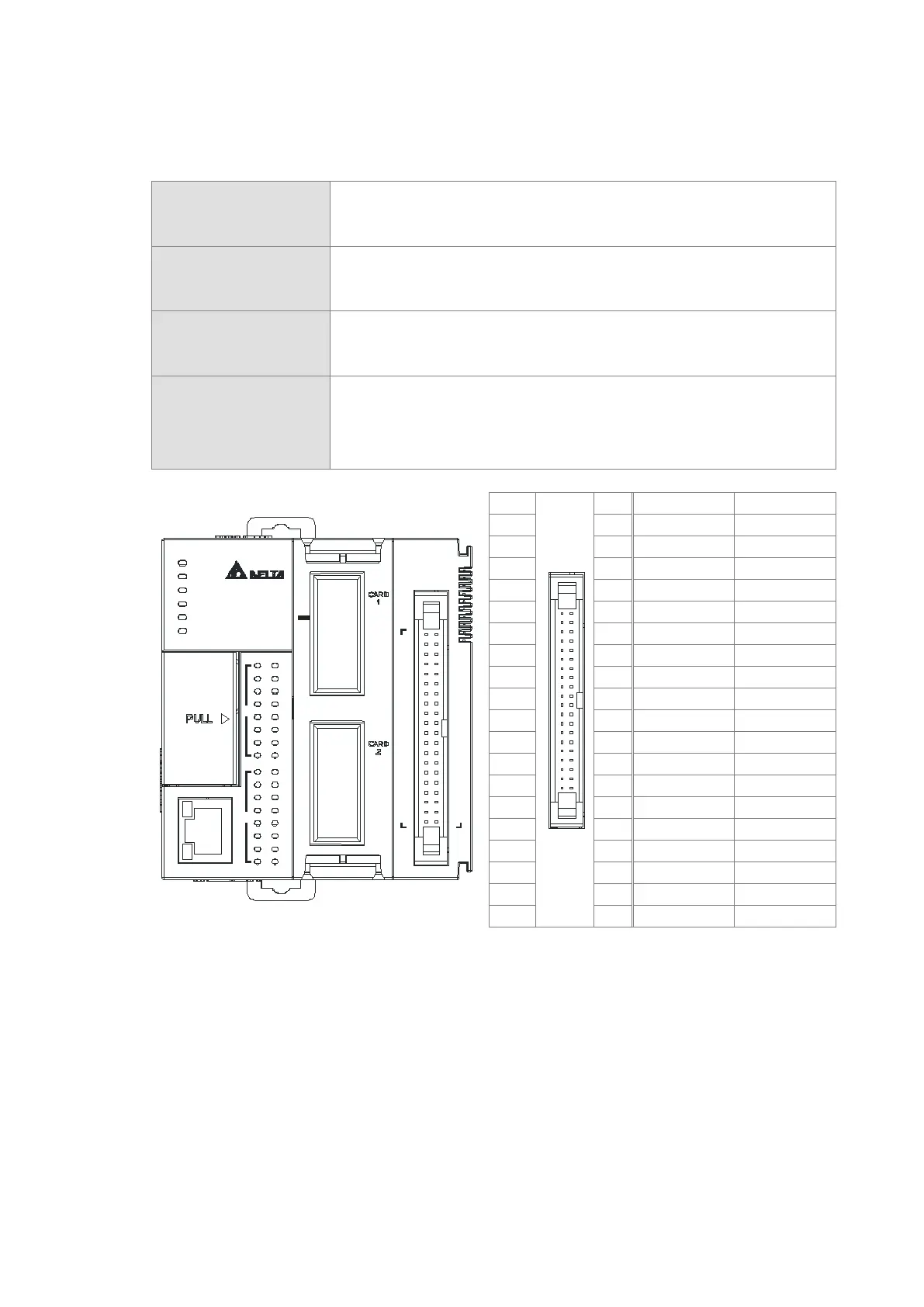

Delta AS Series - Wiring AS324 MT-A

4.6.1 Wiring AS324MT-A
Input form
X0.0+ to X0.3+/X0.0- to X0.3- : Differential input
X0.4–X0.11: Direct current (sinking or sourcing)
Input current/voltage
X0.0+ to X0.3+/X0.0- to X0.3- : 5V DC, 5 mA
X0.4–X0.11: 24 VDC, 5 mA
Output form
Y0.0+ to Y0.3+/Y0.0- to Y0.3- : Differential input
Y0.4–Y0.11: Transistor-T (sinking)
Output current/voltage
Y0.0+ to Y0.3+/Y0.0- to Y0.3-: 5V DC, 20mA/output
(+ and – as a group, e.g. Y0.0+ and Y0.0- is a group)
Y0.4 to Y0.11: 5 to 30V DC, 0.1A/output, 0.8A/COM
COM1
COM2
5
0
OUT
4
1
2
3
8
9
11
10
2
102
7
5
6
4
IN
3 11
AS324MT
0
1
8
9
40
1
BAT. LO W
ERROR
RUN
POWER
Ethernet
6
7
40
2
40
1
39
S/S
S/S
38
37
X0.11
X0.10
36
35
X0.9
X0.8
34
33
X0.7
X0.6
32
31
X0.5
X0.4
30
29
SG0
SG0
28
27
X0.3-
X0.3+
26
25
X0.2-
X0.2+
24
23
X0.1-
X0.1+
22
21
X0.0-
X0.0+
20
19
C0
C0
18
17
Y0.11
Y0.10
16
15
Y0.9
Y0.8
14
13
Y0.7
Y0.6
12
11
Y0.5
Y0.4
10
9
SG1
SG1
8
7
Y0.3-
Y0.3+
6
5
Y0.2-
Y0.2+
4
3
Y0.1-
Y0.1+
2
1
Y0.0-
Y0.0+
