Delta AS Series - Wiring AS16 AP11 P-A

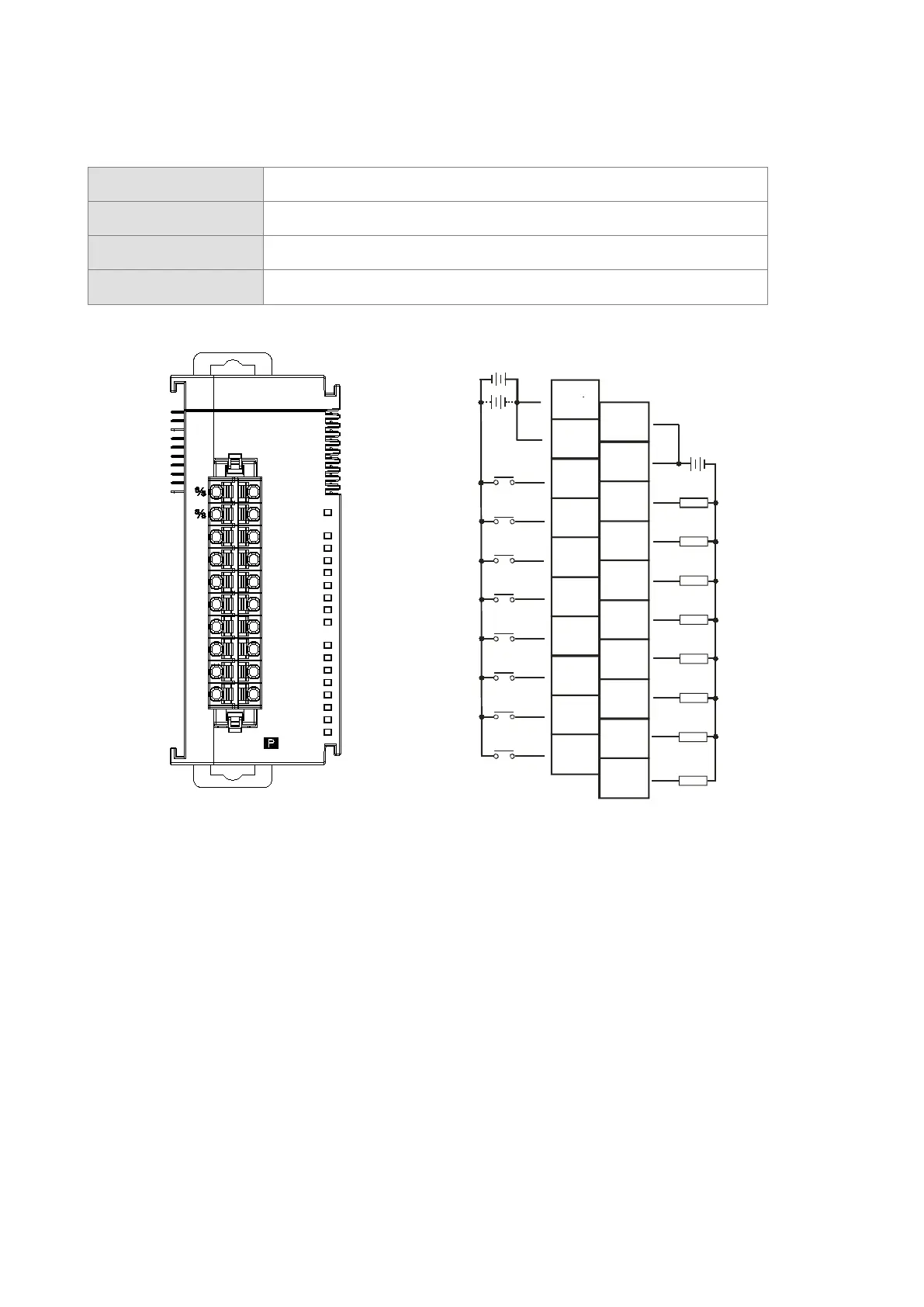

4.7.11 Wiring AS16AP11P-A
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Transistor-P (sourcing)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
16AP
6
4
5
7
6
1
2
3
7
0
OUT
IN
3
4
5
0
1
2
PWR
C0
OUT
C0
6
7
5
4
3
1
2
0
IN
4
5
6
7
0
1
2
3
OUT
3
2
5
1
4
C0
0
6
C0
7
IN
S/S
5
6
4
3
2
1
7
0
S/S
