Delta AS Series - Basic Editing ─ Creating a Comparison Contact and Typing a Constant6-21

6.5.8 Basic Editing ─ Creating a Comparison Contact and Typing a
Constant

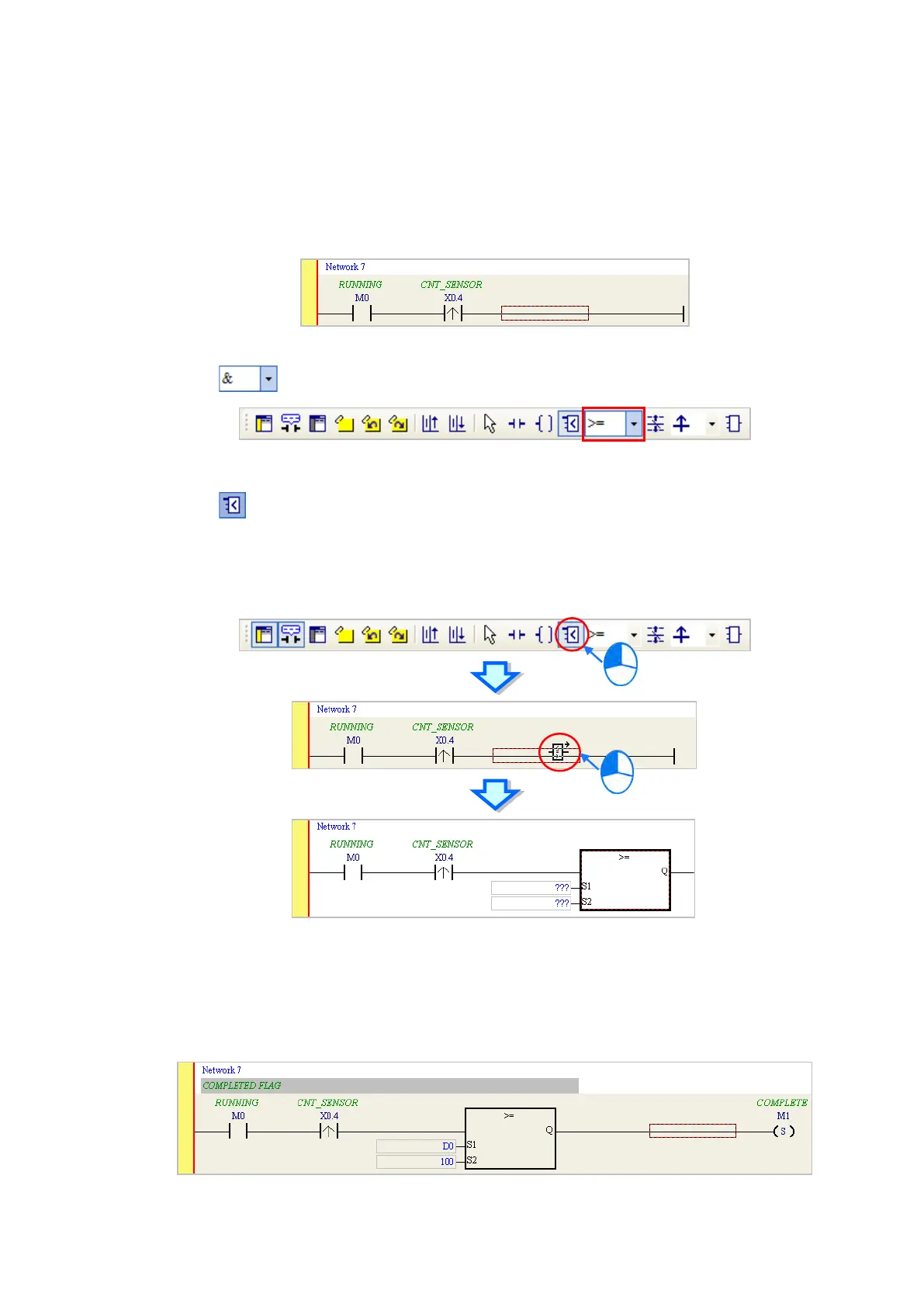

You can insert a comparison contact with the following steps. Add Network 7 under Network 6, and write
the program shown below.
(1) Click on the toolbar, and then select a operator (>= in this example).
(2) Click on the toolbar, and then move the mouse cursor to the position where you want to insert the
comparison contact. The mouse cursor changes to a comparison contact when you move the mouse to
the left, right, or bottom of the red frame. Decide where to insert the comparison contact, and then click
the left mouse button to insert the comparison contact.
Write the program shown below. In ISPSoft, K precedes a decimal value and H precedes a hexadecimal
value. To type a decimal value in ISPSoft, type it directly. To type a hexadecimal value in ISPSoft, type “16#”
and the hexadecimal value; e.g. 16#7FFF. In ISPSoft, 8# precedes an octal value, and 2# precedes a binary
value.
