8.1.2 Configuring a Module
8.1.2.1 Adding a Module

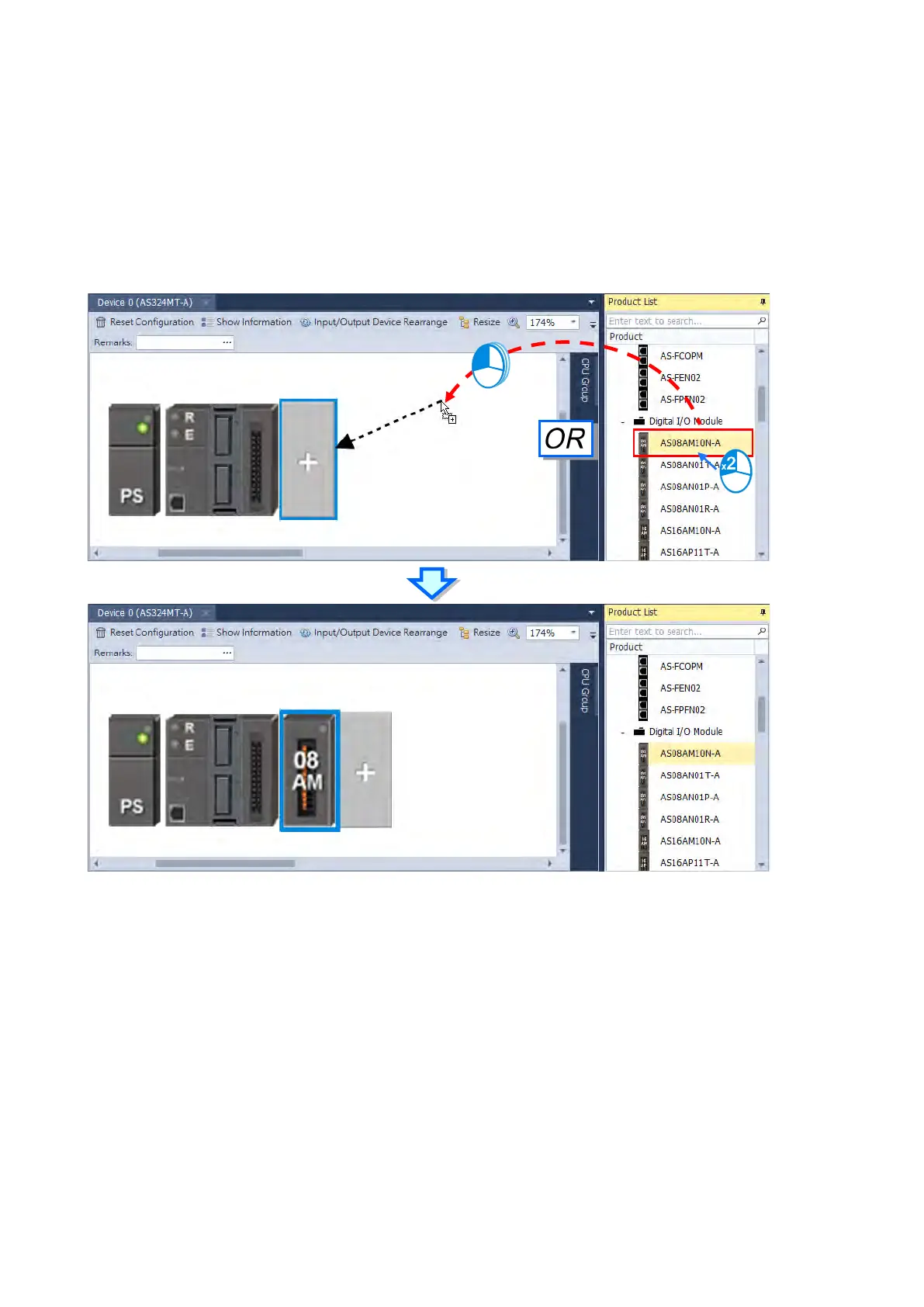

Method 1
Double-click the module you want to add in the project or select it from the
Product List
and drag that module to the
desired position. There will be a suggestive dotted line to indicate the legitimate position for the selected module.
