4.6.10 Wiring AS132T-A/AS148T-A/AS164T-A
Input form
Direct current (sinking or sourcing)
Input current/voltage
24 VDC, 5 mA
Output form
Transistor-T (sinking) (NPN)
Output
current/voltage
5 to 30 VDC, 0.5A/output, 2A/COM

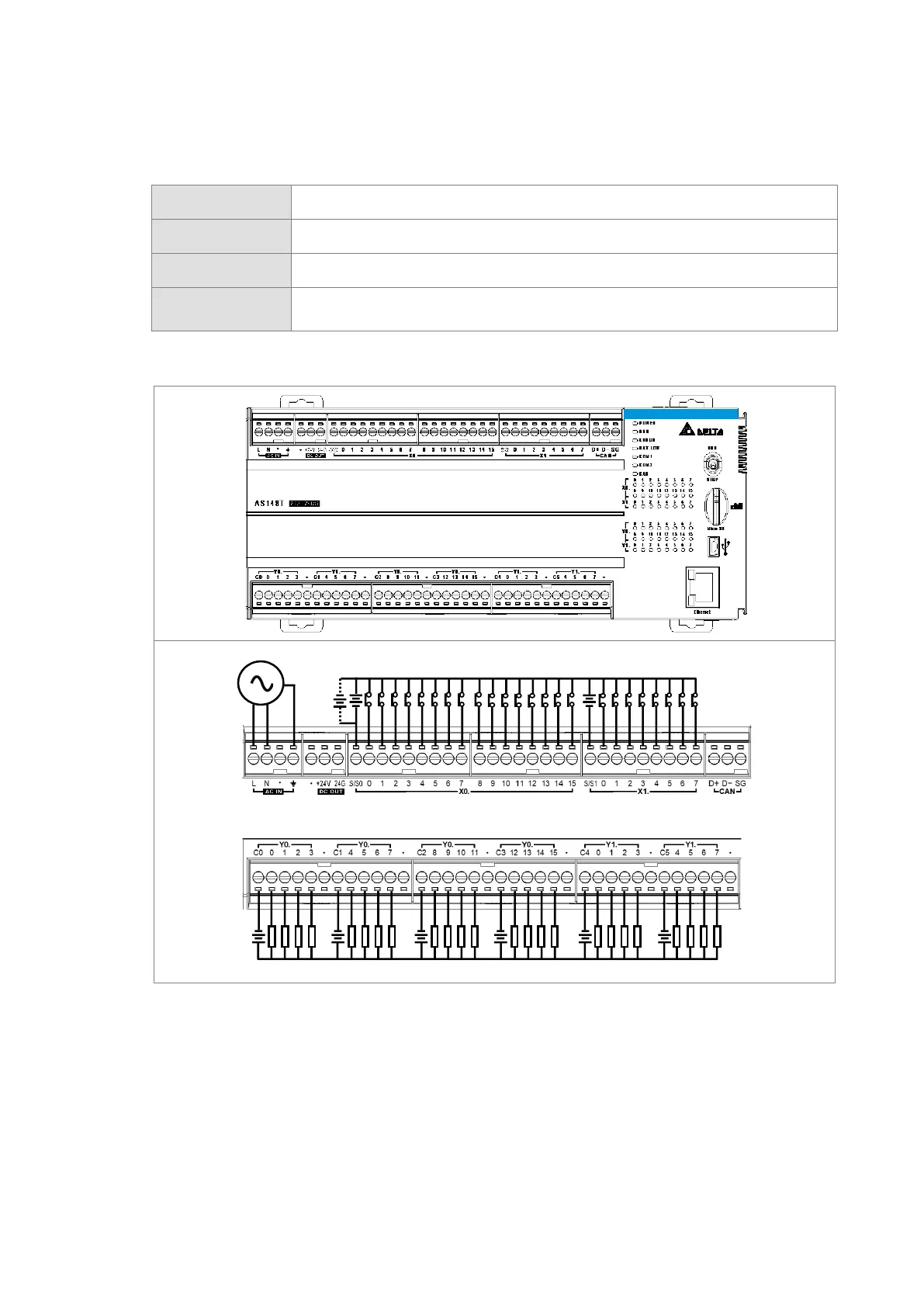

The following illustrations uses AS148T-A as an example. The wiring method is similar to AS132T-A and
AS164T-A.
