Delta AS Series User Manual

6.6.2 Downloading a Program and Parameters
If ISPSoft is correctly connected to a PLC, you can download the parameters and program in the project to the
PLC. First, start ISPSoft and open the project you created in the previous sections. In this example, you
download two types of parameters to the CPU module: hardware configuration and the program itself.

Downloading the hardware configuration

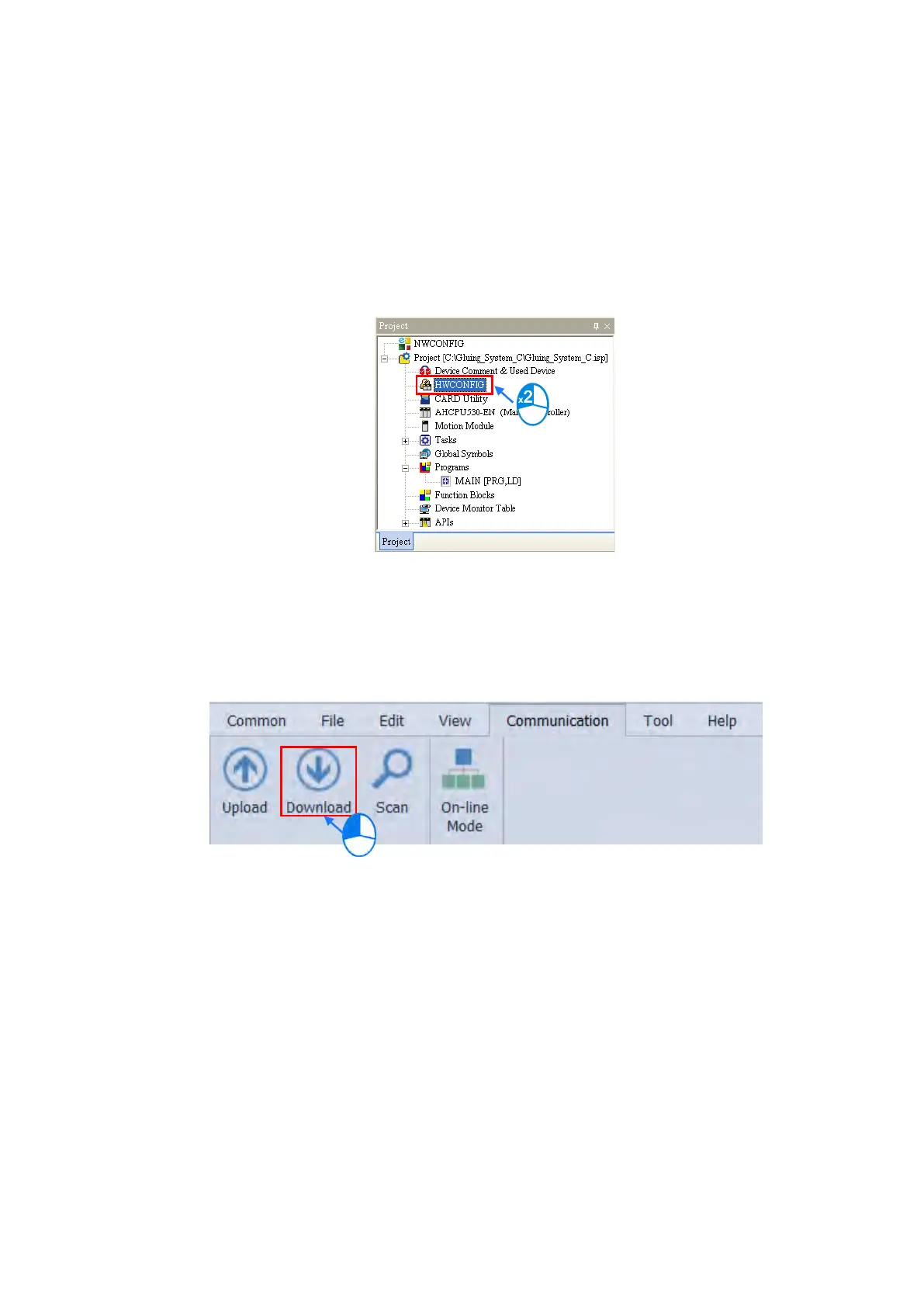

(1) Double-click
HWCONFIG
in the project management area to open the
HWCONFIG
window.
(2) The hardware configuration displays in the window. Before you download the hardware configuration
to the CPU module, make sure the actual hardware configuration is the same as the hardware
configuration in the window.
(3) Click
Download
under the Communication tab to see the Download page. Select the PLC
parameters that you’d like to download to the PLC and then click
OK
to download.
