13.3 Delta Drive Parameters Backup and Restore
This section uses ISPSoft for demonstration. For DIADesigner operation, refer to section 16.8 from DIADesigner software
manual.
Delta device parameters can be backed up and restored. This function allows you to backup and restore the device
parameters, including parameters of inverters and servo drives that are connected to the PLC CPU. You can backup the
device parameters for later use. If a device is not funcitoing, you can change to a new one and use the backup the
parameters to set up the new device quickly. Here we use AS Series PLC CPU as an example to backup and restore
Delta device paratmeters. Refer to EIP Builder User Manual for detailed information on operation of other series.
13.3.1 System Requirement
Software: ISPSoft V3.10 or later, EIP Builder V1.07 or later
PLC CPU: AS Series PLC firmware V1.08 or later
Drive: C2000 Series inverter firmware V2.06 or later
EIP Communicaiton Card: CMC-EIP01 firmware V1.08 or later
13.3.2 The Architecture Overview for Backup and Restore
Through EIP Builder, you can backup device parameters and store them in the SD card that is installed in AS Series PLC
CPU. For restoration, you can use HMI to manage the SR from AS PLC CPU to restore the drive parameters to the Delta
drive that is connected to the AS Series PLC CPU.
For AS300 Series PLC CPU, you can deloy back up and restoration for up to 16 Delta drives at the same time.
For AS100 and AS200 Series PLC CPU, you can utilize back up and restoration for up to 8 Delta drives at the same time.

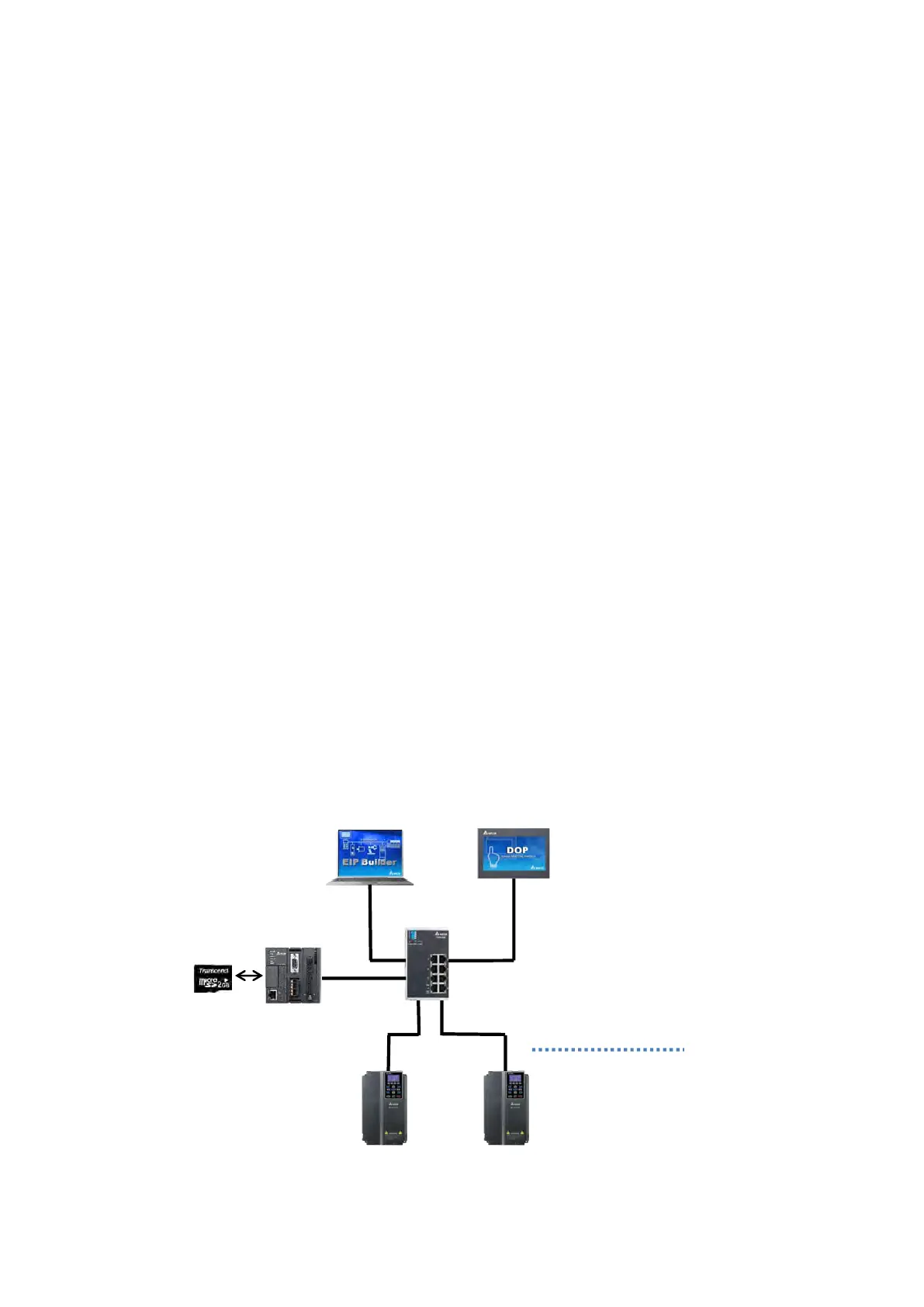

Find the architecture overview for back up and restoration below. Refer to Chapter 9 for details on the EtherNet/IP
operation.
AS300
192.168.1.11
C2000_No.1
192.168.1.9
C2000_No.2
192.168.1.10
Delta Driver
Ethernet Switch
Software
192.168.1.99
HMI
192.168.1.98
