5.3. Assigning I/O Addresses for Modules
This chapter explains how to assign input and output devices to an AS Series input/output module in ISPSoft.
For DIADesigner operation, refer to section 6.1 from DIADesigner software manual.
Using HWCONFIG in ISPSoft

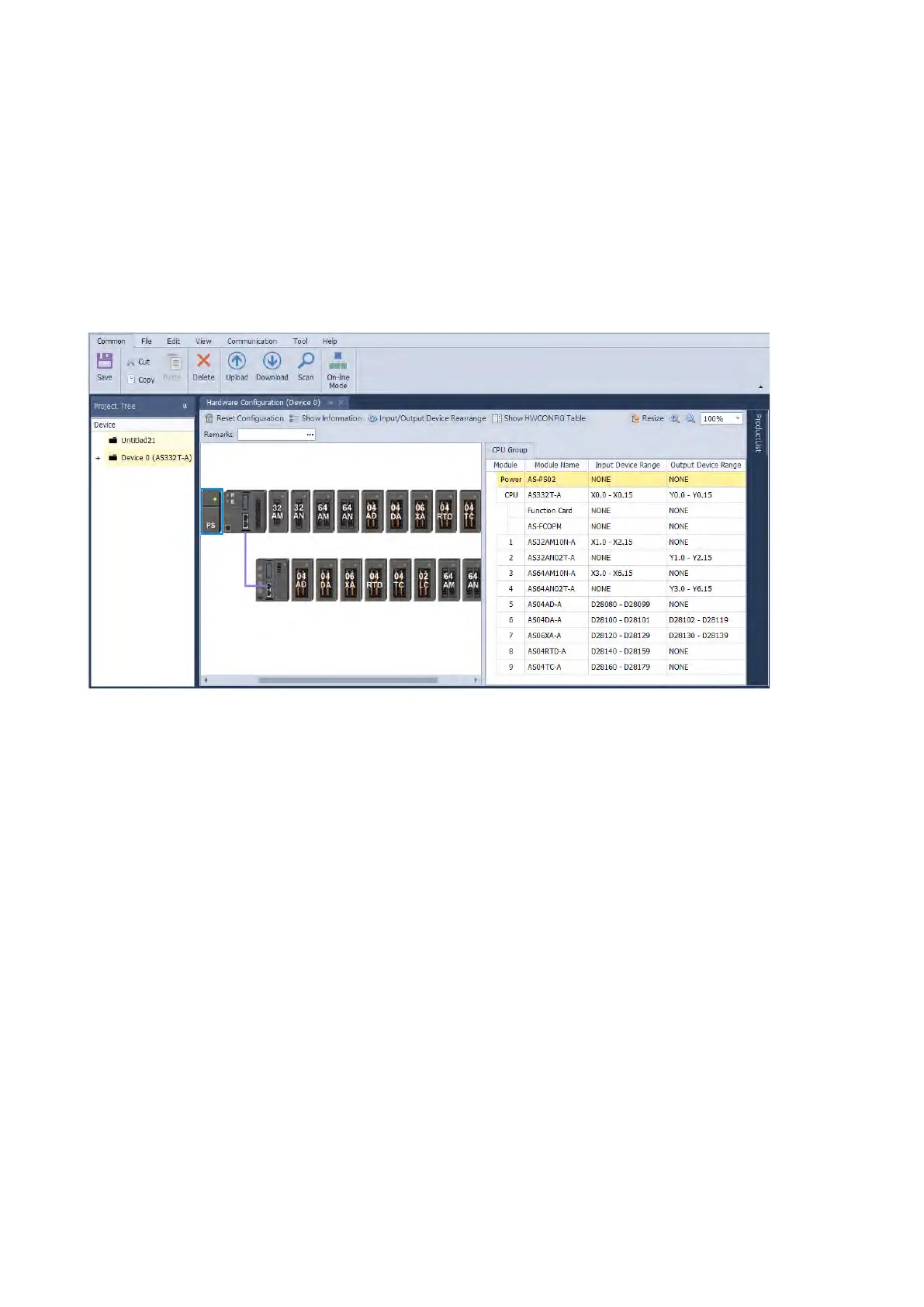

The following picture shows the HWCONFIG window in ISPSoft. Please refer to Chapter 8 for more
information on the hardware configuration.
 Module addresses defined by software
Through HWCONFIG, the system automatically assigns a starting address to every slot of an input/output
module in ISPSoft.
 Remote module addresses defined by software
You use HWCONFIG to assign a starting address to a remote module in ISPSoft. Double-click the CPU
module and select Function Card 2. Change the Card 2 Detect mode to Manual and then select AS-FCOPM
from the Manual Select Card. You can assign a starting address to the first remote module installed on the
right side of the I/O module slot. Then the following I/O modules are assigned addresses automatically and
consecutively.
