Delta AS Series User Manual

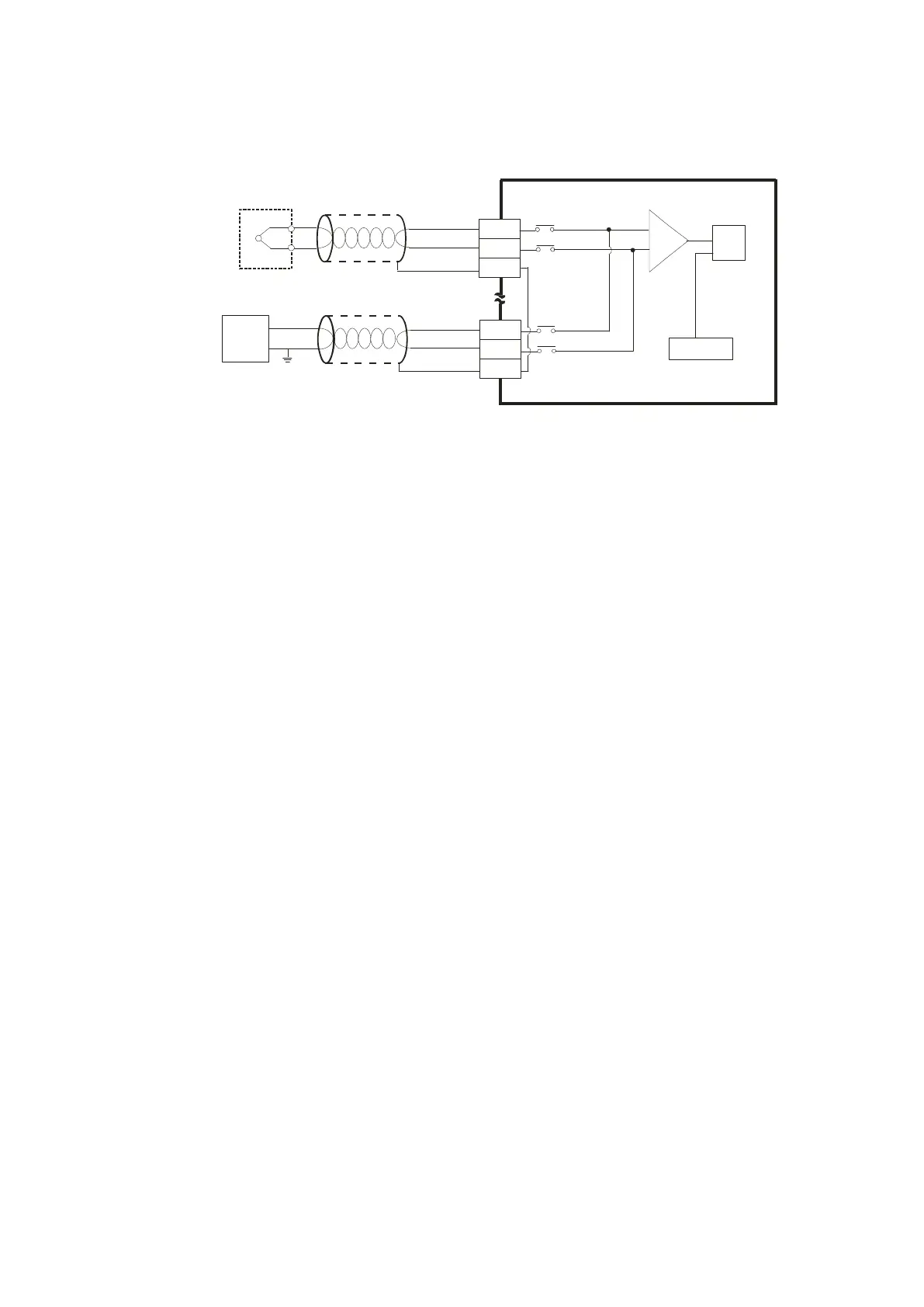

4.10.3 Wiring AS04TC-A / AS08TC-A
CH 1
+
-
Shielded cable 1*
I3+
I3-
CH3
Col d con ju nctio n-
com pe nsa tion
INA
ADC
+
-
J,K,R,S,T,E,N, B
-100m V~100mV
I1+
I1-
SLD
SLD
*1. The cable connected to the input terminal should be the cable or the shielded twisted pair cable connected
to a type J, K, R, S, T, E, N, B thermocouple. It should be kept separate from other power cables and cables
that generate noise.
Note1: do not wire empty terminals.
Note2: only use copper conducting wires with a temperature rating of 60/75°C and the length must be less
than 50 m.
Note3: TC modules must run for 30 minutes before they start to take any temperature measurement.
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
