Delta AS Series - Basic Editing ─ Selecting a Network and Operation

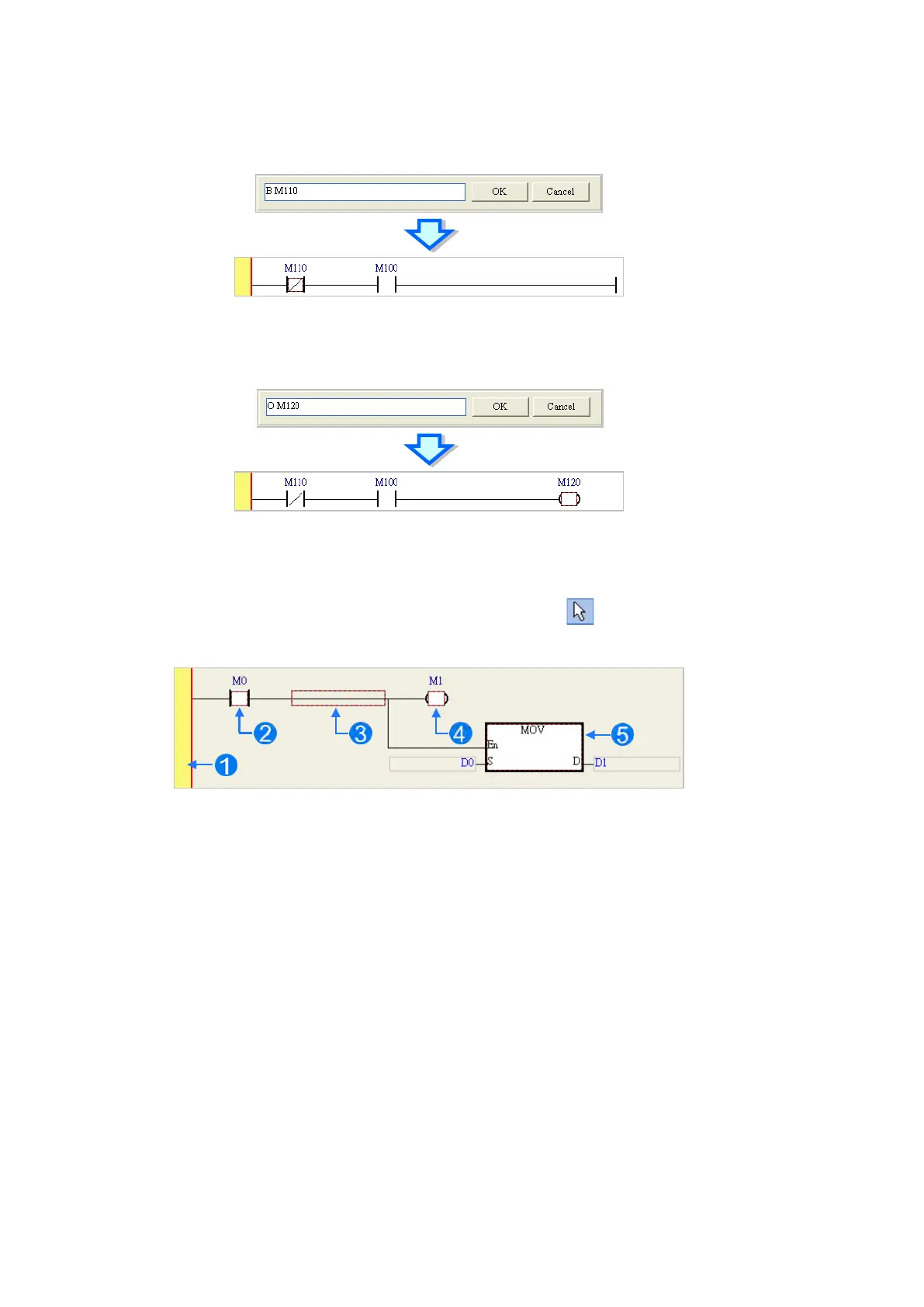

 To insert a normally-closed contact (contact B), type “B <device address>”
 To insert an output coil (OUT), type “O <device address>”
6.5.4
Basic Editing ─ Selecting a Network and Operation
Before you select an object in a network, press Esc on the keyboard, or click on the toolbar. After the
cursor appears as a small arrow, click the object in the network. The basic selection shows below.

Select the network

Select the input contact

Select the network

Select the output coil

Select the block
To select a group of devices, click a device and drag it to draw a frame around the group of devices. You can
also select the group of devices by clicking the first device, pressing Ctrl+B on the keyboard, clicking the last
device, and then pressing Ctrl+B on the keyboard. You must draw a frame around devices that are in the
same network, and the devices must be adjacent to one another. Input and output devices cannot be in the
same frame.
