Delta AS Series - Analog Input;Output Module Profiles

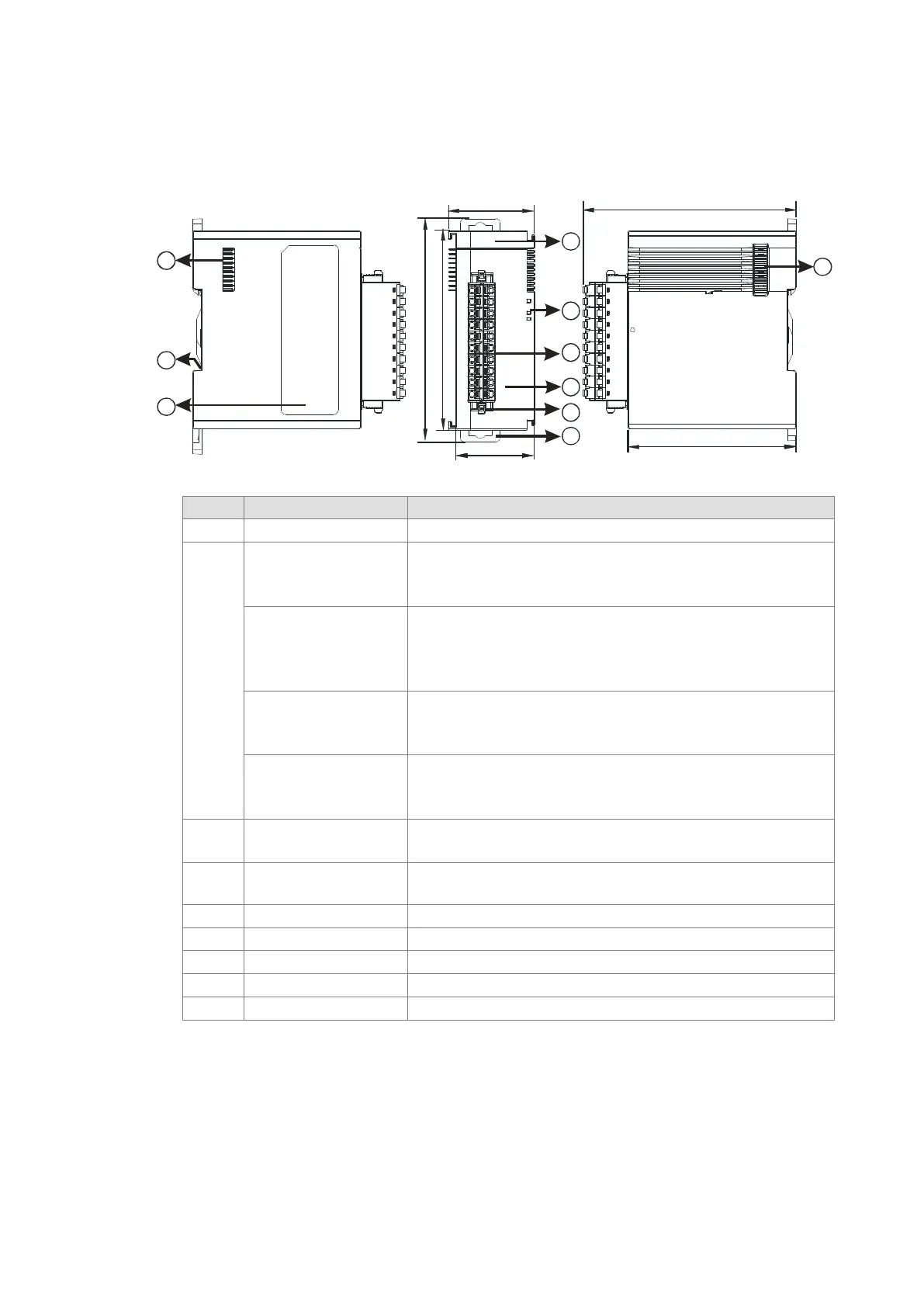

2.4.2 Analog Input/Output Module Profiles
 AS04AD-A/AS08AD-B/AS08AD-C/AS04DA-A/AS06XA-A/AS02ADH-A
38.2 95
75
35
88
98.3
-
-
1
4
5
2
3
6
7
8
9
7
Unit: mm
Number
Name
Description
1 Model name Model name of the module
2
POWER LED indicator
Indicates the status of the power supply
ON: the power is on
OFF: no power
ERROR LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
Input LED indicator
Indicates the status of the input point
ON: If there is an input signal, the input LED indicator is ON.
OFF: No input signal, the input LED indicator is OFF.
Analog-to-digital / digital-
to-analog conversion
indicator
Indicates the conversion status
Blinking: conversion is taking place
OFF: stop conversion
3
Removable terminal
block
The inputs are connected to sensors.
The outputs are connected to loads to be driven.
4
Arrangement of the
input/output terminals
Arrangement of the terminals
5
Terminal block clip
Removal of the terminal block
6
DIN rail clip
Secures the module onto the DIN rail
7
Module connecting set
Connects the modules
8 Ground clip
9 Label Nameplate
