Delta AS Series User Manual

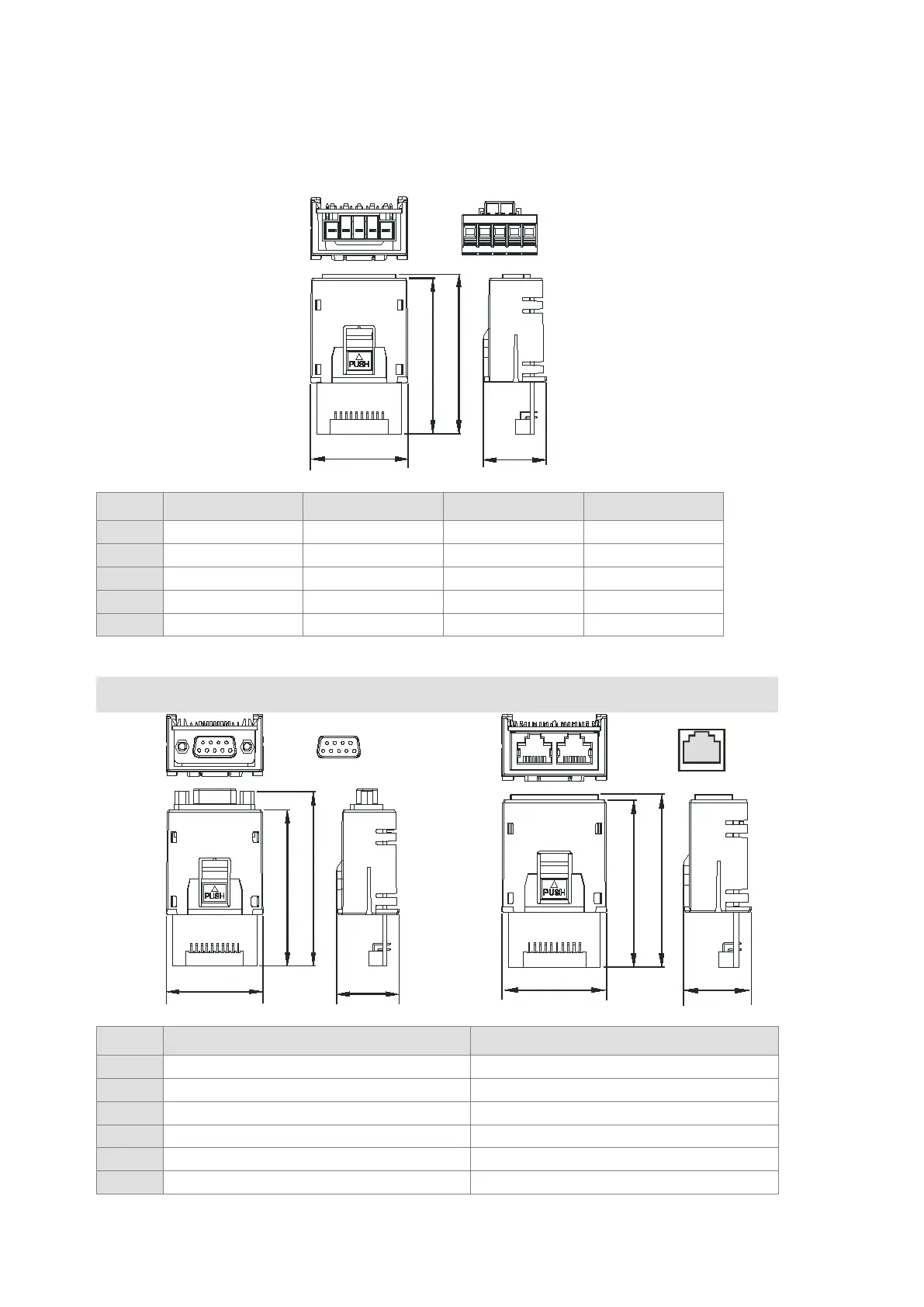

2.10.2 Extension Card Profiles
 AS-F2AD/AS-F2DA/AS-F422/AS-F485
37
23.9
59.3
60.8
1 5
Unit: mm
Pin no. AS-F2AD AS-F2DA AS-F422 AS-F485
1 V1+ VO1 R+ -
2 I1+ IO1 R- -
3 V2+ VO2 T+ D+
4
I2+
IO2
T-
D-
5
COM
COM
SG
SG
 AS-F232/AS-FCOPM
AS-F232 AS-FCOPM
37
23.9
59.3
66.3
1
5
6 9
61.3
37
59.3
23.9
1
2
3
4
5
6
7
8
1
8
Unit: mm
Pin no. AS-F232 AS-FCOPM
1
-
CAN_H
2
TX
CAN_L
3
RX
GND
4
-
-
5
GND
-
6-9 - -
