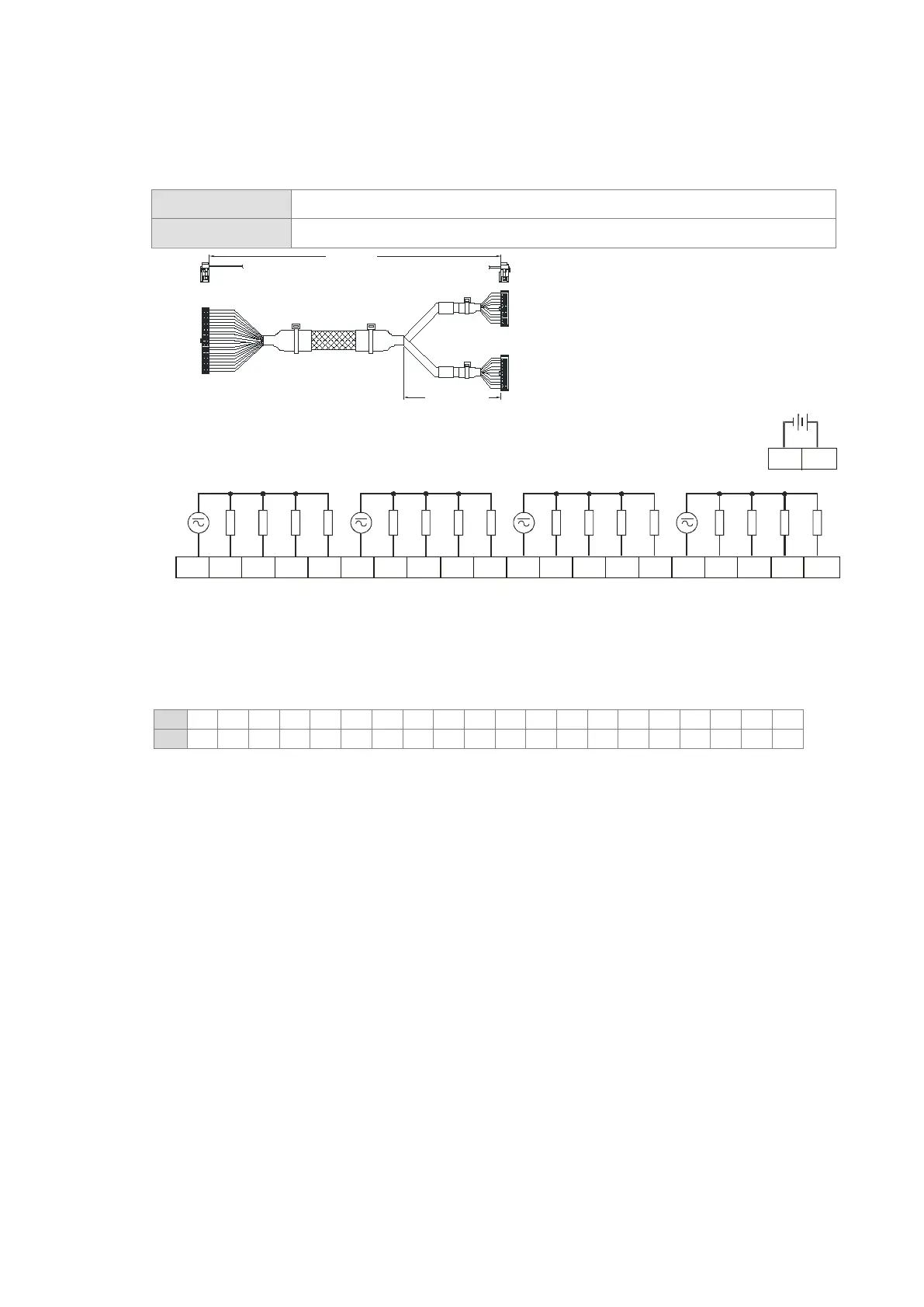

 Wiring the External Terminal Module UB-10-OR16A
For cables that can only be connected to the cables of group #1, see below.
Output form
Relay
Output voltage
Less than 250 VAC, 30 VDC
Length
UC-ET010-24D(1M)(28AWG)
UC-ET020-24D(2M)
UC-ET030-24D(3M)
(28AWG)
(28AWG)
Length:
39 40
1 2
500+10mm
-
19 20
1 2
19 20
1
2
#1
#2
Note: UB-10-OR16A can be used with AS Series and DVP Series. The indications on the UB-10-OR16A board
is for DVP Series. For the definitions of terminal connections for AS Series, you can see the reference table
below. Or refer to the enclosed sticker for AS Series.
AS
C0
Y0.0
Y0.1
Y0.2
Y0.3
C1
Y0.4
Y0.5
Y0.6
Y0.7
C2
Y0.8
Y0.9
Y0.10
Y0.11
C3
Y0.12
Y0.13
Y0.14
Y0.15
DVP
C0
Y0
Y1
Y2
Y3
C1
Y4
Y5
Y6
Y7
C2
Y10
Y11
Y12
Y13
C3
Y14
Y15
Y16
Y17
C0 Y0.5Y0.0 Y0.1 Y0.2 Y0.3 C1 Y0
.4 Y0.6 C3Y0.7
C2
Y0.8 Y0.9 Y0.10 Y0.11 Y0.12
Y0.14
Y0.15Y0.13
GND +24V
