Delta AS Series User Manual

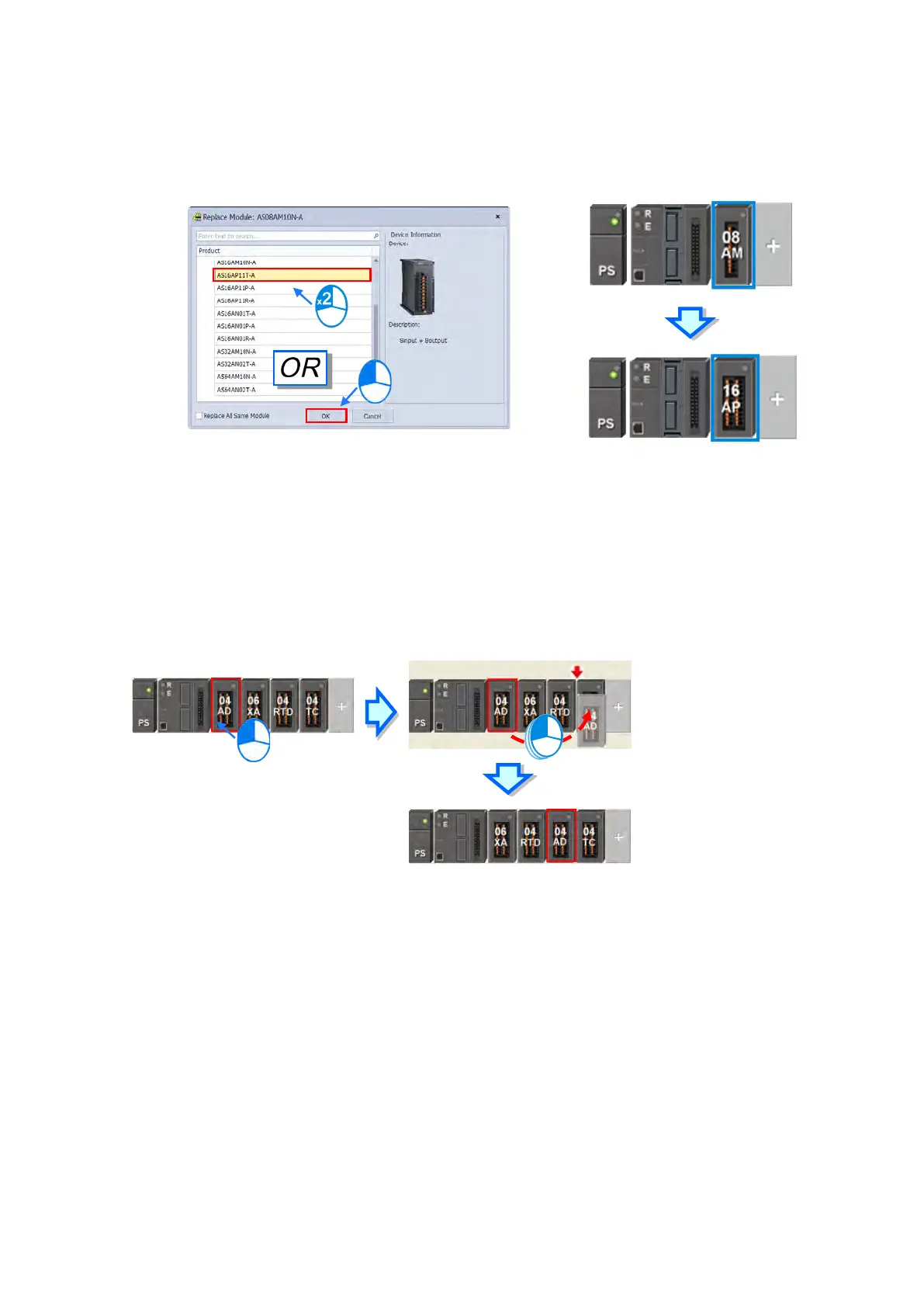

(3) Once the replace type is selected, the Module Selection window appears with modules available for the
selected replace type. Double click or select the module you want to replace with and click
OK
.
8.1.2.3 Rearrange Module Position by Drag and Drop
Except CPU modules, you can drag and drop all module graphics in Hardware Configuration area to rearrange their
positions.
AS Series PLC is non-backplane designed. When the module is dragged to a position between two modules, a red
arrow mark appears indicating the position where the module will be after dropping.
* When rearranging the module position, the input/output device range, comment, internal parameters, corresponding
device D and advanced parameters for intelligent modules are also rearranged with the module.
