Delta AS Series User Manual

and CANopen Communication Timeout.
You can define the times of trying to connect after a timeout occurs in
Auto Retry connection after Disconnected.
 All three AS-FCOPM working modes can set the
AS-FCOPM Bit Rate
.
Communication data sampling position:
It is suggested to select
Auto
, but if the communication with the slave
is unstable, you can select the data sampling position in percentage.
 When CANopen DS301 protocol is selected from the AS-FCOPM working mode box, you can set
DS301 PDO Data Exchanged: Start after power-on
or
Start after CPU running

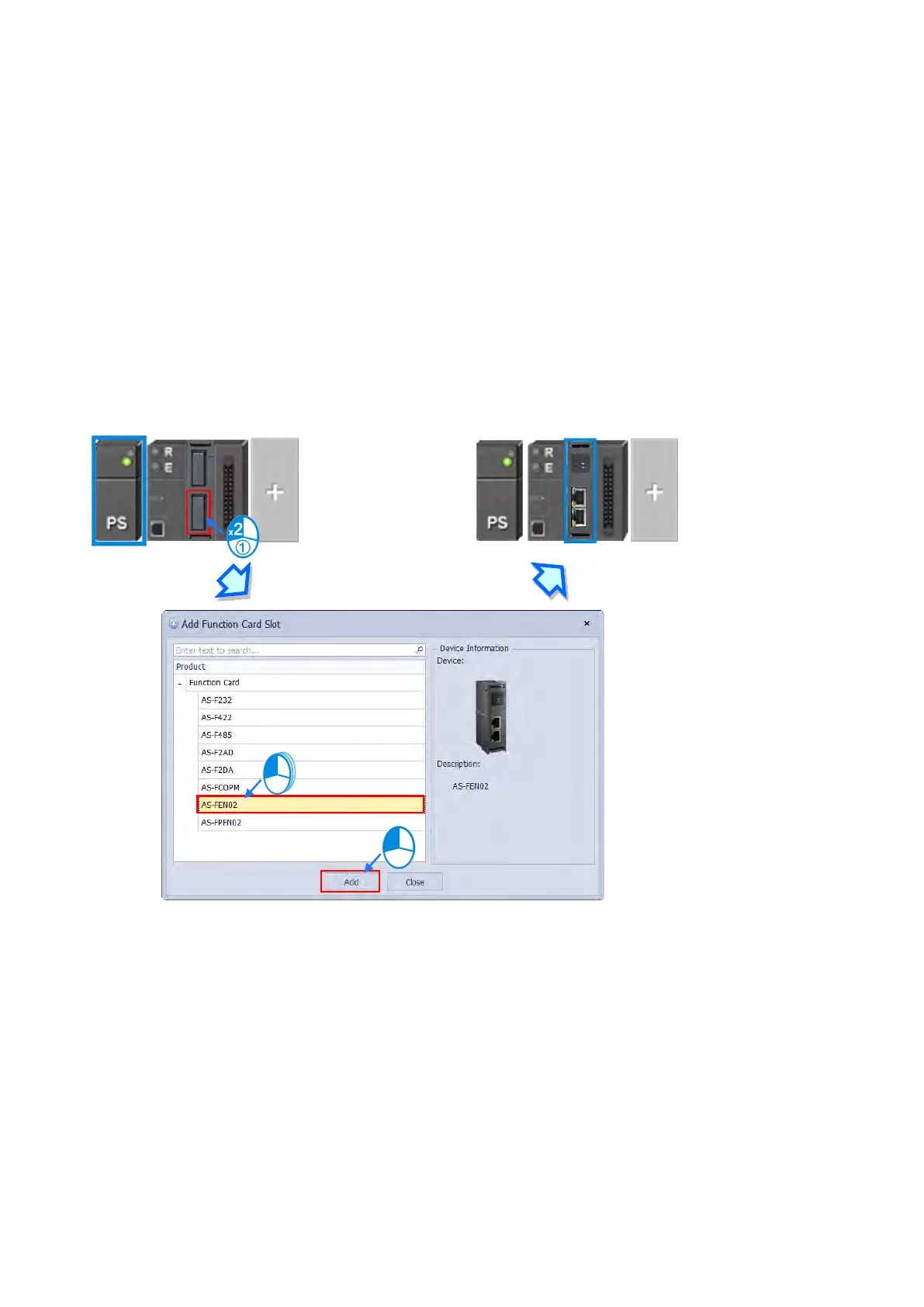

Insert AS-FPFN02, AS-FOPC02, AS-FEN02, or AS-FECAT by clicking the function card slot 2 and selecting the
inserted function card, as the image shown below.
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
