Delta AS Series User Manual

9.4.5.4 I/O Parameters

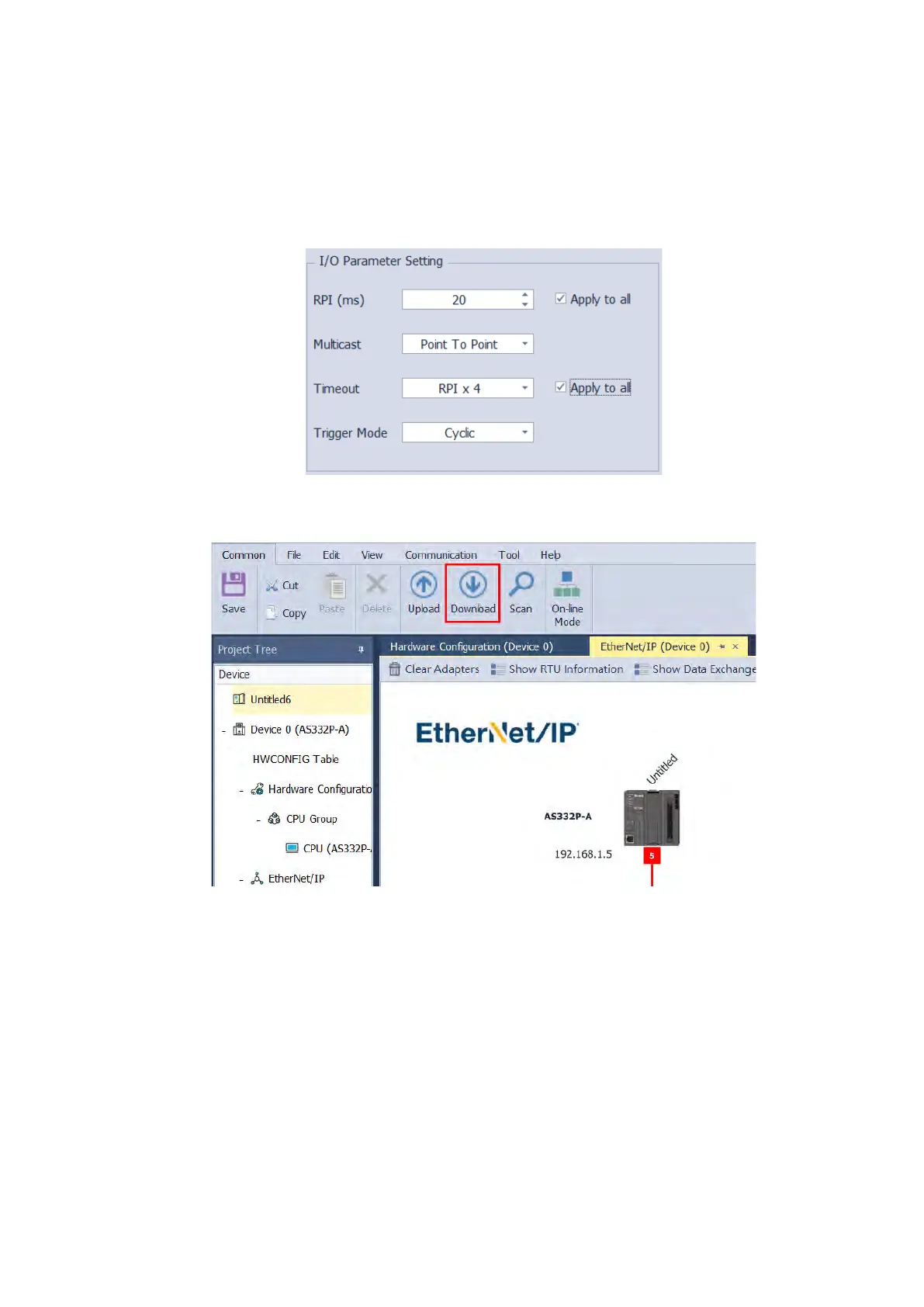

 Click Data Exchange tab and click the Data Exchange device. After that click Edit to open the data exchange
setting page.
 Set the data exchange interval time in RPI to have Scanner and Adapter to exchange data at a regular time interval,
for example, every 20 ms.
9.4.5.5 Download Parameters
 Click Download on the tool bar of the EtherNet/IP page to open the Download setting page.
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com
Send Quote Requests to info@automatedpt.com
Call +1(800)985-6929 To Order or Order Online At Deltaacdrives.com

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
