 The following example describes the corresponding motion state and path throughout the gear operation.

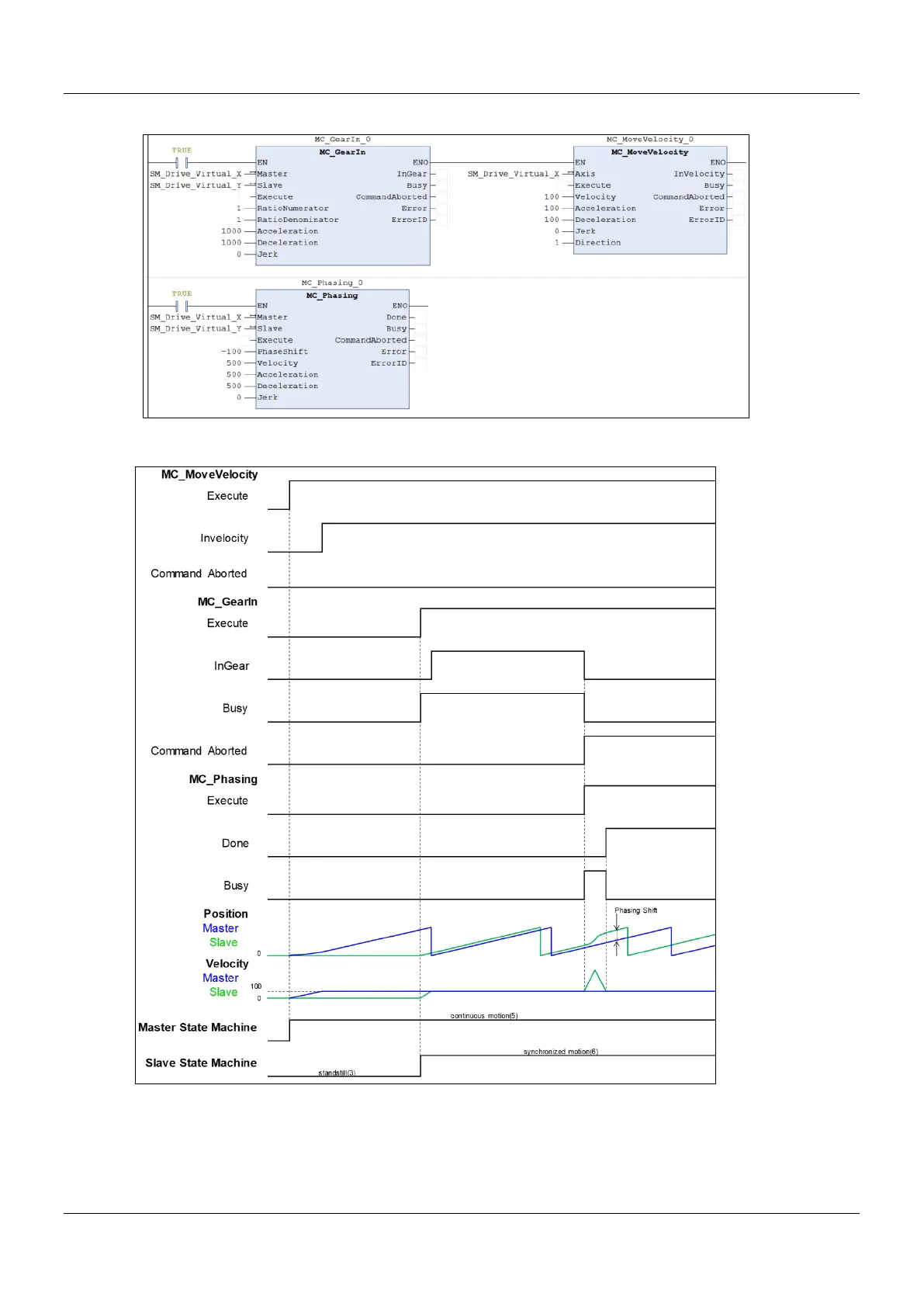

 Timing Diagram
 Execute MC_MoveVelocity to make the master axis run at a constant speed, then execute MC_GearIn to establish
gear relationship between the master and slave axis.
 When Execute of MC_Phasing turns to True, the relationship between the two axes will be disconnected.
MC_Phasing turns the phase of the slave axis by the specified PhaseShift value.
