AX-Series Motion Controller Instructions Manual Chapter 2
114

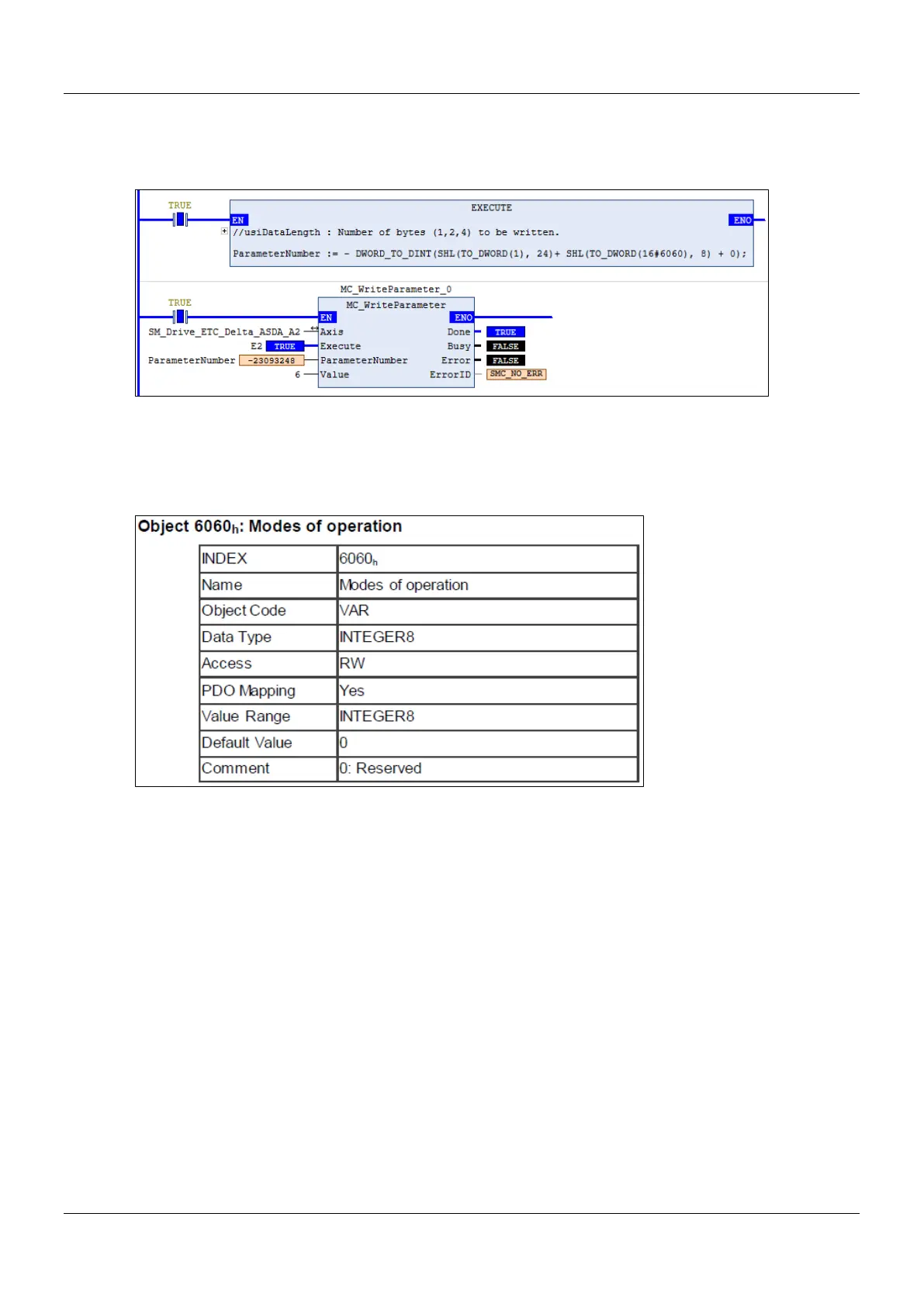

 Example
 This example demonstrates how to use MC_WriteParameter to write the value to the object 0x6060(operation mode)
in the drive.
 Input the data length, index, and subindex of the object to the above formula and you’ll get the ParameterNumber,
which should be entered into the ParameterNumber input. After the value is written to MC_WriteParameter
successfully, the control mode of the drive will change to 6.
 The following figure shows the information related to the parameters of object 0x6060

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
