AX-Series Motion Controller Instructions Manual Chapter 2
282

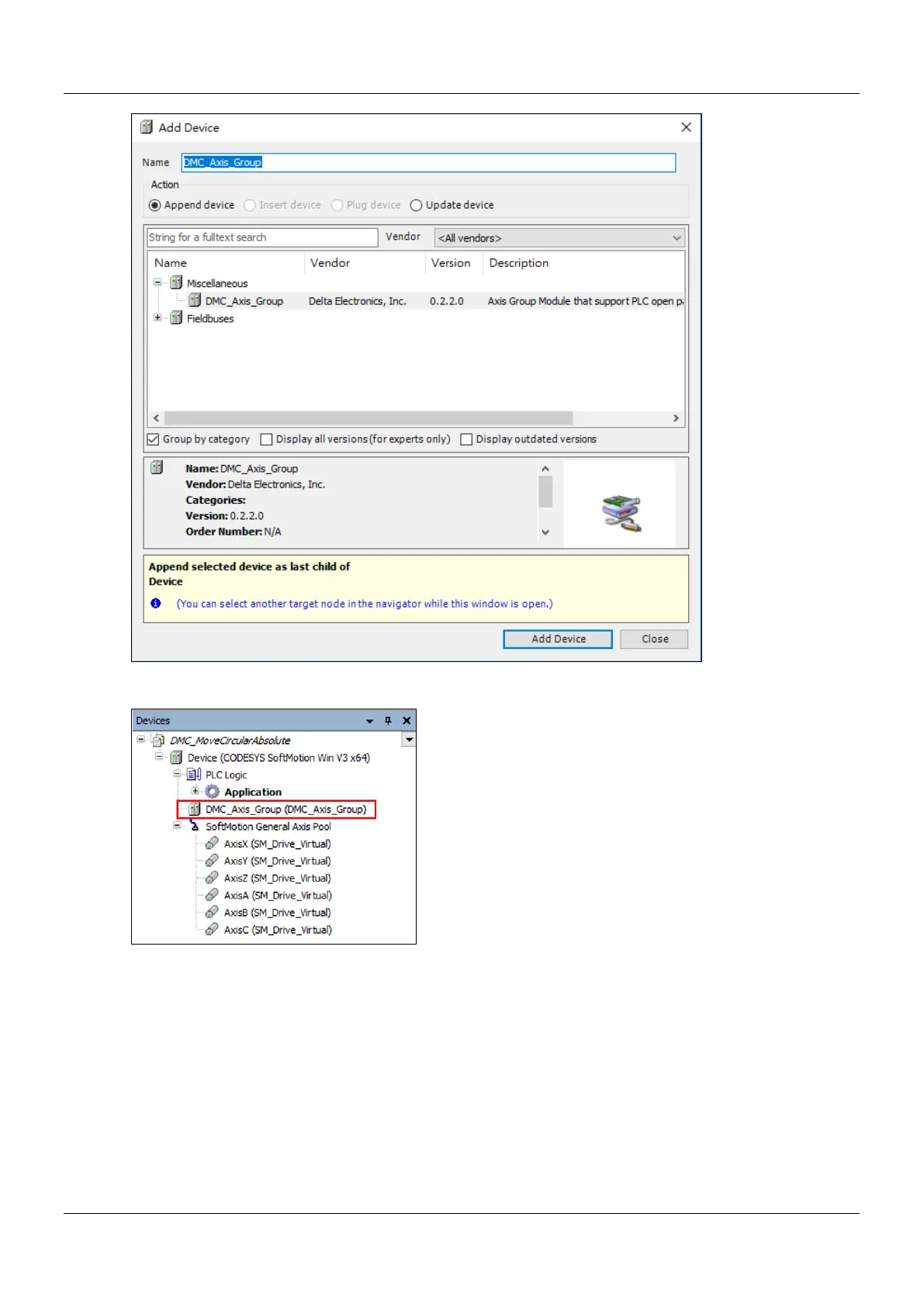

 Once DMC_Axis_Group (DMC_Axis_Group) appears in Device, it indicates that adding the axis group is successful.
 Click DMC_Axis_Group setting page and then select AxisGroup Parameters item. In the Parameter column,
AxisX~AxisC represent axes 1 ~ 6 in the axis group. Fill in the value field of the Axis X ~ Axis C with the names of the
previously created virtual axes “AxisX” ~ “AxisC”, as shown in the red box below. The axis group in this example uses
6 axes, AxisX, AxisY, AxisZ, AxisA, AxisB and AxisC.
