Delta AX Series User Manual

AX-Series Motion Controller Instructions Manual Chapter 2
307
Name
Function
Data Type
Output range (Default Value)
bStatus6
The status of the tappet specified by
iTrackID6.
BOOL True/False (False)
bStatus7
The status of the tappet specified by
iTrackID7.
BOOL True/False (False)
bStatus8
The status of the tappet specified by
iTrackID8.
BOOL True/False (False)
*Note: DMC_ERROR: Enumeration (ENUM)
 Output Update Timing
Name Timing for shifting to True Timing for shifting to False
bValid
 When bEnable turns to True.

When bError turns to True.

When bEnable turns to False.
bBusy

When
bEnable
turns to True.

When bError turns to True.
bError

When an error occurs in the execution
conditions or input values for the instruction.
 When bEnable turns to False.
ErrorID
bStatus1
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus2
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus3
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus4
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus5
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus6
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus7
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.
bStatus8
 When the status of the specified tappet is True.

When the status of the specified tappet is
False.

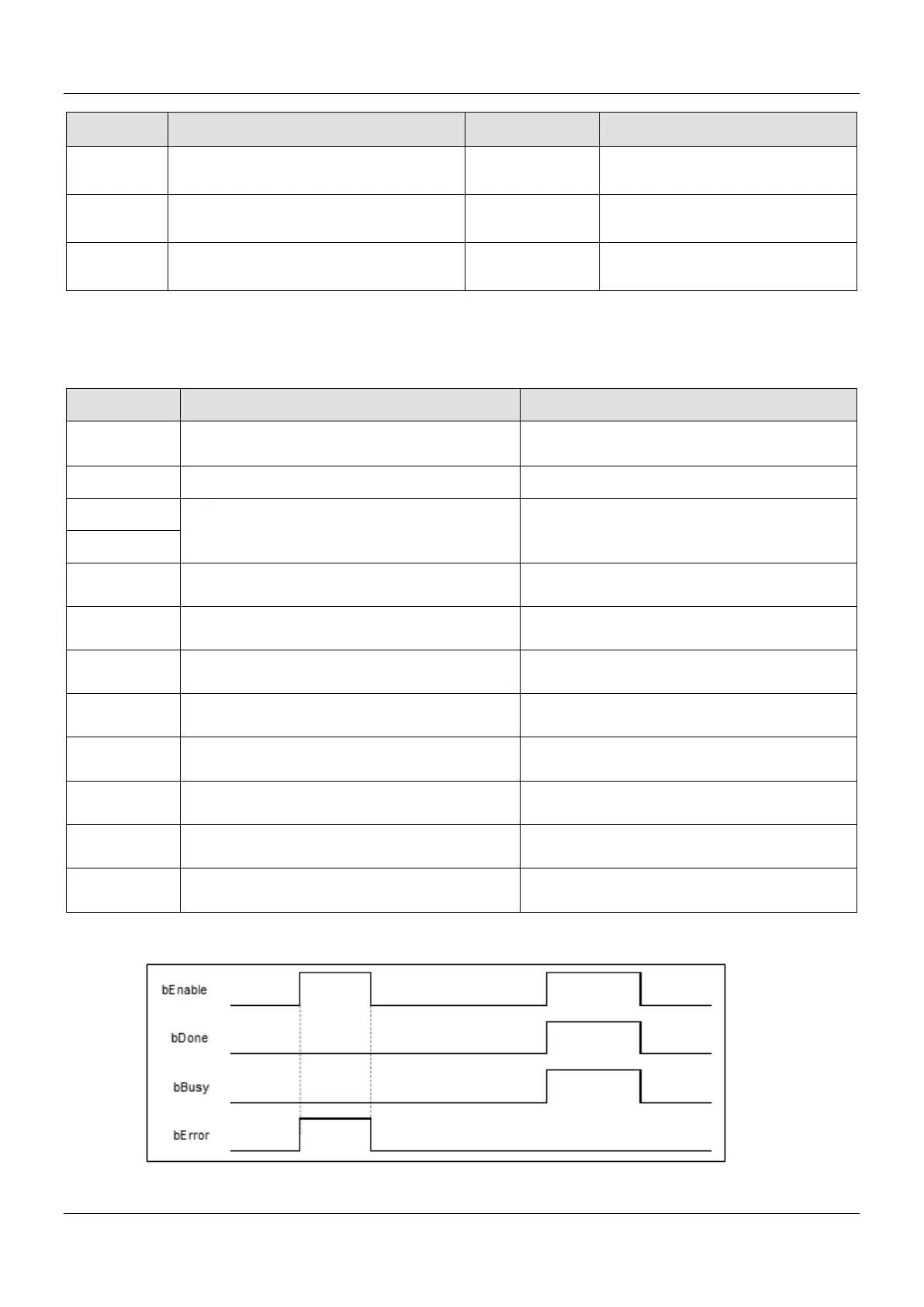

 Timing Diagram
