AX-Series Motion Controller Instructions Manual Chapter 2
319

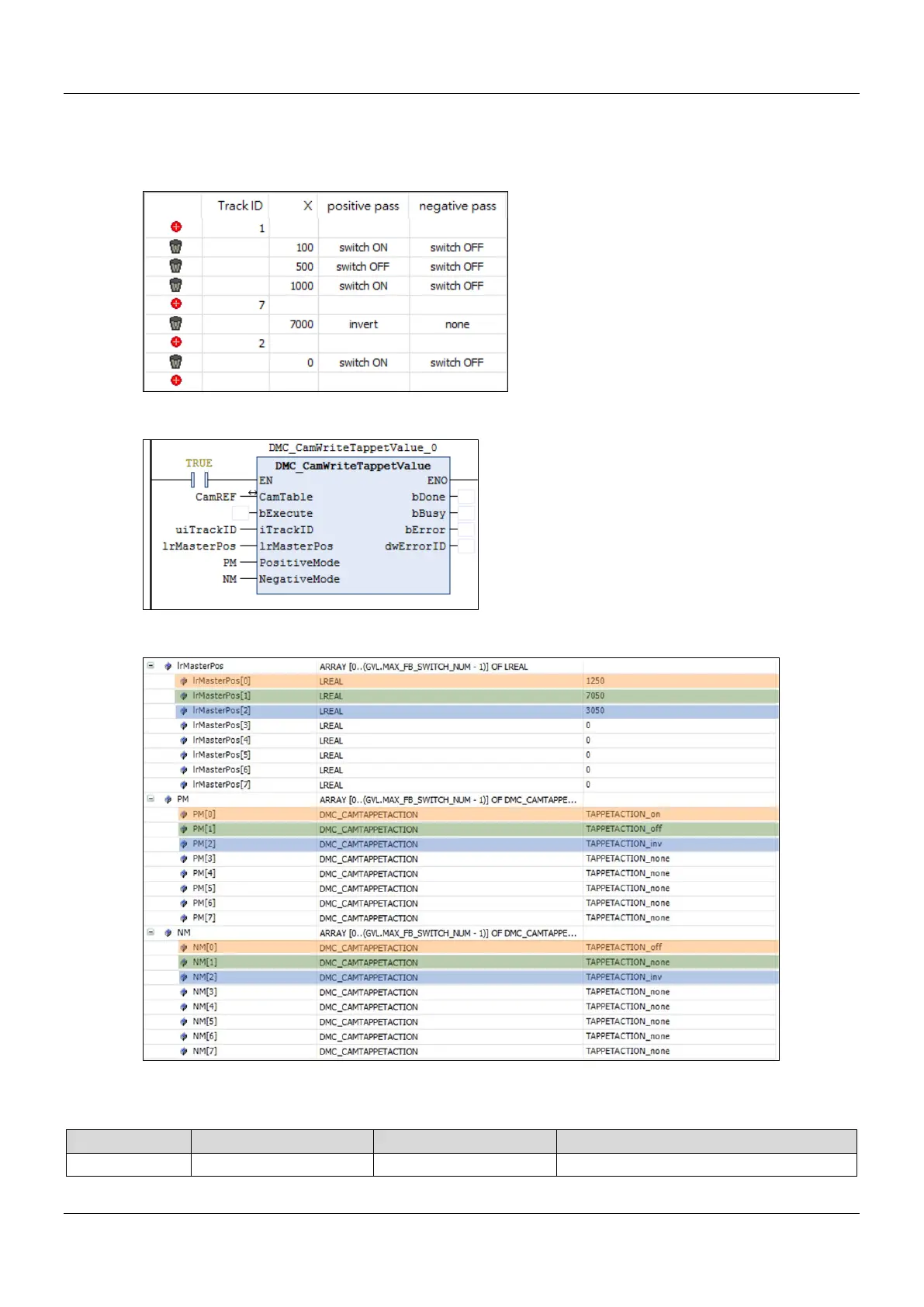

 Programming Example
 The example explains the action principle for DMC_CamWriteTappetValue by writing the tappet data of Track ID 1.
 Initial setting for tappet points
 Function block setting
 Input 1 for uiTrackID. Refer to the figure below for the setup of IrMasterPos, PositiveMode and NegativeMode.
 The tappet table before the function block is run
Track ID
Master axis position
Direction
Passing mode
1
100
Negative
TAPPETACTION_off
