 Output Update Timing
Name
Timing for shifting to True
Timing for shifting to False
bDone
 When the single axis is added.

When bExecute turns to False.

When bError turns to True.
bBusy
 When bExecute turns to True.

When
bDone
turns to True.
 When bError turns to True.
bError  When an error occurs in the execution
conditions or input values of the
instruction.

When bEexcute turns to False. (Error Code is
cleared)
ErrorID

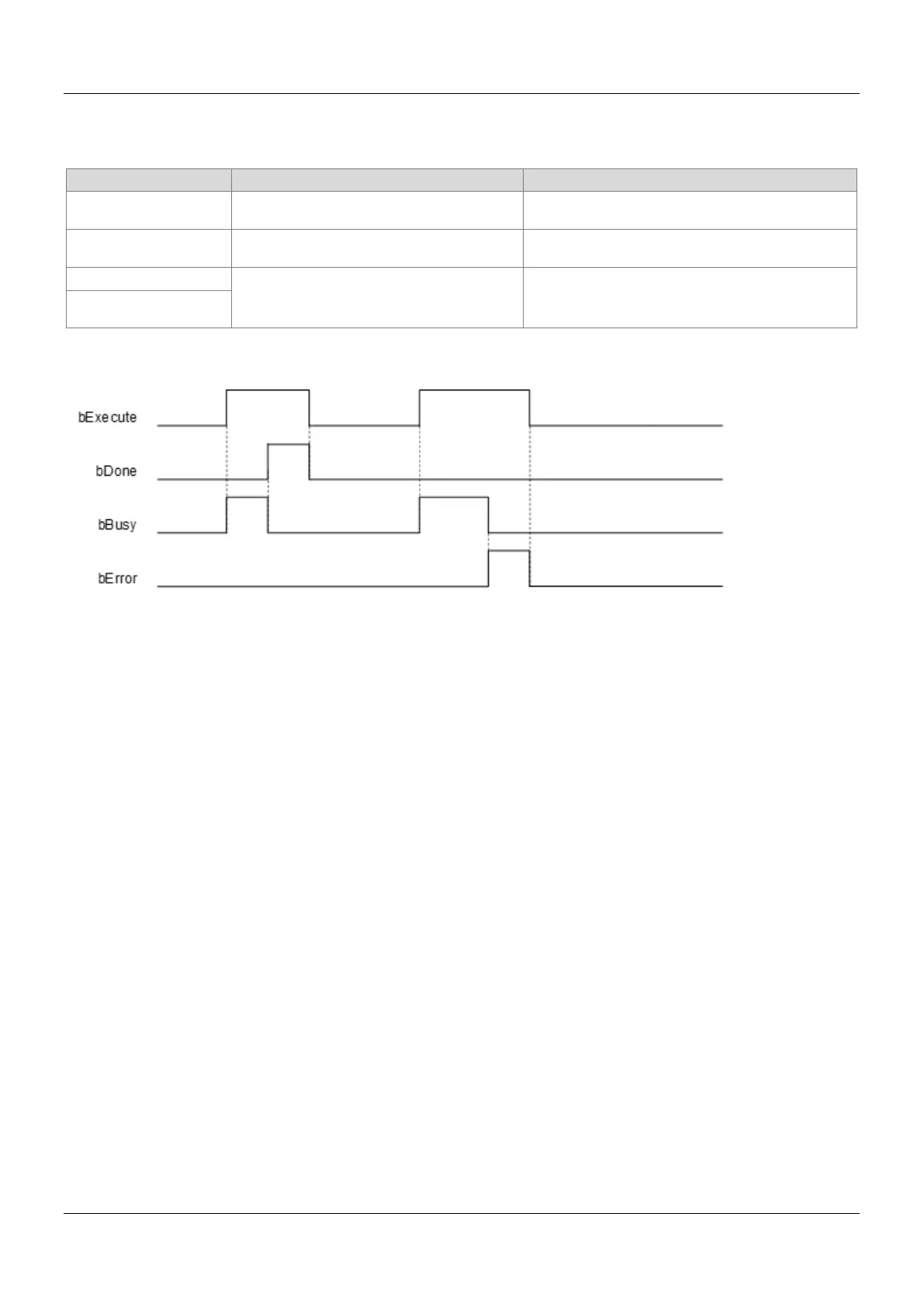

 Timing Diagram

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
