Delta AX Series User Manual

AX-Series Motion Controller Instructions Manual Chapter 2
489
Error Code Description Contents Corrective Action
0
No Error
-
-
1
Invalid
machine
parameters
Invalid electromechanical parameters
were set
Check if these values are within the range
 MachParameters.lrRLength
 MachParameters.lrLLength
 MachParameters.lrSPMsys
2
Invalid slider
height
Incorrect range of slider height was set
Check if the values are within the range
 lrHeightStart

lrHeightEnd
3
Invalid time
percentage
Invalid time percentage was set (0% or
sum of time percentage exceeds
100%)
Check if the values are within the range
 lrT1percent
 lrT2percent
 lrT3sec
 lrT4percent

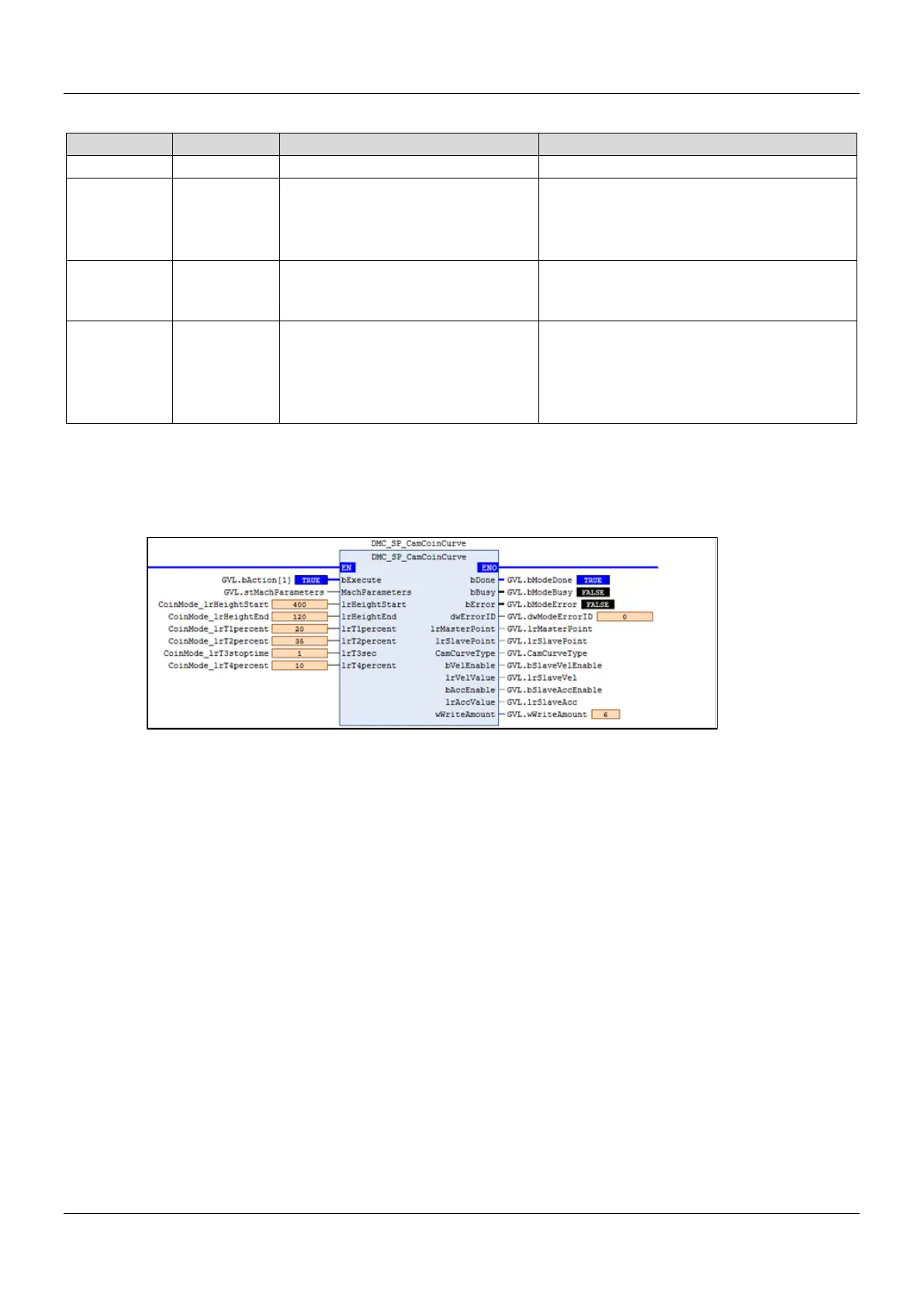

 Sample Program
 Set MachParameters.lrLlength=900, MachParameters lrRlength=300, lrHightStart=400, lrHightEnd=120,
lrT1_percent=20, rT2_percent=35 lrT3_StopTime=1, lrT4_percent=10
 Set bExecute from False to True to trigger curve key-points calculation. Once calculation completes, bDone will be
True, and generate related key-points array.
