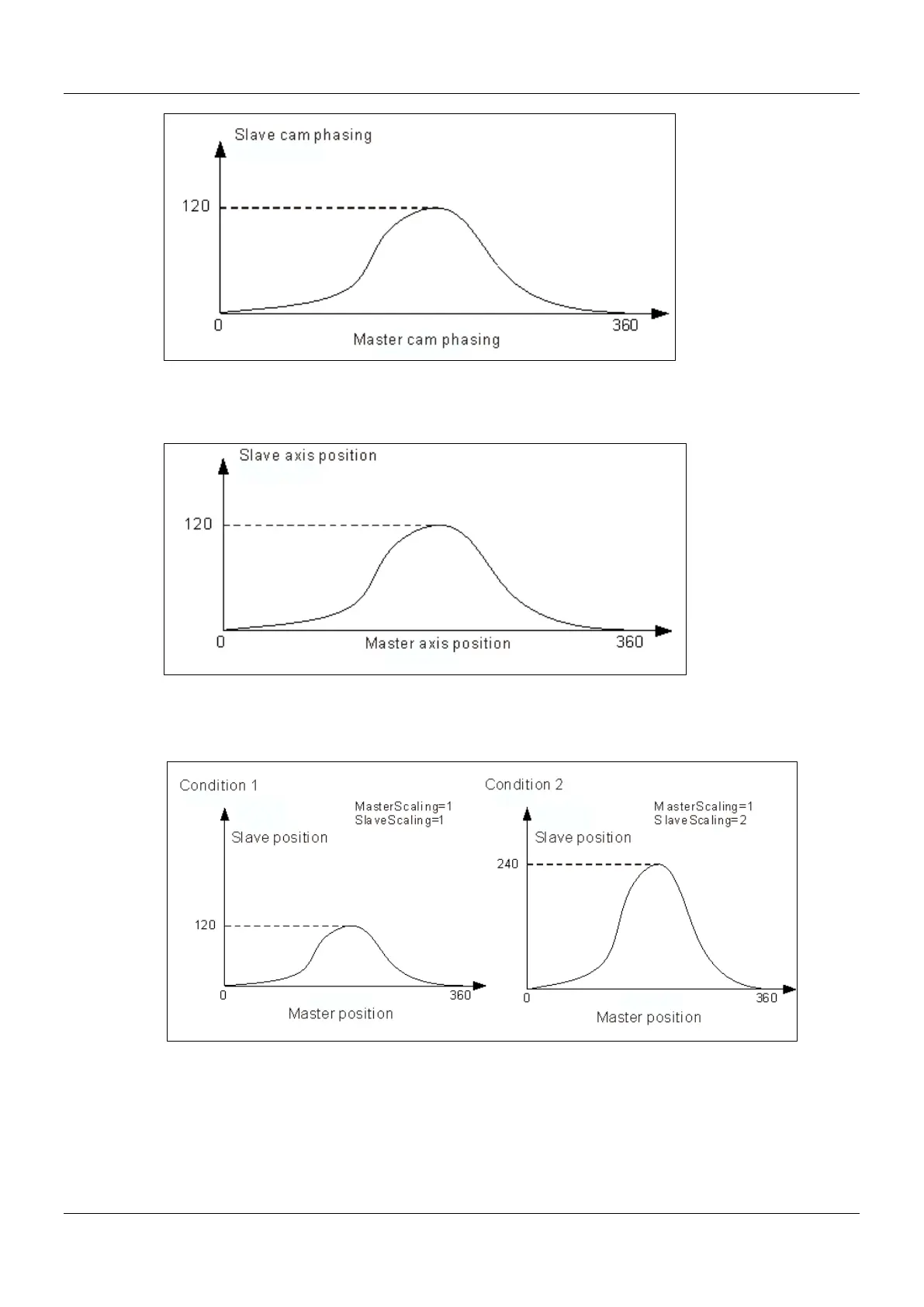

 If the master and slave axis are under absolute mode, the start position of master and slave axis will be zero
while performing meshing action. Without any compensation and scaling (default setting), the relationship
between the actual positions of master and slave axis are shown below.
 When the position compensations and scaling are not set as default, impacts on the relationship between the
actual positions of master and slave axis are shown below.
1. When MasteCompensation= 0, the impact of MasterScaling and SlaveScaling on the actual cam profile.
